0.3-0.8mm Thickness Panel Roof Glazed Tile Roll Forming Machine With 16 Forming Station

Categories Glazed Tile Roll Forming Machine
Brand Name: HC
Model Number: HC38-250-750
Certification: ISO/CE
Place of Origin: Botou Hebei China
MOQ: 1set
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month
Delivery Time: 30days
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Weight: 3000kg-20000kg
type: glazed tile roof sheet
control system: PLC control
raw material width: 1250mm
raw material thickness: 0.3-0.6mm
Warranty: 12 months after shipping
Voltage: 380V,50HZ,3phase
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

0.3-0.8mm Thickness Panel Roof Glazed Tile Roll Forming Machine With 16 Forming Station

Quick Detail:

1. Suitable to process: Color steel plate

2. Width of the plate: 1250mm

3. Rollers: 16 rows

4. Dimensions: 8.3m*1.55m*1.51m

5. Power: 7.5kw

6. Rolling material: high grade 45# steel(plated chrome on surface)

7. Thickness of the plate:0.3-0.8mm

8. Voltage: 380V 50Hz 3phases

9. Material of the cutting plate: Cr12

10. Processing precision: Within 1.00mm

11. Control system: PLC control

Description:

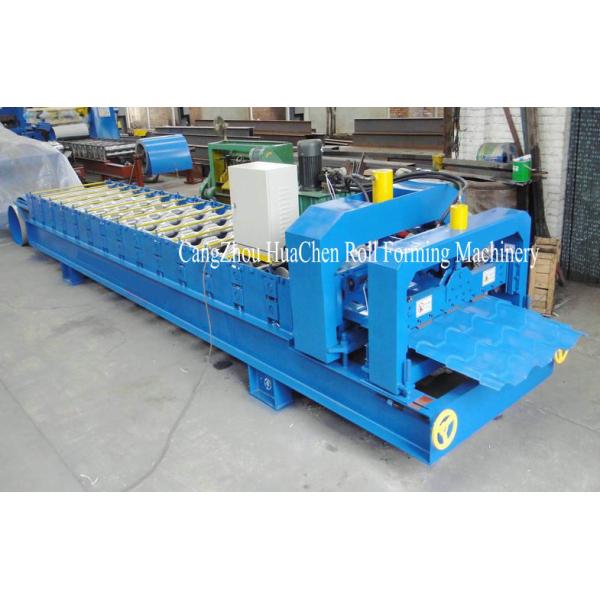

Composition of machine
Roll forming main machine……………………………1 unit
Cutting system………………………………………..1 unit
Pressing system………………………………………1 unit
Manual de-coiler……………………………………… 1 unit
Control panel…………………………………………..1 unit
Hydraulic station…………………………………… …1 unit
Manual out table……………………… ……………….2 unit
Spare tools……………………………………………...one box

Applications:

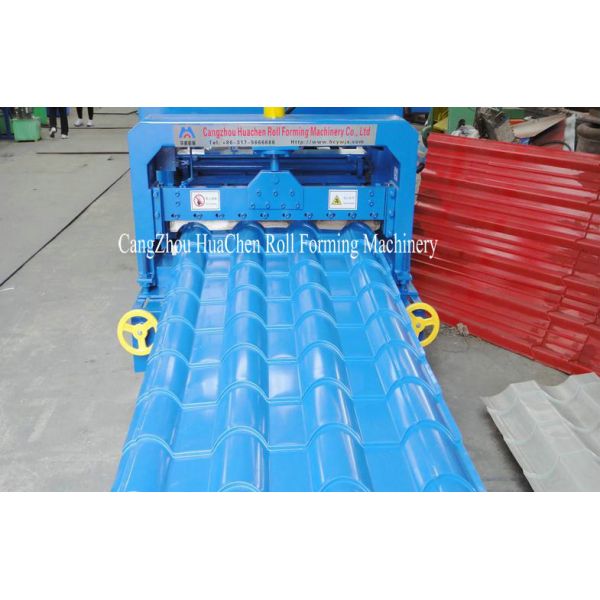

The Roofing tile roll forming machine design allows for the production of traditional tile panels and fastened tile panels. The step width and depth can be varied via the touch screen control. It produces a profile that has an adjustable depth and an adjustable reveal that gives panels the true appearance of clay tiles. This machine can produce through fastened panels in steel. It is capable of forming two different roof tiles with the same tooling, creating a perfect, scrape-free finish.
Specifications:

1NAMEGlazed roll forming machine made in china
2APPLICATIONRoll forming machine used for producing metal roof panel
3MATERIAL SPECColored steel sheet,galvanized steel sheet, aluminium sheet
4THICKNESS OF COIL0.3-0.8 mm

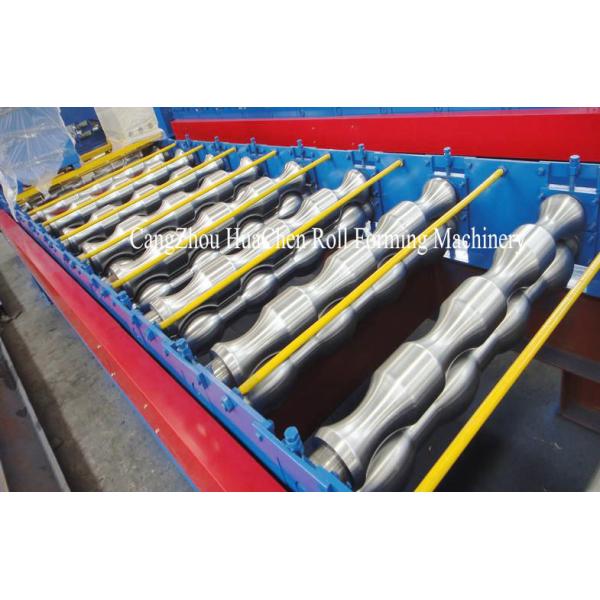

5ROLLER MATERIALHigh grade NO.45 forged steel, with hard chrome plating on the surface of roller with thickness 0.05 mm
6SHAFT MATERIALHigh grade NO.45 carbon wrought steel
7CUTTING BALDECr 12 mould steel with quenched treatment
8DIAMETER OF SHAFT70mm
9THICKNESS OF MEDIUM PLATE14mm
10MAIN FRAME300 H-steel
11NUMBER OF FORMING STEPS16 rows
12PRODUCTIVITY3-8 m/min
13MAIN MOTOR POWER7500w
14HYDRAULIC STATION POWER3000w
15HYDRAULIC PRESSURE10-12 MPa
16CONTROLLING SYSTEMPLC computer control
17APPEARANCE SIZE8.3m*1.55m*1.51m
18TOATL WEIGHT6600 kg
19VOLTAGE380V 3 Phase or up to you
20COLORBlue or green
21PACKINGWaterproof package



Competitive Advantage:
One roofing tile roll forming machine only can produce one profile, we can manufacture as per customer

provided drawings or real objects of sectional materials, customization is welcome. The following is some

profiles as reference.

We have developed more than 10 series of steel roof metalic sheet machine which can meet the requirements of all steel construction, such as production lines for wall &roof sheet, color steel tile, C&Z&Wshape purlin and floor decking sheet as well as production line for all kinds of sandwich panels, curving machines for roof sheets. We also supply production lines of guardril sheet for expressway, shutter doors,garages doors downpipe. Besides, we devoted to the research and development of various kinds of other products related to steel structure, shearing machine, slitting machine, etc
