2024 New Type HYHX-300 Oven Combined With Water Cooling And Air Cooling

Oven

Specifications:

Frame width :1700-2500mm

Capacity :500kg/h

Installed power :9.3kw

Self-carried reserve chute with controllable height

Inverter controlled output device and adjustable output speed

Adjustable output thickness ranging from 80-150mm according to productivity

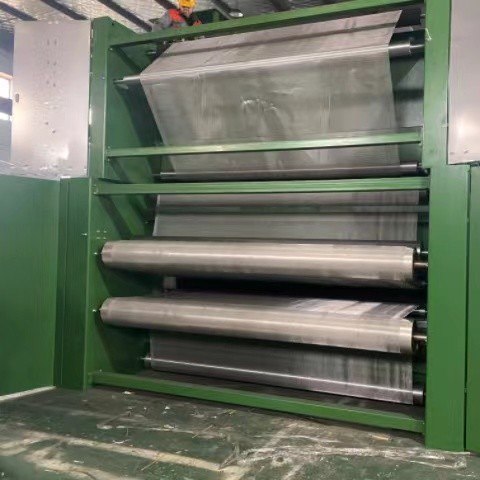

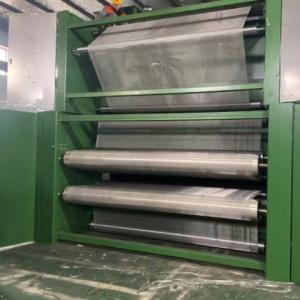

The machine is used to process the batt of fiber to obtain a hard and thick thermal-bonding wadding.The low melt fiber will combine other fibers together through hot air penetration and colling system for reinforcement.

Main specifications

Working width ≤5000mm

Product weight (60-1500)gram/㎡

Product thickness (3-200)mm

Surface temp. ≤220℃

Heating method hot oil circulation, electricity heating, direct burning

Oven working width 6.0m 8.0m 10m

Structure

-Single layer,single belt or double-belt structure

-Up and down belts hold the web for entering to get heated and formed.

-High temperrature resistance TEFLON belt with auto correction device.

-Main drive and fan inverter controlling.

CHANGSHU HONGYI NONWOVEN MACHINERY CO., LTD is a professional nonwoven machinery manufacturer located in Changshu City, Jiangsu Province of China.  HONGYI has more than 20 years experience in nonwoven machinery manufacturing. The company occupies about 5000m² area, including manufacturing workshops and office building.

Until now, we have established 10 series 0f nonwoven machinery all over the country and also expand our business scope abroad, up to date, we have exported production line to Southeast Asia, Europe, South America and Austria, etc.

If you have any interest, pls do not hesitate to contact us.

We applied for the certificate of ISO 9001 and CE.

Below are the main kinds of our products, from which you may acquaint yourselves with some of items we handle:

1) wasted cloth recycled production line

2) felt production line

3) 100% cotton fabric production line

4) nonwoven fabric productiobn line

5) geo production line

6) geo fabric

7) nonwoven fabric

8) soundproofing material

9) sold mattress

10) coir mattress

We are looking for agent all over the world ,pls. Contact me and discuss more.
