550gsm PVC fabric 35mm double flap keder tent accessories for tent

Categories Tent Accessories
Brand Name: Event Tent
Model Number: K013
Certification: CE/SGS/ISO
Place of Origin: China
MOQ: 1000m
Price: USD0.4 to USD1 per meter
Supply Ability: 600000m per month
Delivery Time: 20 to 25 days
Packaging Details: carton roll packing
Size: diameter 13mm
Cord: transparent PVC, colored PVC, Φ3-Φ30;color optional
Fabric: Panama fabric
Fabric weight: 850gsm, 750gsm, 550gsm, optional
welding: high frequency welding
Flap: single, double, optional
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

550gsm PVC fabric 35mm double flap keder tent accessories for tent

550gsm PVC fabric 35mm double flap keder tent accessories for tent


Quick Detail

  1. Size: diameter 13mm
  2. Material: PVC cord, Panama fabric
  3. Flap: single or double for optional
  4. Packing: 200m/roll

Specification


ModelPVC diameterKeder diameter/mmWeld/mmFlap/mmFabric colorPVC coated colorFabric weight
diameter/mm(A)(B)(C)
D/S7-10-2067/7.31020White/gray/blackWhite/gray/black750G/M2
D/S7.3-10-20White/gray/blackWhite/gray/black850G/M2
D/s7.5-10-256.57.5/81025White/gray/blackWhite/gray/black750G/M2
D/S8-10-25850G/M2
D/S9-10-2589/9.51025White/gray/blackWhite/gray/black750G/M2
D/S9.5-10-25850G/M2
D/S11.5-10-301011.51030White/gray/blackWhite/gray/black850G/M2
D/S12.5-10-301112.51030White/gray/blackWhite/gray/black850G/M2
D/S13.5-10-301213.51030White/gray/blackWhite/gray/black850G/M2
D/S14.5-10-401314.51040White/gray/blackWhite/gray/black850G/M2

Technial specification

ItemSpecificationStandard
Yarn anti-capillarity treated1100D PES HT
Weight850g/sqmEN ISO 2286-2
Widthcustomized
Tensile strength (warp/weft)3000/2638 daN/5cmDIN53.354
Tear Strength (warp/weft)430/357 daNDIN 53.363
Adhesion110/110 daN/5cmDIN 53.357
FinishSlide-varnish aluminum side polyester
Resistance to Micro-organismsDegree 0, excellentISO20743;JISL1902
Handling temperature range-30℃ to +69℃DINEN1876-2
Quality management system ISO 9001

Packing

Keder diameterm/rollroll/palletm/palletm/containerRolling packing size/mm
7mm200m/A roll24 roll4,800m96,000m/ container550*170
7.5mm200m/A roll24 roll4,800m96,000m/ container550*170
8mm200m/B roll16 roll3,200m64,000m/ container550*250
9mm-10mm200m/C roll12 roll2,400m48,000m/ container550*330
11mm-14.5mm200m/D roll8 roll1,600m32,000m/ container550*500

Applications

Keder is widely use in different industrial area, such as tent, advisement, sailing etc.


Competitive advanges

  • The keder is produced by advanced equipment that imported from Europe & USA. The material is EU quality standard PVC strip and famous brand PVC coated fabric.
  • All material are EU quality standard
  • Short delivery time ; we can finish the production within 15 to 30 days
  • Good quality after sales service; the keder warranty is one year, but we sure the life time is more than 8 years. if any quality problem, we can compensate the same new quantity keder for you.

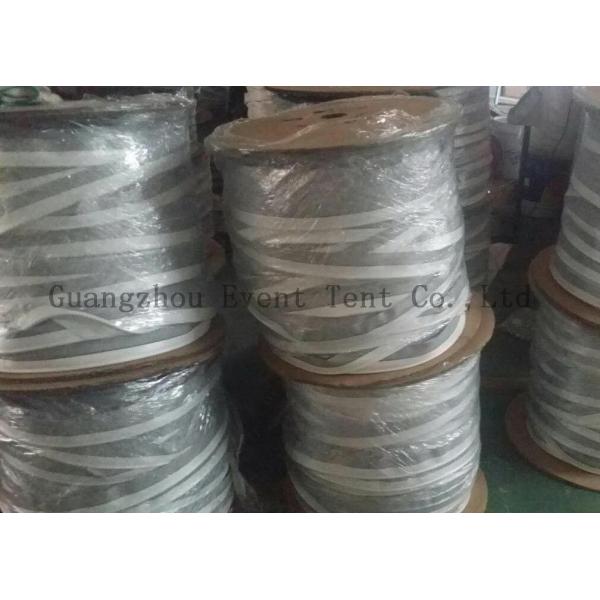

Product show:
