Zinc alloy Coffin Hardware Cross and Crucifix Model “ J05 ” size 12.5*17cm

Categories Cross and Crucifix
Brand Name: B&R
Model Number: J05
Certification: ISO
Place of Origin: China
MOQ: 1000 pcs
Price: $1/pcs
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500000pcs/month
Delivery Time: 30 days
Packaging Details: carton
Material: Zamak
Size: 12.5*17cm
Color: Gold,Silver or Bronze
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

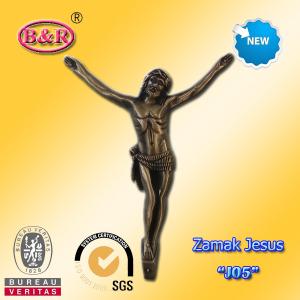

Zinc alloy Coffin Hardware Cross and Crucifix Model “ J05 ” size 12.5*17cm


Zinc alloy Coffin Hardware Cross and Crucifix Model “ J05 ” size 12.5*17cm


Main information:

Product name: Funeral accessory

Model: J05

Brand: B&R

Application: Funeral decoration

Origin: China

Manufacturer: Sumer International (Beijing) Trading Co.,Ltd


Product detail:

Size: 12.5*17 cm

Material: Zamak (Zinc alloy)

Color: Gold, Silver or Bronze (Optional)

Curved backside for tightly attached on urn

MOQ:1000 pcs


Main feature:

Professionally engaged in funeral field over 10 years;

Customized products acceptable;

Good quality and competitive price;


More picture:



More Information:

Zamak 4

Zamak 4 was developed for the Asian markets to reduce the effects of die soldering while maintaining the ductility of zamak 3. This was achieved by using half the amount of copper from the zamak 5 composition.

Zamak 4 composition per standard


Alloying elementsImpurities
StandardLimitAlCuMgPbCdSnFeNiSiInTl
Ningbo Jinyi Alloy Material Co.min3.90.30.03--------
max4.30.50.060.0030.0020.0020.075----
Genesis Alloys Ltd.min3.90.30.04--------
max4.20.40.050.0030.0020.0010.020.0010.020.00050.001

Zamak 4 properties


PropertyMetric valueImperial value
Mechanical properties
Ultimate tensile strength317 MPa46,000 psi
Yield strength (0.2% offset)221—269 MPa32,000—39,000 psi
Impact strength61 J (7 J aged)45 ft-lbf (5 ft-lbf aged)
Elongation7%
Shear strength214—262 MPa31,000—38,000 psi
Compressive yield strength414—600 MPa60,000—87,000 psi
Fatigue strength (rotary bending 5x108 cycles)48—57 MPa7,000—8,300 psi
Hardness91 Brinell
Physical properties
Solidification range (melting range)380—386 °C716—727 °F
Density6.6 g/cm30.24 lb/in3
Coefficient of thermal expansion27.4 μm/m-°C15.2 μin/in-°F
Thermal conductivity108.9—113.0 W/m-K @ 100 °C755.6—784.0 BTU-in/hr-ft2-°F @ 212 °F
Electrical conductivity26-27% IACS
Specific heat capacity418.7 J/kg-°C0.100 BTU/lb-°F

Zamak 5

Zamak 5 has the same composition as zamak 3 with the addition of 1% copper in order to increase strength (by approximately 10%), hardness and corrosive resistance, but reduces ductility. It also has less dimensional accuracy. Zamak 5 is more commonly used in Europe.


Zamak 5 composition per standard


Zamak 5 has the same composition as zamak 3 with the addition of 1% copper in order to increase strength (by approximately 10%), hardness and corrosive resistance, but reduces ductility.It also has less dimensional accuracy.Zamak 5 is more commonly used in Europe.


Zamak 5 properties

PropertyMetric valueImperial value
Mechanical properties
Ultimate tensile strength331 MPa (270 MPa aged)48,000 psi (39,000 psi aged)
Yield strength (0.2% offset)295 MPa43,000 psi
Impact strength52 J (56 J aged)38 ft-lbf (41 ft-lbf aged)
Elongation at Fmax2%
Elongation at fracture3.6% (13% aged)
Shear strength262 MPa38,000 psi
Compressive yield strength600 MPa87,000 psi
Fatigue strength (reverse bending 5x108 cycles)57 MPa8,300 psi
Hardness91 Brinell
Modulus of elasticity96 GPa14,000,000 psi
Physical properties
Solidification range (melting range)380—386 °C716—727 °F
Density6.7 kg/dm30.24 lb/in3
Coefficient of thermal expansion27.4 μm/m-°C15.2 μin/in-°F
Thermal conductivity109 W/mK756 BTU-in/hr-ft2-°F
Electrical resistivity6.54 μΩ-cm at 20 °C2.57 μΩ-in at 68 °F
Latent heat (heat of fusion)110 J/g4.7x10−5 BTU/lb
Specific heat capacity419 J/kg-°C0.100 BTU/lb-°F
Coefficient of friction0.08
