| Categories | Pcb Board separator series |
|---|---|
| Place of Origin: | China |
| Brand Name: | Fu Qi |

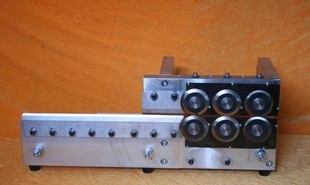

| Model Number: | FQ-168 |
| MOQ: | 1 pcs |
| Packaging Details: | wooden box |
| Delivery Time: | 7 days |
| Payment Terms: | T/T |
| Company Info. |
| YI WU CAMEL EVER TRADING COMPANY |
| View Contact Details |
| Product List |
Specification:
Max Cutting Length | Unlimited | Working Temperature | 10~35℃ |
V-Cut Board Thickness | 0.5~3mm | Separated Board | V-Cut Aluminum/Copper PCB Board,FR1～4 |
Moving Speed | 80, 120, 200, 300mm/Sec | Size: | 540mm(L)*280mm(W)*240(H) |
Blade Material | Sweden SKH7 HSS | Weight | 26 kg |
Power | 220V/50HZ,40W | Store temperature | -20~50℃ |
Features:
1.For Special Separated,cutting by Six blades,Upper and down two blades for one set,as a Unit.Improves the lifetime of blade, stability of cutting and eliminates limitation by plate length.
2.A,B and C three sets.Cutting for three Steps.
3.A set Separates 40% of V-cut Board,next B set 40% cutting,and finally C set will cut the last 20% of V-cut Board.
4.Cutting 20% of C set,less than trandition one set blade machines of 80%,making Board be separated smoothly.
5.Blades made up of SKH7 HS from Sweden,warranty of quality .
|
