| Categories | Wheel Tractor |
|---|---|
| Place of Origin: | China |
| Brand Name: | JINMA |
| Certification: | EEC/COC,EPA |
| Model Number: | JM200E |
| MOQ: | 1 set |
| Price: | negotiable |
| Packaging Details: | Crate |
| Delivery Time: | within 30 days after receipt of payment |
| Payment Terms: | t/t in advance or l/c at sight |
| Supply Ability: | 2000 sets/months |
| Shipment: | by sea |
| Warranty: | 1 year |
| Type: | Wheel Tractor |
| By wheel: | 2WD |
| Usage: | Farm Tractor |
| Certificate: | EEC |
| Power: | 20hp diesel |
| Brand: | Jinma |
| Product Name: | Lawn Tractor, Wheel tractor, compact tractor |
| Application: | Agricultural Farm, Lawn |

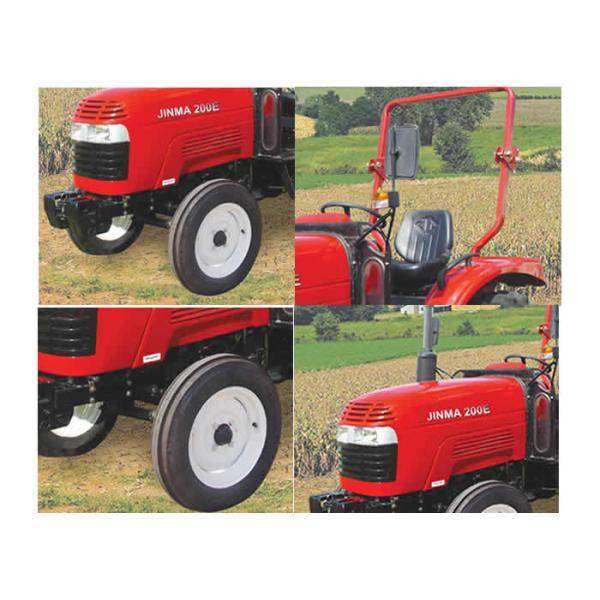

China Compact Four Wheel Lawn Tractor JM200E 20hp 2wd Agricultural Farm Tractor With CE
Features:
EEC/COC certified.
20hp 2wd four wheel tractor
1 unit order is acceptable.
Technical Parameters:
| Model | JM200E |
| Drive | 2wd |
| Overall Dimensions | 3185x1440x2530mm |
| Wheel track | Front- 1070-1270 Rear-1040-1200mm |
| Wheelbase | 1595mm |
| Ground Clearance | 330 mm |
| Rated Traction power | 4000 N |
| Machine Weight | 1295 kg |
| Turning radius | 2.4 meter |
| Theoretical Speed(Without creeper)( km/h) | Forward-1.99,3.94,6.57,9.21,18.2,30.36 |
| Reverse-1.58,7.3 | |
| Theoretical Speed (With creeper)( km/h) | Forward-0.37,0.73,1.22,1.72,3.39,5.66 |
| Reverse-0.29,1.36 | |
| Engine | KM385TE1 |
| 3 cylinders vertical, water cooled, 4 stroke | |
| Bore x stroke: 85 x90mm | |
| Rated power: 14.7kw/20hp -2350rpm | |
| Total displacement: 1.532L | |
| Clutch | Dual stage |
| Gearbox | (3+1)x2 |
| Final transmission | External gearing, Spur Gear |
| Tire | front-4.0-16, Rear- 8.3-24 |
| Steering gear | fully hydraulic steering |
| Brake | shoe type |
| Hydraulic System | Lifting Capacity at 610mm Behind Lift Point (N)- 3300 |
| 3-Point Suspension | catogery 1 |
| PTO Speed | 540/1000 |
| Options | Canopy, Rollbar |
|
