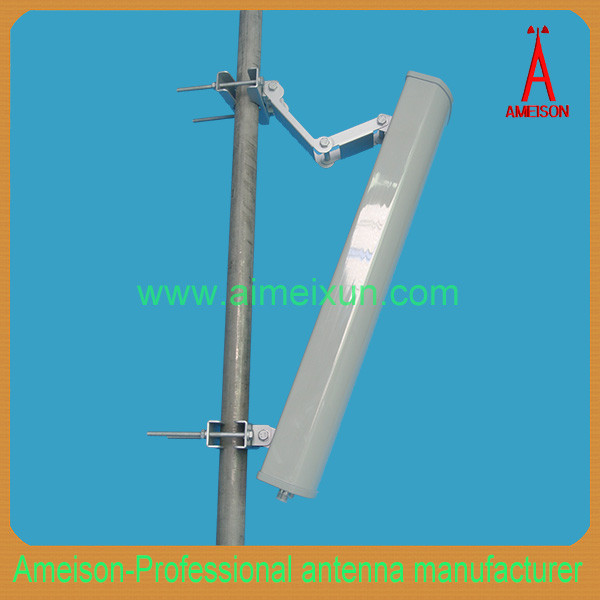

806-2500MHz Directional Panel Antenna lte 4g antenna

806-2500MHz Directional Panel Antenna
AMXP-8025S-D1215L65
Feature:
High gain
Full day working
Optimized dimension
Dual polarization
Application:
CDMA/GSM/PCS/3G/WLAN system
Wireless communication and data transmission system

AMXP-8025S-D1215L65 Electrical Specifications
Frequency range	806～960	1710～2500
Polarization	±45º
Gain(dBi)	12	15
half-power beam width(0°)	H:65 V:30	H:65 V:14
Front-to-back ratio(dB)	≥25	≥25
Input Impedance(Ω)	50
Isolation between ports	≥28dB
Cross-polar ratio	≥15dB@0º ≥10dB@+/-60º
Sidelobe suppression for first sidelobe above horizon	15 dB
VSWR	≤1.5	≤1.5
Maximum input power(W)	400	200
Lightning protection	DC Ground
Mechanical Specifications
Input connector type	N Female
Dimensions-mm (Height/Width/Depth)	120028080
Packing size(mm)	1250320160
Antenna weight (kg)	8
Radome material	UPVC
Radome color	Gray
Mechanical tilt(°)	0～10
Operating temperature(°c)	-40～60
Rated Wind Velocity(m/s)	60
Mounting hardware(mm)	￠35～￠90

Product Tags:

antenna wifi

wireless antenna

gsm antenna

806-2500MHz Directional Panel Antenna lte 4g antenna

Send your message to this supplier


*From:	Your email address is incorrect!
*To:	Shenzhen Ameison Communication Equipment Co.,Ltd.
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	700 - 2700 MHz DAS Antenna
Place of Origin:	Shenzhen, China.
Brand Name:	AMEISON
Model Number:	AMXP-8025S-D1215L65
Certification:	RoHS and REACH Compliant by Exemption
Frequency range（MHz）:	806～960 and 1710～2500
Polarization:	±45º
Gain（dBi）:	12 and 15
Input Impedance（Ω）:	50
Lightning protection:	DC Ground
Input connector type:	N Female
Price:	FOB SHENZHEN
Packaging Details:	bubble PP bag or EPE/inner box/master carton(safe export packaging)
Delivery Time:	10 days
Payment Terms:	L/C,T/T,Western Union,MoneyGram,PayPal
Supply Ability:	80,000 Pieces per Month
MOQ:	500 pcs per item
