| Categories | 433Mhz ISM Antenna and Other Antenna |
|---|---|
| Place of Origin: | China |
| Brand Name: | AMEISON |
| Model Number: | AMXW-450-6 |
| Certification: | ISO 9001: 2008 |
| Price: | EXW Price |
| Packaging Details: | PP bag /inner box/master carton or customized |
| Delivery Time: | 10-20 working days |
| Payment Terms: | TT,Paypal,Western Union |
| Supply Ability: | 50,000 Pieces per Month |
| MOQ: | 100 |
| Frequency range(MHz): | 450-470 |
| Bandwidth(MHz): | 20 |
| Gain(dBi): | 6 |
| VSWR: | ≤1.5 |
| Polarization: | Vertical |
| Lightning protection: | DC Ground |
| Input connector type: | N Female or Requested |
| Mounting hardware(mm): | ¢35-¢50 |

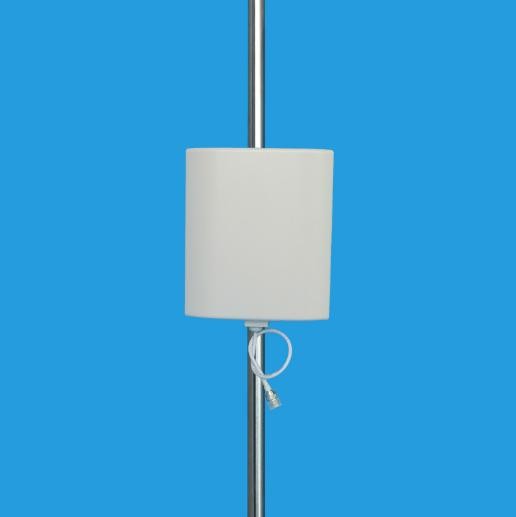

AMEISON 450-470MHz 6dBi Vertical polarization Directional Panel Antenna with N female
Feature:
Exquisite appearance
Good impact resistance,waterproofing and anticorrosion ability
Full day working
Optimized dimension
High gain,low standing wave,strong anti-interference ability
Application:
450-470 band communication system
AMXW-450-6 Electrical Specifications | |
| Frequency range(MHz) | 450-470 |
| Bandwidth(MHz) | 20 |
| Gain(dBi) | 6 |
| Half-power beam width(°) | H:70 V:65 |
| VSWR | ≤1.5 |
| Input Impedance(Ω) | 50 |
| Polarization | Vertical |
| Maximum input power(W) | 100 |
| Lightning protection | DC Ground |
| Input connector type | N Female |
| Mechanical Specifications | |
| Dimensions-mm (Height/Width/Depth) | 225*195*47 |
| Antenna weight(kg) | 0.6 |
| Operating temperature(°c) | -40~60 |
| Rated Wind Velocity(m/s) | 60 |
| Radome material | ABS |
| Radome color | white |
| Mounting hardware(mm) | ¢35-¢50 |
|
