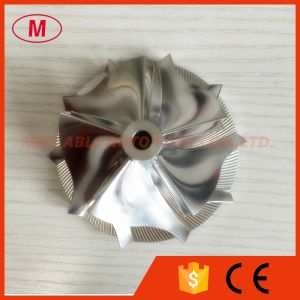

TD05H 60.50/78.00mm 5+5 blades Turbocharger Milling/aluminum 2618/billet compressor wheel for MITSUBISHI

1. MODEL:TD05H forward

2.TD05H 5+5 blades 60.50/78.00mm Turbocharger Billet/aluminum 2618/milling compressor wheel

3.Size:

Nose diameter:13.92mm

Inducer:60.50mm

Exducer:78.00mm

Tapered tip exducer:83.54mm

Tip height:5.80mm

Superback:2.60mm

Overall height:37.01mm

bore size :6.50mm

bore type:through

Trailing angle:50

Cutback:2.5

Blades height:31.90mm

Splitter height:20.90mm

SP Height angle:-1.60

5+5 Blades

Forward rotation

Tapered tip angle:30 degree

It is custom size ,please check carefully before buying

4.High quality and competitive price.

5.if you want more details, please send email to me.

Skype: maxabledieselparts

Wechat/Whatsapp:+86-18018657719

We are specialized in Bosch ,Delphi,Denso ,Simens genuine and brand new  nozzle ,injector ,plunger ,control valve ,head rotors and we also specialized in made in China nozzle ,plunger ,head rotor ,injectors diesel parts and turbocharger and turbocharger spare parts.

We have factory to produce the turbocharger and turbocharger parts.

High quality and competive price can satisfy with your requirement.
