20ft 40ft Flat Bed Semi Trailer with 60 Ton Carry Capacity Flatbed Tractor Trailer

Categories Flat Bed Semi Trailer
Brand Name: CIMC
Model Number: Flatbed semitrailer
Certification: BV,SGS, CNCA, CIQ
Place of Origin: China
MOQ: 1 Unit
Price: $9000-$16000 per unit
Supply Ability: 1000 units / per month
Delivery Time: 20 work days
Packaging Details: Nude, but with wax sprayed
Product name: 3 axles flatbed container semitrailer
Loading weight: 40000
Axle: three axle
Main beam: height of beam is 500mm,upper plate is 14mm,down plate is 16mm, middle plate is 6mm
platform plate: 3mm Diamond plate
container Twist lock: 12pcs container lock
Tire: 1100R20
Traction Pin: 50mm 90mm
Tool Box: 1 standard
Landing Gear: JOST 28 Ton
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

20ft 40ft Flat Bed Semi Trailer with 60 Ton Carry Capacity Flatbed Tractor Trailer

3 axles 20ft 40ft flatbed container semitrailer with 60 ton carry capacity

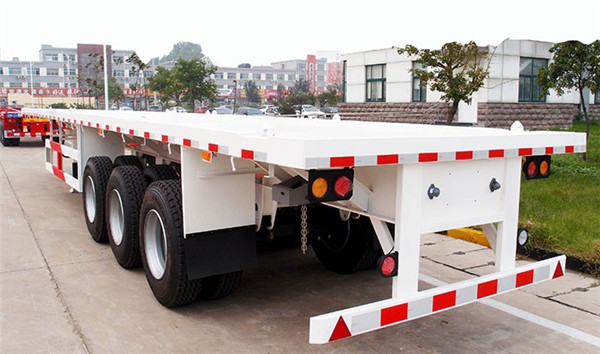

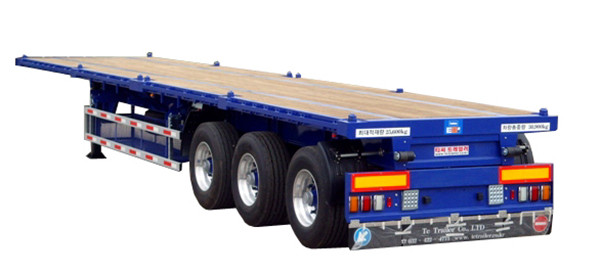

picture of product:


Specifications:


Product typeFlatbed semi trailer
Outside dimension

Length:8500mm-13000mm width:2500 mm

height:2860mm-2900mm

Tare weightAbout 6T
Wheelbase6560mm+1310mm+1310mm
Loading capacity30T-60T
Axle13T/16T,FUWA/BPW/HUAJING Brand
ABS systemOptional
Front/rear-/2420
Twist locksFour,Eight,Twelve pieces(Lifting type or Twist screw type), optional
Suspension

Mechanical suspension(Germany Type or America Type) or Air suspension

(China brand or BPW brand)

Spring leaf90(W)mm *13(Thickness)mm*10Layer, optional
Tires12 Pieces Triangle Brand
Rim9.00×22.5 China brand 12pieces
King pinJOST 2.00 or 3.5 ,Welding type
Support legsJOST brand D200T or China brand 28tons( Double speed)
The material of main beam

The height of the beam is500mm,upper plate is 14 mm,down plate is 16mm,

middle plate is 8 mm,Material is Q345B steel

Floor plate3mm or can be optional
Side beam16mm or 18mm channel stee (Material is Q235steel)
Side wall600-1500mm height, or can be do box type,for choose
Brake Chamber

WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand);

Two pieces of 45L air tanks Or China brand

Electrical System24V,7 wire harness
Tool boxOne piece or according to the requirement of the buyer
Painting

Compete Chassis sand blasting to clean rust,1 coat of anticorrosive prime,

2 coats of final paint

Chassis nameCargo truck chassis
Reflective warning signage

Manufacturer: Changzhou Hua R Sheng Reflective Material Co., Ltd.

Brand:SINOMTP Product Type:TM1200-1

Others


1. This vehicle is used to transport 40FT container.

2. ABS system: type: 4S/2M.

Manufacturer: Guangzhou KEMI Electronic Technology Co., Ltd.

3. Under-run protector:with the material of Q235B,be welding with the main body

4. Rear under-run protector: the height above the ground is 500mm Section:150mm*55mm.

Shipping termsBy bulk cargo carrier,RORO or 40HQ container

Useful:

(1)The mainly used to transport containers with container twist lock(20ft,40ft,45ft)

(2)It is Multi-purpose semi trailer,It has the Function of flatbed semitrailer without container.

(3)It can transport bulk cargo,such as shoes and clothes

(4)It can transport crude wood,Steel Pipe,Cement pipes.

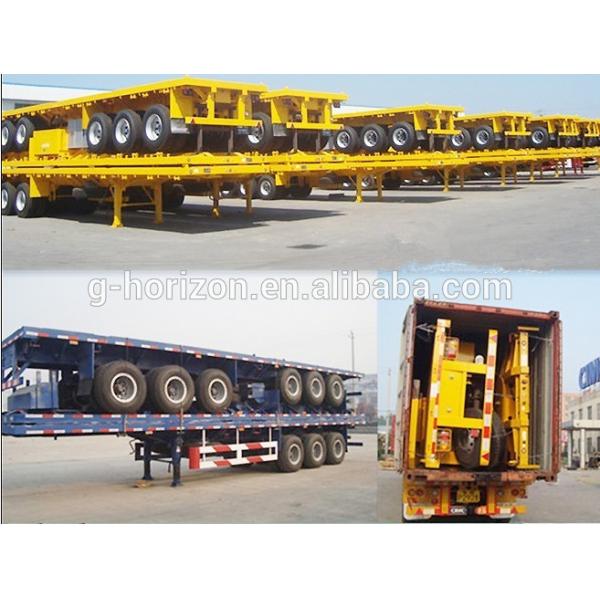

Transportation:
