| Categories | High Pressure Test Hose |
|---|---|
| Brand Name: | PASSION |
| Model Number: | test hose |
| Certification: | ISO 9001-2008, CE |
| Place of Origin: | Zhejiang (CHINA) |
| MOQ: | 300pcs |
| Price: | Negotiable |
| Payment Terms: | Western Union, MoneyGram, L/C, T/T |
| Delivery Time: | Within 20 days after we have received the advanced payment. |
| Packaging Details: | Well packed in high quality MC (for export) |
| Inner Tube: | Nylon |
| Reinforcement: | Braided Fibers or Wires |
| Outer Tube: | Polyurethane |
| Main Market: | North America and South America |
| Temperature: | -40C-120C |
| Feature: | Oil ,PH and pressure resistance |
| Application: | To be used as air, mineral oil , water-glycol ,alcohol transport. |
| Burst Pressure: | As high as 3000bar |
| Fitting type: | *Cone Seal Fitting Metric 60 Degree Female, Thread M12 x 1.5. *Cone Seal Fitting Metric 60 Degree Female, Thread M14 x 1.5 on one side and M12x1.5 on the other side. |
| Standard: | GB,SAE ,DIN |
| Length: | 0.5M/1M or as customized |
| Name: | high pressure test hose |
| MOQ: | 50PCS |
| Company Info. |
| Hangzhou Paishun Rubber & Plastic Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

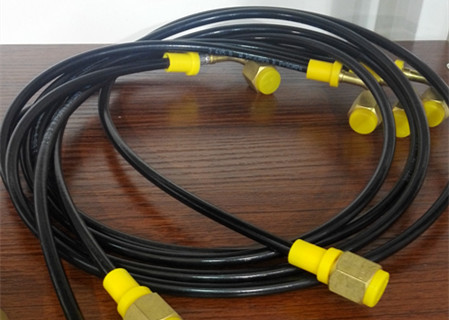

PA11 PU Flexible Common Rail High Pressure Test Hose , 3mm * 7mm
Application: To transfer high pressure fuel.
Inner tube: Nylon Resin (PA11)
Reinforcement: 1 or multiple layers of high strength braided textile or braided wires.
Outer cover: Polyurethane (PU)
Temperature Range: -40℃ ~ +120℃ (-40℉ ~ +248℉)
Connectors: M10*1.5,M12*1.5,M14*1.5,M12*1.25,M14*1.25,M16*1.5,M20*1.5,G1/2,G1/4 and so on.
| SIZE | I.D | O.D | W.P | B.P | ||
| inch | mm | mm | bar | psi | bar | psi |
| 2/25" | 2 | 5 | 400 | 5800 | 1200 | 17400 |
| 1/10" | 2.5 | 5.5 | 600 | 8700 | 1400 | 20300 |
| 1/8" | 3 | 6 | 640 | 9280 | 1600 | 23200 |
| 1/8" | 3 | 7 | 900 | 13050 | 2500 | 36250 |
| 1/8" | 3 | 9 | 2000 | 29000 | 3000 | 43500 |
| 4/25" | 4 | 12 | 2000 | 29000 | 4300 | 62350 |
| 1/50" | 5 | 15 | 2500 | 36250 | 5000 | 72500 |
|
