| Brand Name: | TOPFENCE® |
| Model Number: | 1800MM X 2400MM ,2100MM X2400MM ,2100MM X 3300MM AND 3500MM |
| Certification: | AS4687-2007 |
| Place of Origin: | China |
| MOQ: | 20gp container 250 set included 1pcs panels ,1pcs temporary fence hdpe foot ,1pcs temp fence clamp |
| Price: | 12.88USD-38.88USD |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 pcs per week |
| Delivery Time: | 14 work days |
| Packaging Details: | Metal Pallet Wrapped with Plastic |
| Materials: | Q235 Steel |
| Mesh Opening: | 60mm x 150mm x 4.0mm |
| Pipes: | OD 32 pipes |
| Size: | 2100mm x 2400mm |
| Design By: | Australia |
| Treatment: | 14 microns ,42 microns ,84 microns zinc layer |
| Weight: | 22.00kg |
| type: | hot dipped galvanized |
| Company Info. |
| Top Fence Co.Ltd |
| View Contact Details |
| Product List |

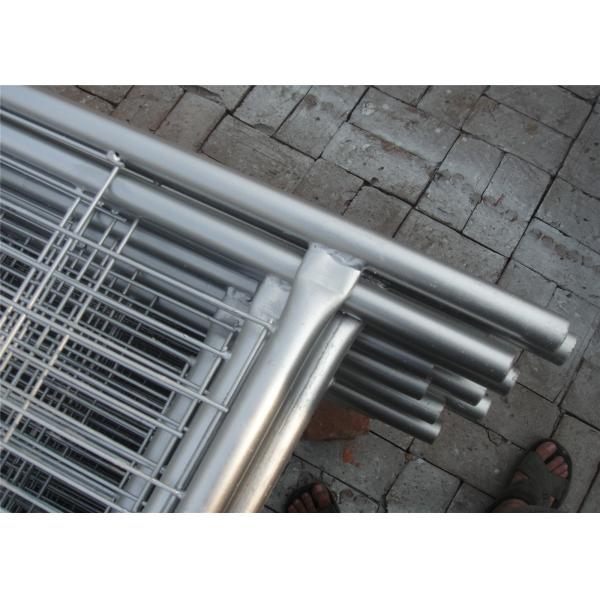

top fence 14 microns zinc thickness temporary construction fence panels are hot dipped galvanized steel plate rolled tubing then full welding with infill mesh 1736mm*2336mm*3.8 or 4.00mm wire diameter hot dipped galvanized to be minimum 100 gram/sqm
14 microns temporary fence technical data sheet | |
| Dimensions | 2100mm(H)*2400mm(W) |
| Tubing | OD 32mm*2.00mm thick |
| Mesh Spacing | 60mm*150mm |
| Infill mesh size | 1736mm*2336mm |
| V wire number | 36 *sticks wire *4.00mm |
| H wire number | 17 *sticks wire *4.00mm |
| Finished | 14 microns /100 gram/SQM |
| Weight of panels | 20.5kg-22.0kg |
| Service life | Salt spray Testing result least 3 years |
| 40HC container | 560 unit if covered clamp and base |
| Packing | Metal Pallet wrapped with plastic film |
| Productions Time | All stocked |
| Ocean time | 25 days to 35 days to any port of AU & NZ |
| What papers you provided after shipping containers | |
Main :Packing list , Commercial Invoice , bill of lading copy or draft for telex release one,balance papers Plus For NZ :Containers Declaration For AU:PKD - Packing Declaration 2016 and Certificated of Original | |


|
