| Categories | Silicone Coated Fiberglass Fabric |
|---|---|
| Brand Name: | Unionfull |
| Model Number: | UPSE-8732D160 |
| Certification: | ISO9001:2008, SGS;TUV |
| Place of Origin: | China |
| MOQ: | 500 Meters |
| Price: | $2.85-3.40/ Square Meter |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 50000 square meters per day |
| Delivery Time: | 15 Working Days After Receiving Payment |
| Packaging Details: | 50 meters per roll with poly bag |
| Base Cloth: | 3732 Fiberglass Fabric |
| Coating: | Silicone, 80gsm per side |
| Total Thickness: | 0.5mm |
| Weight: | 590g |
| Width: | 155cm |
| Feature: | Fireproof, High Strength, Electric Insulation |
| Weave: | Satin Weave |
| Keyword: | silicone coated fiber glass fabric |
| Company Info. |
| Unionfull (Insulation) Group Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

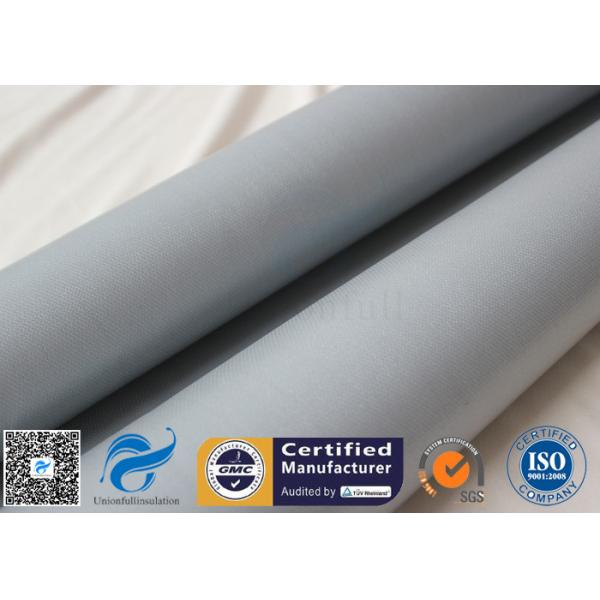

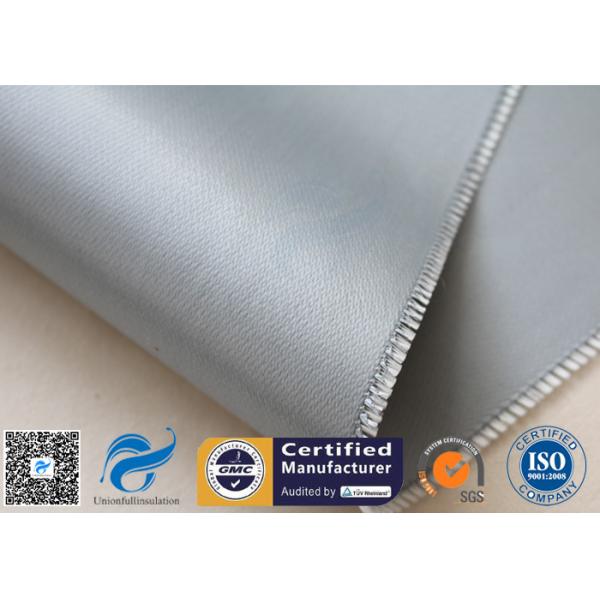

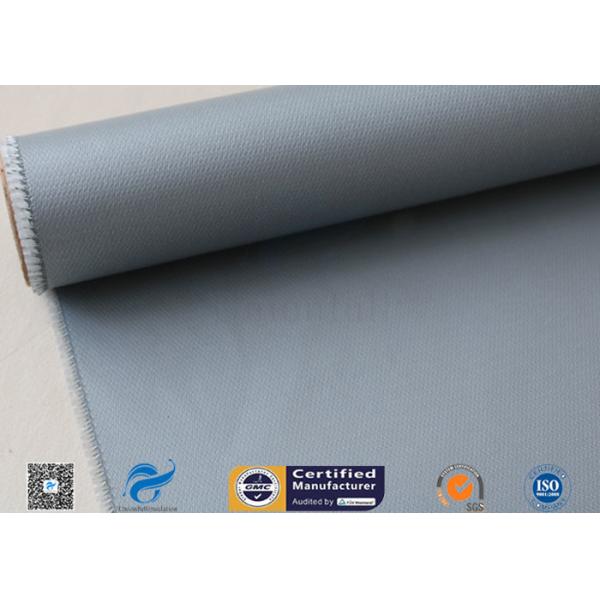

Chemical Resistant 3732 Grey Silicone Coated Fiber Glass Fabric
This silicone coated fiber glass fabric is 3732 fiberglass base
cloth with 80g/m2 grey silicone coating each side. The base fiber
glass cloth can used below 550℃ continuously. Silicone coating can
be used below 260℃.
Woven fiber glass cloth are very common used for marine and
composite construction and repair. This light weight but high
strength cloth provide smooth finish and are excellent for
producing a waterproofing layer or other treatment when is combined
with the appropriate resin. Heavier cloths will provide greater
strength and overall rigidity. Fiberglass cloths of Unionfull are
compatible for use with polyester resins, epoxy resins or vinyl
ester resin.
Base on silicone coating's properties, major application of
silicone coated fiber glass cloth, rubber coated fabric are fire/welding blanket, fire curtains, fabric expansion joints,
thermal insulation, removable insulation blankets, food handling
operations and release sheet material.
Yarn type of e-glass 3732 fabric is e-glass G37 1/0 0.7Z fiberglass
yarn.
Total weight is 510g/m2. 430g/m2+40g/m2 per side.
Common widths Unionfull produce are 100cm, 127cm and 155cm.
| Number | Thread Count | Thickness | Weight | Width |
| 3732 | 20 Ends/CM 11 Ends/CM | 0.4mm | 430g/m2 | 0.9m-4.2m |
| Item | Silicone Coated Fiberglass Fabric |
| Material | E-glass Glass Fiber Yarn |
| Weave | Satin Weave |
| Warp Density | 20 Ends/CM |
| Weft Density | 11 Ends/CM |
| Mass Per Unit | 590g/m2(430+80+80) |
| Thickness | 0.5mm |
| Width | 155cm |
| Temperature | Cloth below 550℃ |
Properties
Application
Picture:
About Fiber Glass
Extremely soft weave allows lay-up into the tightest parts. Can be
used in many high performance composite parts where good
drapability is needed.
Currently available in 39", 50" and 61" width.
E-glass fiberglass fabrics are most common used. It is high
strength and fireproofing. S-Glass will has the same working
qualities as a standard E-glass. But you will get an approximate
25-30% increase in breaking strength. Used in applications where
the most possible strength is required while keeping weight to a
minimum.
|
