| Categories | CZ Purlin Roll Forming Machine |
|---|---|
| Brand Name: | Sussman |
| Model Number: | SM-CP |
| Certification: | SGS.CE.ISO |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | negotiable |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, D/P |
| Supply Ability: | 10 sets per month |
| Delivery Time: | 75days |
| Packaging Details: | film and steel |
| Material thickness: | 1.0-1.5mm steel coil |
| Roller Stations: | about 13 stations |
| Main Power: | 11KW |
| Hydraulic stations power: | 5.5KW |
| Power supplier: | 380V, 50HZ,3 phase |
| Weight: | 4 Tons |
| Forming Speed: | 0-12m/min |
| Machine size: | 7300*800*1000mm |
| Company Info. |
| Sussman Machinery(Wuxi) Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

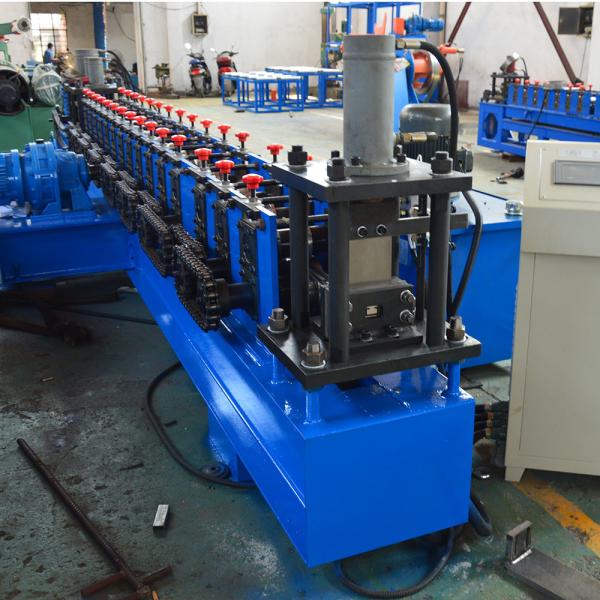

Hydraulic Cutting Metal Steel C Purlin Cold Bending Machine C80mm - 300mm width
Specification
1). Save Space
2). Low loss, easy operate
3). High Efficency
4). European quality, work smoothly
C Purlin Technical Parameter
Items | Specifications | |
Material of coil | Material Thickness | 1.0-1.5 mm steel coil |
De-coiler | Weight | 3 tons passive |
Forming system | Rolling Speed | 0-12m/min |
Roller Stations | About 13 stations forming | |
Roller Material | Gcr15 Steel with quenching | |
Shaft Material | 45# Steel Diameter 75mm shaft | |
Maim Motor Power | 11 kw | |
Hydraulic cutting Power | 5.5 kw | |
Cutting system | Material Of Cutting | CR12 with quench treatment |
Hardness | HRC58-62 | |
Tolerance | +-1.5mm | |
Cutting blade | 1 set of cutting blade | |
Electrical control system | Electric Source | 380V, 50HZ, 3phase |
Control System | PLC with touch screen Japanese Panasonic and Yaskawa Brand | |
Weight | About 4 tons | |
Size of machine | Length 7300mm* Width 800mm* Height 1000mm |
Main Components
Name | Quantity |
Feeding with guide | 1 set |
Main roll forming machine | 1 set |
3 ton passive de-coiler | 1 set |
Control box | 1 unit |
Hydraulic station and punching | 1 unit |
Out tables | 2 units |
Profile and Drawing Of Product
Customer Visiting
Loading pictures
All rollers will be brushed unti-rusty oil, and packed with
waterproof plastic film.
Control box: be packed with thick cardboard, and outer side thick waterproof
plastic film.
Delivery time: 75days after deposit
Our Service
Warranty: 12 months,lifetime service
During the warranty period, it covers all spare parts of machines,
if you find some spare parts were damaged, those new spare parts
will be supplied free by us, but normal wear and tear excepted. And
the freight should be bore equally by both parties.We could provide
technical guiding, production, installation, debugging and
maintenance service to all customers. After the end of the warranty
period, it’s not free. We will provide the technical support for
the whole life of the equipment.
|
