| Categories | UL Ribbon Cable |
|---|---|
| Brand Name: | WCH Cable |
| Model Number: | UL21016 AWG26 PH0.90 GRY+BLK |
| Certification: | UL Certificate |
| Place of Origin: | Dongguan, China |
| MOQ: | 1220 meters |
| Price: | USD 0.2086 per meter |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 5,000,000 meters per month |
| Delivery Time: | 9 days for ready goods |
| Packaging Details: | 152.5 meters or 305 meters per reel, optional |
| UL Style: | 21016 |
| Gauge: | 26AWG |
| Pitch Distance: | 0.90mm |
| Pin Quantity: | 10 Pins |
| Colour: | Gray Color With Black Marking |
| Conductor Type: | Tinned Stranded Copper Wire |
| Company Info. |
| WCH Cable Industrial Co., Ltd. |
| View Contact Details |
| Product List |

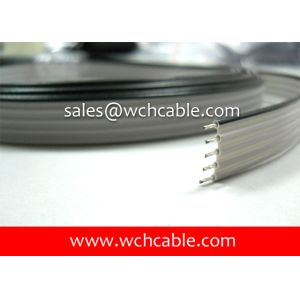

XLPE Flat Ribbon Cable UL21016 #28AWG 10Pins 0.90mm Pitch FT2

WCH Cable - Professional Manufacturer of Ribbon Cable, UL Cord, Cable Assembly
| Conductor | Specification | (AWG) | 28 |
| Section Area | (mm²) | 0.089 | |
| Material | Tinned Stranded Copper Wire | ||
| Configuration | (mm) | TS7/0.127±0.007 | |
| Insulation | Pitch Distance | (mm) | 0.90 |
| Ave Thickness | (mm) | 0.23 | |
| Min Thickness | (mm) | 0.20 | |
| Over Diameter | (mm) | 0.90±0.10 | |
| Material | XLPE (RoHS) | ||
| Colour | 8002K Gray | ||
| Electrical Capability | Rated Temperature | (℃) | 105 |
| Rated Voltage | (V) | 300 | |
| Conductor Resistance | (Ω/KM 20℃) | 150.0 | |
| Insulation Resistance | (MΩ/KM 20℃) | 100 | |
| Flammability | UL Fire Resistant | -- | |
| CSA Fire Resistant | FT2 | ||
| Approval | UL Style Number | 21016 | |
| CSA Standard | I / A | ||
| Based Standard | Lead Free | ||
| Environmental Standard | RoHS & Reach Compliant |






|
