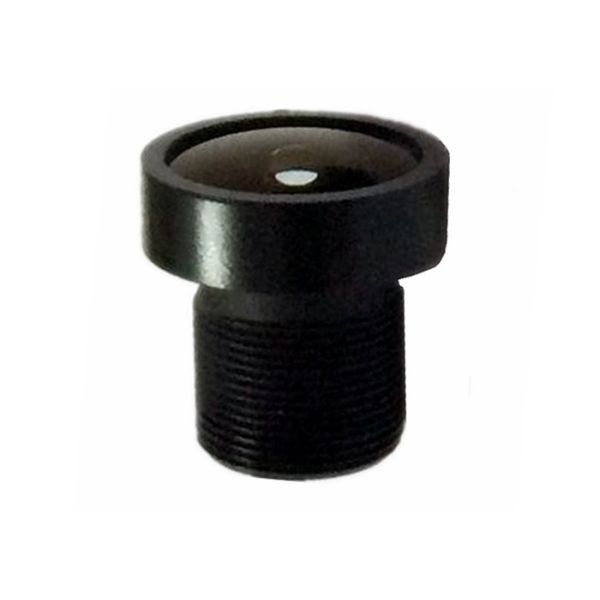

1/3" 2.9mm 3Megapixel M8/M7 mount 140degree Wide Angle Lens for OV4689 AR0330

1/3" 2.9mm F2.4 3MP 140degree wide-angel lens for AR0330/OV4689, 2.9mm lens for automobile data recorder/vehicle rear-view mirror

MODEL 13029MPF-M8(A) /13029MPF-M8(B)
SENSOR FORMAT 1/3"
SENSOR SIZE 1/3” ARO330/OV4689
FOCAL LENGTH(EFL) 2.9mm
F.O.V.(D*H*V) 140°*110°*68°
RESOLUTION 3MP
APERTURE F2.4
OPTICAL DISTORTION <-14%
MOUNT M8xP0.35 or M8xP0.5
B.F.L. 5.21mm
F.B.L. 3.71mm
T.T.L. 14mm
LENS CONSTRUCTURE 5G+IR

MODEL 13029MPF-M7
SENSOR FORMAT 1/3"
SENSOR SIZE 1/3” ARO330/OV4689
FOCAL LENGTH(EFL) 2.9mm
F.O.V.(D*H*V) 140°*110°*68°
RESOLUTION 3MP
APERTURE F2.4
OPTICAL DISTORTION <14%
MOUNT M7xP0.35
B.F.L. 5.21mm
F.B.L. 3.71mm
T.T.L. 14mm
LENS CONSTRUCTURE 5G+IR

Tips:

- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional

- M12/M8/M7 mount option.
