Twin and Earthing Flat Electrical PVC Insulation Wire With BS standard 6004 2 x 2.5 + 1 x 1.5mm2

Categories Electrical Cable Wire
Brand Name: SHANCABLE
Model Number: H05VV-F
Certification: ISO,CE,IEC,TUV,KEMA
Place of Origin: Shanghai, China
MOQ: Negotiable
Supply Ability: 100KM/Week
Packaging Details: Wooden Drum
Standard: BS6004
Outer sheath: PVC or PE
Free sample: 2 Meter
Rated Voltage: 300/500V
Lead time: 3-7 days
Conductor: Copper
Price: Negotiable
Delivery Time: 10 Days
Payment Terms: L/C, T/T
Corporation: shenghua group
Brand: Sh Cable
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

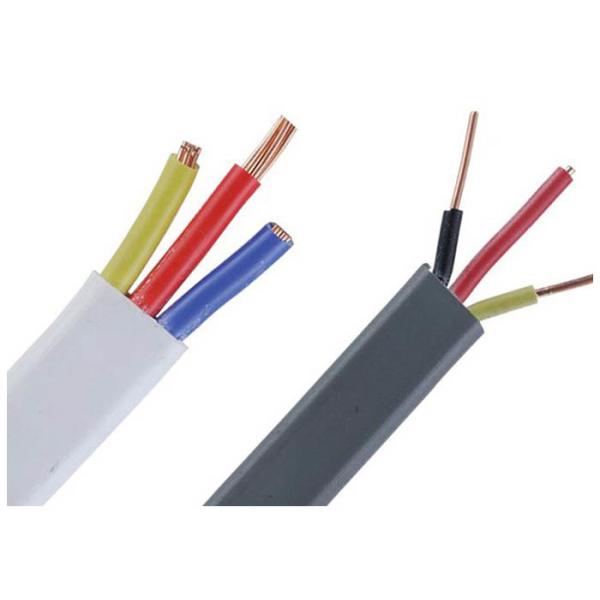

Twin and Earthing Flat Electrical PVC Insulation Wire With BS standard 6004 2 x 2.5 + 1 x 1.5mm2

Twin and Earthing Flat Electrical Cable Wire With BS standard 6004 2x2.5+1x1.5mm2

Applications


In dry rooms, apparatus switch and distribution boards, for fixed installation in conduits, over and under plaster and on insulated supports over plaster. Direct laying in plaster is not permitted.

Standards

International: IEC 60227

China: GB/T 5023-2008

Other standards such as BS,DIN and ICEA upon request


Technical data


Rated voltage: 450/750 V,300/500V

Max. Conductor Temp. in normal use: 70℃

Min. Bending Radius: 4 x cable O.D

Certificates

CE, RoHS, CCC, KEMA and more others at request


Specifications


BVVB


Nominal area of conductorNo./Dia. Of ConductorMax.O.DApprox.WeightMax. D.C Resistance of Conductor (20 ℃)Ω /km
mm2mmmmkg/kmΩ /km
AluminiumCopperCopperAluminiumAluminiumCopper
3x2.53x1/1.786.2x13.56.2x13.514093.911.87.41
3x43x7/0.857.0x15.07.4x16.52201237.397.41
3x63x7/1.047.4x17.08.0x18.02951534.914.61
3x103x7/1.359.6x22.59.6x22.54852613.081.83
