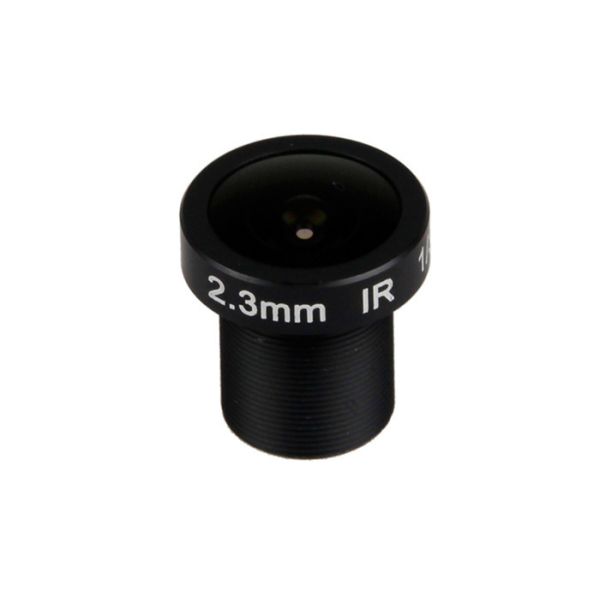

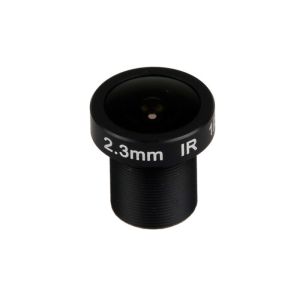

1/3" 2.3mm 3.5Megapixel M12x0.5 S-mount 172degree wide angle prime lens for 1/3" 1/4" sensors

1/3" 2.3mm F2.2 3.5Megapixel M12x0.5 mount 172degree wide angle lens, M12 mount wide angle cctv lens for 1/3" 1/4" sensors

MODEL: 13023MP
IMAGE FORMAT 1/3"

MAX IMAGE CIRCLE Φ6mm
FOCAL LENGTH(mm) 2.3
FOV: 1/3" 172.2° (D)*126.4° (H)*91.5° (V); 1/4" 117.2° (D)*91.5° (H)*67.6° (V)
RESOLUTION 3.5MP
APERTURE 2.2
OPTICAL DISTORTION 1/3": -91.30%; 1/4": -41.70%
MOUNT(mm) M12x0.5
IRIS Fixed
B.F.L. 5.18mm
M.B.F. 4.92mm
M.O.D.(m) 0.3
LENS DIMENSION Φ17*18.7mm
IR COLLECTION YES

Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional

- CS/M12 mount option
