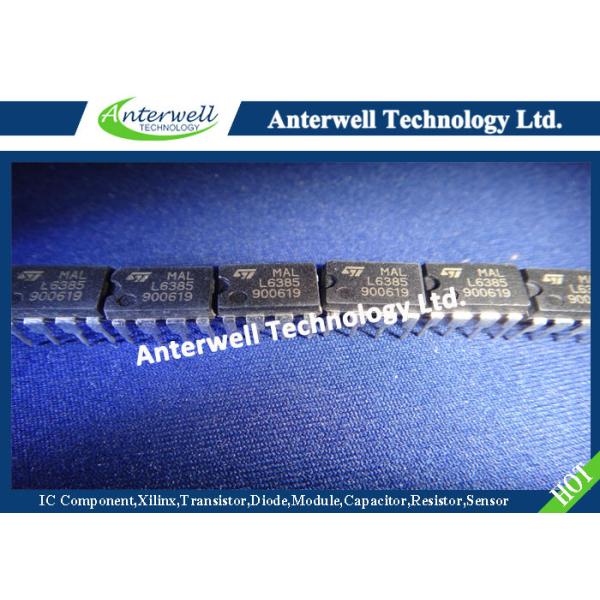

L6385D electronic integrated circuit Integrated Circuit Chip HIGH-VOLTAGE HIGH AND LOW SIDE DRIVER

L6385

HIGH-VOLTAGE HIGH AND LOW SIDE DRIVER

• HIGH VOLTAGE RAIL UP TO 600 V
• dV/dt IMMUNITY +- 50 V/nsec IN FULL TEMPERATURE RANGE
• DRIVER CURRENT CAPABILITY:
  • 400 mA SOURCE,
  • 650 mA SINK
• SWITCHING TIMES 50/30 nsec RISE/FALL WITH 1nF LOAD
• CMOS/TTL SCHMITT TRIGGER INPUTS WITH HYSTERESIS AND PULL DOWN
• UNDER VOLTAGE LOCK OUT ON LOWER AND UPPER DRIVING SECTION
• INTERNAL BOOTSTRAP DIODE
• OUTPUTS IN PHASE WITH INPUTS

DESCRIPTION

The L6385 is an high-voltage device, manufactured with the BCD"OFF-LINE" technology. It has a Driver structure that enables to drive independent referenced N Channel Power MOS or IGBT. The Upper (Floating) Section is enabled to work with voltage Rail up to 600V. The Logic Inputs are CMOS/TTL compatible for ease of interfacing with controlling devices.

ABSOLUTE MAXIMUM RATINGS

Note: ESD immunity for pins 6, 7 and 8 is guaranteed up to 900V (Human Body Model)

BLOCK DIAGRAM

PIN CONNECTION
