Drive-Away Antenna - Interstellar ku1200T

Categories Drive-Away Antenna
Place of Origin: China
Brand Name: INTERSTELLAR
Certification: ISO9001,CE
Model Number: ku band 1200T
MOQ: 1
Price: Formal Quotation
Packaging Details: Export fit
Payment Terms: T/T
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Drive-Away Antenna - Interstellar ku1200T

Interstellar - ku1200T Drive away Antenna Technical Parameter


1)Working Frequency: Ku- downlink:10.95~12.75GHz; Ku- plink:14.0~14.5 GHz;

2)Gain: Ku- RX:≥41.8dBi;Ku-Tx:≥43.2dBi;

3)First side lobe :≤-16dB;

4)Other side lobe:29~25LgA(A azimuth,range ±45°);

5)Polarization:linear,vertical and horizontal;

6)VSWR:≤1.25:1;

7)Beam width: Ku-rx:1.4°;Ku-tx:1.2°;

8)Polarization Isolation:≥35 dB;

9)Rx TX Isolation:≥85 dB;

10)Interface type:WR-75;

11)Antenna Aperture:1.2m;

12)Antenna type: offset

13)Reflector structure:two layer board structure

14)Weight:≤75kg;

15)Antenna Size:

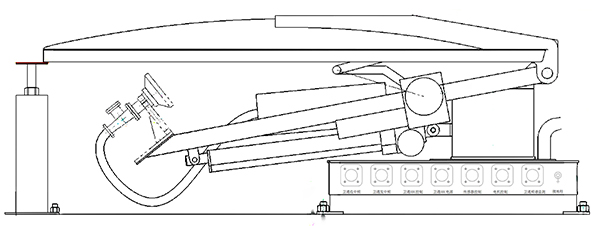

Stored status:1400mm×1200mm×460mm ;

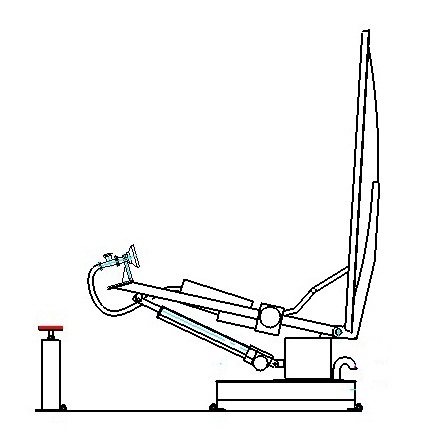

Installed status:1400mm×1200mm×1650mm

16)Working Environment:

① working wind speed :≤12m/s

② survive wind speed:≤20m/s

③ working temperature:-25℃~55℃;

④ stored temperature:-40℃~70℃;

⑤ humidity:(95±3)%(40℃);

⑥ raining:420mm/h.

17)working rang: AZ:15°~345°;EL:3°~90°;POL:-90°~+90°;
