| Categories | Water Source Heat Pump |
|---|---|
| Use: | domestic,commercial,industrial fields |
| Installation: | Freestanding |
| Storage / Tankless: | Instant / Tankless |
| Brand Name: | E-backs |
| Model Number: | GSH16 |
| CE certificate: | EN14511 stdandard |
| Housing Material: | Spary coating or stainless steel |
| water to water heat pump: | Copeland scroll compressor |
| FOB Price: | Get Latest Price |
| Type: | Water Source Heat Pump |
| Place of Origin: | Guangdong |
| Category: | Heat Pump Water Heaters |
| Supply Ability: | 600 Piece/Pieces per Month |
| Packaging Details: | Plywooden case with water-proof polyester film inside. |
| MOQ: | 5pcs |
| Delivery Time: | 10-20 days upon receipt of the payment. |
| Payment Terms: | L/C,T/T |

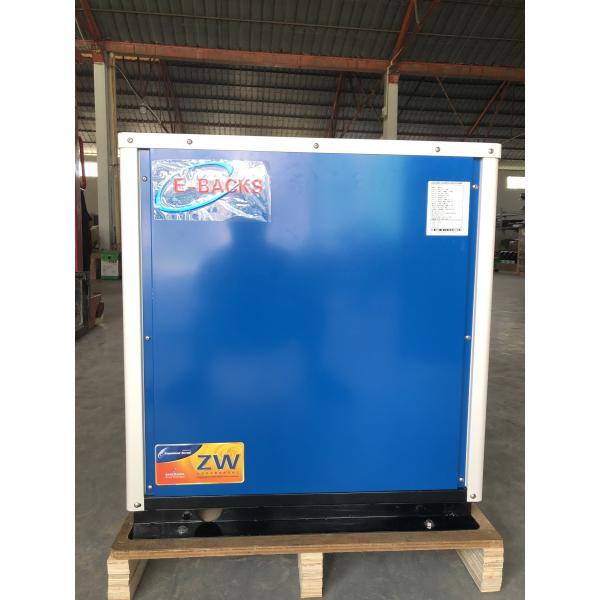

Water to water heat pump
Model:GSH16
Rated Power:4KW
Heating capacity (KW):12KW
Cooling Capacity :9KW
Rated voltage:220/380V
Rated current:6A
Rated frequency:50HZ
Outlet water rated temp (oC) :55
Outlet water max temp(oC):60
Cold water temp drop (oC):3-5
Water flow :3000L/H
Hot water pipe size:DN25mm
Cold water Pipe size:DN25 mm
Dimension:706×706×650 mm
Weight:100Kg
Noise:<60Db
Defend grade:IPX4
Defend electric shock grade:1
Refrigerant:R417A/R410A/R407C
Compressor:sanyo/daikin/ Panasonic/copeland
-
Major collocation:compressor,evaporator,condenser,electronic control system.
Has been tested and designed in accordance with Europen standard.
-
1.Geothermal source heat pump use the constant temperature of the earth as exchange medium instead of the outside air temperature.This allows the system to reach fairly high efficiency (300%-600%) on the coldest winter night,compared to 175%-250% for air source heat pump on cool days.
-
2.Relative to air source heat pump,they are quieter,last longer,need little maintenance,and don't depend on the temperature of the outside air.
-
3.The system may be used for air conditioner in summer,as well as a heating system in winter.A high efficiency heat pump can provide four times the heat compared with an electric heater.
-
4.And system life is estimated at 25 years for the inside components and 50+ years for the ground loop.
|
