| Categories | LED Video Walls |
|---|---|
| Brand Name: | kaixin |
| Model Number: | LM-HD1.6 |
| Certification: | UL CE ROHS ISO ETL SGS SAA Fcc EMC |
| Place of Origin: | China |
| MOQ: | 1 Unit or 1 PCS or 1 set |
| Price: | Negotiation |
| Payment Terms: | Western Union, MoneyGram, T/T VISA |
| Supply Ability: | 50,000 units per month |
| Packaging Details: | Packaging Details : Wooden box or Flight case Function : display video/text/picture/photo Pixels : p1.6/p1.9/p2.5/p3.75/p4/p4.8mm Refresh Rate(Hz) : ≥ 1500 Color temperature : 6500K-11000K Brightness(cd/m2) : 1800 LED Chip Color : Video Full Color LED styp |
P1.6 Indoor HD LED Video Walls , SMD1010 Large Screen Display Solutions with 14bit Gray Grade
Product Detail Description:
1. HD1.6 has exceptional display quality even when brightness is
reduced to 20%.The so-called seamless, thinnest, super-thin and
barely seamless marketing can never change the fact that there are
still gaps between cabinets, while Leeman fast-connector makes the
real seamless splicing possible.
2. 6:9 design. Cabinets 16:9 resolution is specialized for command
center. Perfect replacement for LCD display. Die cast aluminum
cabinet, guarantee you a flat and seamless screen. Good uniformity.
Dot-to-dot correction technology provide you pure image with great
gradation.
3. Modular design. Efficient and low cost installment and
maintenance. Patented cooling system, fanless, non-noise,
energy-saving and eco-friendly.High reliability. Redundant N+1
power system, dual signal hot backup. Auto-switch and warn
malfunction.
4. Vertical/horizontal: 160°/160°, broadcast-level color gamut, CT
and brightness adjustable,more appropriate for long-time watching.
Technical Specification:
1) Module Parameter
| Item | Specification Parameter |
| Pixel Pitch,Resolution rate,size | 1.6mm,80*90dots,128.56*144.63*10mm |
| Pixel color, Pixel LED | 1R1G1B, SMD1010 |
| Working voltage,Module Power | DC4.2V,16W |
| Driving way | 30 scanning |
2)Cabinet Parameter
| Item | Specification Parameter |
| Material,Cabinet Weight(kg/Cabinet) | Die cast aluminum ,6kg/Cabinet |
| Resolution rate,size,Module quantity | 240*180Dots,385.7*289.3*77mm,3*2 |
| Density | 387230 |
| White balance ,Color temperature | 300CD,6500K-11000K |
| view angel,Non-Flatness,Module interval | H:140°;V:140°,≤0.3mm,≤0.3mm |
| Maximal power,Average power | 1010W,350W |
| Working temperature,Protection grade | -10℃ - +40℃,Front/Back:IP30/IP30 |
| Frame frequency,Refresh frequency,Gray grade | 60Hz,2400Hz,14bit |

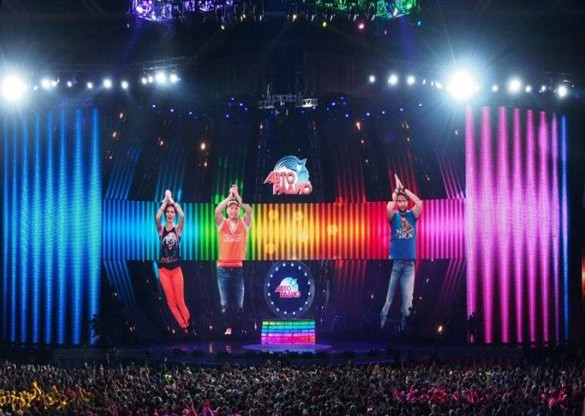

Application places
Ideal for auditorium, conference room, banquet hall and exhibition presentations, traffic, studio, command and monitor system
