| Categories | Pneumatic Solenoid Valve |
|---|---|
| Brand Name: | NBSANMINSE |
| Model Number: | BM |
| Certification: | ISO9001 |
| Place of Origin: | CHINA |
| MOQ: | 10PCS |
| Price: | Negotiation |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 10000PCS |
| Delivery Time: | 5-30days |
| Packaging Details: | Plastic Bags , Boxes |
| Medium: | Air |
| Action: | Internal pilot |
| Pressure: | 0 . 15 ~ 0 . 8MPa |
| Temperature: | 5 ~ 50 ℃ |
| Port Size: | 1 / 8 " , 1 / 4 " |
| Voltage: | AC220V DC24V |
| Thread: | G / NPT |
| Position: | 5 / 2 , 5 / 3 |
| Company Info. |
| Ningbo Sanmin Import And Export Co.,Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

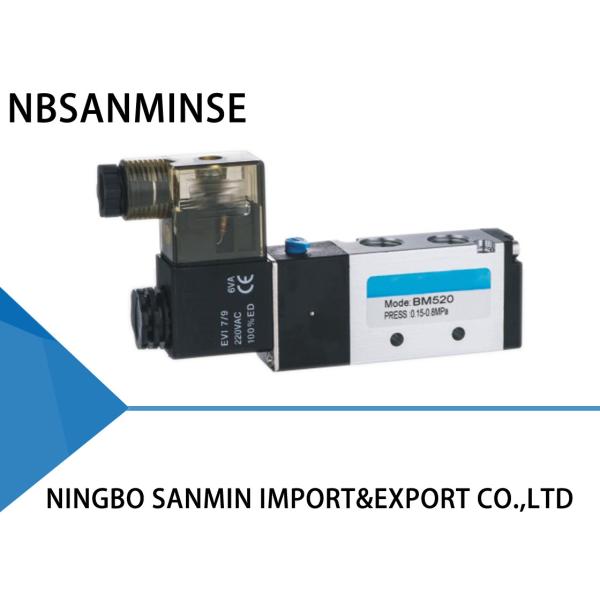

Internal Pilot 5 / 3 5 / 2 Pneumatic Valve 220VAC 24VDC SHAKO Type BM Series
BM520 , BM520D , BM520T
Specifications
| Model | BM520 | BM520D | BM520T |
| Valve Type | 5 / 2 way | 5 / 3 way | |
| Effective Cross Section Area | 16mm ² ( CV = 0 . 89 ) | 12mm ² ( CV = 0 . 679 ) | |
| Working Medium | 40 Micron Filtered Air | ||
| Operation | Internal Piloted | ||
| Working – Pressure | 0 . 15 ~ 0 . 8MPa | ||
| Max . Test Pressure | 1 . 2MPa | ||
| Max . Ambient Temperature | 5 ~ 50 ℃ | ||
| Operating Voltage Tolerance | ± 10 % | ||
| Power Consumption | AC : 5 . 5VA DC : 4 . 8W | ||
| Protect Class | F . IP65 | ||
| Wiring / Connecter | Cable / Lead Wire or DIN Connector | ||
| Switching Frequency | 5 Cycles / Sec | ||
| Response | 0 . 05 Sec | ||
Why choose us
1: Various style for each products and completely series pneumatic
products .
2: Large stock for fast shipping .
3: High quality with competitive price .
4: Customize according to your special request .
5: Provide free products information .
6: One year quality guarantee
FAQ
Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .
Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special
customer.pre-production sample,production sample.
Q: What ' s your business scope ?
A: Our business scope is SMC type high quality cylinder , air
source treatment , solenoid valve ,water valve,steam valve,
mechnical valve ,foot valve,angle seat valve,anti-explosion
valve,pluse vlave, pneumatic valve ,hydraulic ball valve,hydraulic
ss ball valve,hydraulic check valve,hydraulic solenoid valve ,all
type of coil,lubrication pump and parts,SS316 fitting,quick coupler
, etc .
Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you
can give me the information ,
then we can give you an estimated price is for reference only . We
can do any size and any desgin .
Q: what types of products you can make ?
A: We can make many kinds of stainless steel materials and
brass,aluminum . Valve / solenoid valve / electric valve /
pneumatic valve and air cylinder products and so on .

|
