3732 15oz 0.5mm Grey PU Coated Fiberglass Cloth For Welding Curtain

3732 15oz 0.5mm Grey PU Coated Fiberglass Cloth For Welding Curtain

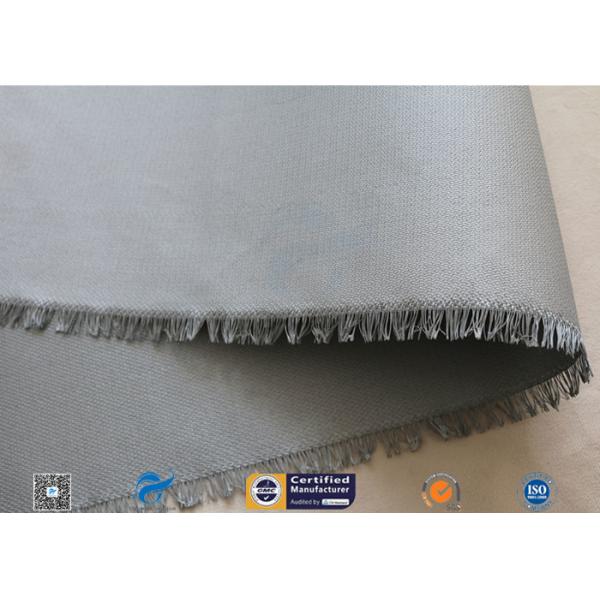

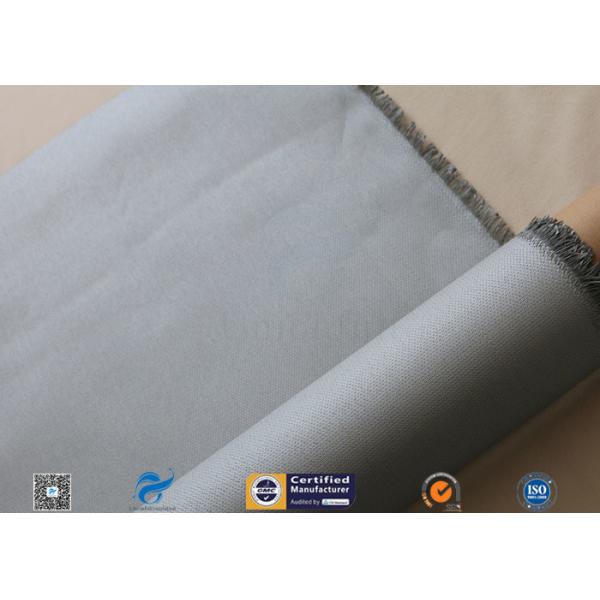

UPPE-8732D30 is woven 3732 fiberglass cloth substrate which has been coated on both two sides with a specially compounded grey polyurethane coating. Weave type of base cloth is satin(cross twill) weave. When coated with 40g/m2 grey PU coating each side, totally weight per unit is 510gsm, and thickness will be 0.5mm.

PU coated fiberglass cloth has a special property: usually common coated fiberglass fabric like silicone/PVC/PTFE coated fabric should be used below 260℃. While PU coating is able to resisting instantaneous temperature up to 1100℃. So it is very suitable to used for welding sparks/splash shield products, also great for fire blanket/curtain. Coated fiberglass fabric also have some special properties like chemical corrosion resistance, electrical insulation, waterproof, high strength, not itchy when touch, different colors.

Properties:

1. 40g/m2 Polyurethane coating on both sides
2. Pu coated fabric can withstand 1100℃ instantaneously
3. Fireproof, resist high temperature below 260℃
4. Chemical resistance
5. Abrasion corrosion
6. Waterproofing, washable

Application:

• Welding Spatter Protection
• Fire Curtain, Fire Doors
• Expansion joints
• Transmitter insulation covers
• Flange insulation covers
• Thermal Insulation Jacket/Exhaust Blanket
• Fire/Smoke Control Systems

Data Sheet Of Base Cloth 3732:

Picture:

Unionfull® Group Ltd is a quality environment friendly (ISO - 9001 & 2008) modern, hi-tech enterprise specialized in manufacturing of Thermal Materials and Heat Resistant Materials, such as Fiberglass Fabric, Silica Cloth, Silicone coated Fiberglass Fabric, Needle Mat and so on. Unionfull Group Ltd,. China Thermal Products supplier provides a comprehensive range of products including:

        1) Fiberglass Fabric

        2) Thermal Insulation Materials

        3)  High Silica Fabric

        4) Silicone Coated Fiberglass Fabric

        5) Fiberglass Needle Mat

        6) Glass Roving

        7) Fiberglass Fire Blanket

        8) Welding Blanket

Our products are used by some of the very well known industrial houses in the Petrochemical, Power, Cement, Steel, Chemical, Pharmaceutical, Gas and Process Industry.
We heavily export our products to different companies / industrial houses in the UK, US, Europe, Australia, Africa and the Middle East.

Unionfull Group Ltd is your premier supplier of industrial thermal insulating, welding and cutting protection and safety products.
