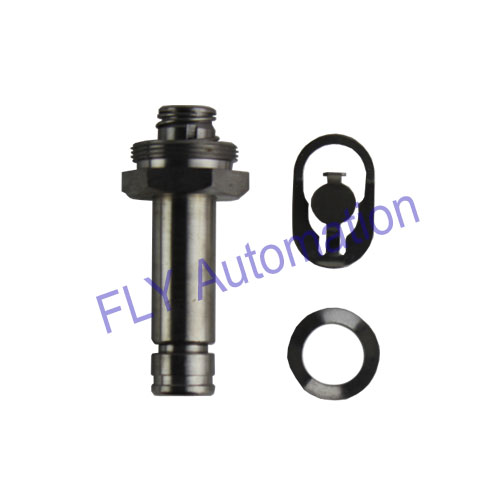

SCG353A047 SCG353A051 Pulse Valves Armature Plunger K0950 Φ14.2 with Spring Ferrule

Series Armature Plunger K0950 Φ14.2 SCG353A047 SCG353A051 Pulse Valves

Series Armature Plunger K0950 Φ14.2 includes O-ring, armature assembly, armature spring, ferrule.Suitable for SCG353A047 SCG353A050 SCG353A051 SCEX.060

The product is developed to be used in ambients with temperature range from –10°C to +80°C

The armature assembly is designed for more than 50x106 cycles.

Specifications:

The guide tube is made with brass (stainless steel is possible upon special agreement).

1 . The pulse diaphragm valves are especially designed for dust collector service applications, combining high flow, long life and extremely fast opening and closing to produce reliable and economical operation.

2 . The high flow, angle type bodies in combination with the special main diaphragm assemblies give the unique operating features required for dust collector service applications

3 . The design with integral compression fittings will facilitate installation because there is no need for threaded piping

4 . The high quality diaphragms are reinforced and wear resistant to guarantee a long operating life, even under harsh conditions

5 . Integral pilot operated valves satisfy all relevant EC directives

Plunger and core are made by a magnetic stainless steel specially designed for solenoid applications.

General Data:

Ambient temperature ············································· - 10 °C to + 80 °C

Quality of medium according to ISO 8573-1 ·········· compressed air class 4, 3, 4

Mounting position ·················································· any ( preferably plunger in vertical direction )

Picture details:
