Contitech Truck Air Shocks

Air Shocks For Trucks Contitech 4913 NP 02 Goodyear 9506 on Mercedes A 942 320 02 21

GUOMAT 1T4913NP02 Technical parameters

❶ screw bolt / Stud

Top Cover Plate screw bolt / Stud Tooth : M16x1,5

Screw Center Distance of Top Cover Plate : 52 mm

❷ Combined link rod / Combo Stud

Gas Hole / Air inlet : M16x1,5.

Combo Stud Tooth :M24x1,5

❸ Cover Plate

Top Cover Plate Diameter: Ø155 mm

❹Rubber Bellows

Rubber Bellows Natural Diameter: 248 mm

The Working Stroke : MIN 198 mm to MAX 598 mm

Maximum Height : 598 mm

Minimum Height :198 mm

Stroke Height : 400 mm

❺ Bumper block / Buffer block

Bumper Block

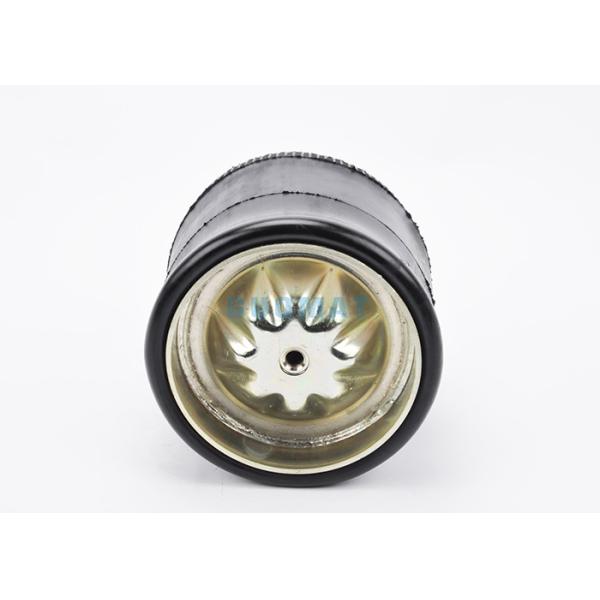

❻ Bottom Piston

Bottom Piston Diameter : Ø200 mm

Bottom Piston Height :155 mm

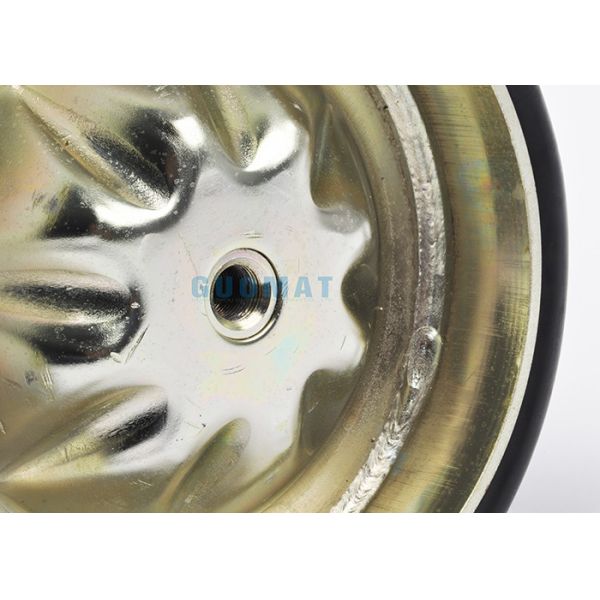

❼ Piston Bolt

Piston Bolt Tooth : M16X1.5

1T4913NP02 Cross References

bottom piston

4913 NP 02 package is carton

Guangzhou Guomat Air Spring Co., Ltd. is located in Guangzhou, about 15min’s drive from Baiyun Airport. Our mainly products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.

GUOMAT Factory gate：

Established in 2008, Our company covers 20,000㎡ and is located in Taihe Town Baiyun District. With the rapid development of our company, we are equipped with modernized workshop and advanced rubber air springs equipments now. We are the first company who started air spring business and has become one of the largest air spring manufacturing bases in China.

In 2017, we launched a collaboration with High Tech of US customers to customize the products of our customers and the logo of our customers. Every year, there are about 10,000 orders. In continuous cooperation, the products meet the international inspection standard ISO/TS16949:2009, and the customers are very satisfied with the products produced. This is our high recognition from American customers and also gives us Great motivation.

In 2018, we started cooperation with German GmbH, mainly industrial air springs, which are suitable for industrial equipment. We have successfully developed and produced the natural air-seal of the skin to reach the 700mm flanged air spring, the customer's annual demand is a few hundred.

With the development of business and demand for customers, our company introduced business with TomLog Corporation in 2010, our strategic cooperative partner in Taiwan. Then we developed air compressor program and air spring related business, in 2015, America Goodyear Corporation met with the transfer of shares in the North American plant, our company was granted with sale agent for air springs in China, providing more choice for our customers. Our company adopts the most advanced domestic air spring processing equipment and international production technology. Combined with unique production process, our company strictly execute international standards for production and spare no efforts to create the world-class products. We will endeavor to make air spring widely used at home and abroad, and let more and more customers to enjoy the best damping effect.
