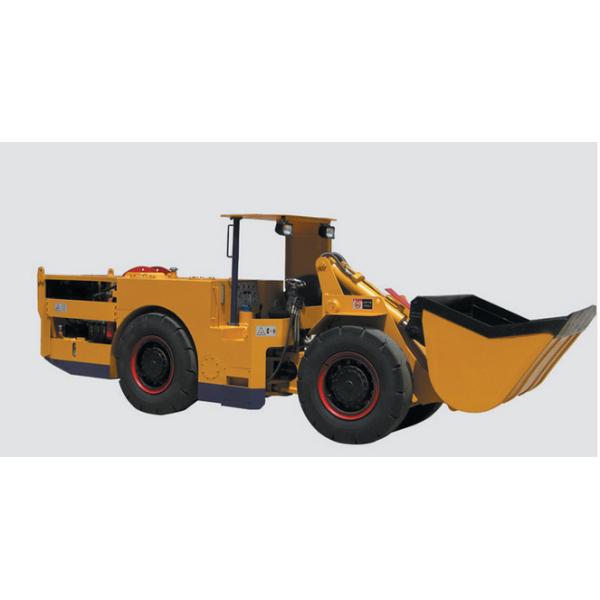

China Underground LHD Diesel Scooptram , mini mining LHD loader LHD

Features:

1.Underground Diesel LHD adopts German original DEUTZ F4L912W engine with low emissions, low pollution. Original imported main pump and motor guarantee the quality of the Hydraulic system.

3.The scooptram adopts the advanced way of three-point suspension articulated, which changes the old models’ layout form of oscillating axle.

4.It has overcome the defects of oscillating axle’s high failure rate, maintenance troubles, hidden dangers, greatly reduced the investment of manpower and material resources

5.Suitable for mining and roadway drivage slag, the construction of the road and work place, material transportation and so on.

Main Technical Parameters

Motor: DEUTZ F4L912W(Germany)
Heaped Bucket Capacity:0.75 m3	Payload Capacity:1500kg
Max. Traction:41 KN	Max. Shovel Force :39KN
Running Speed:0-8km/h	Max. Climbing Ability :16°
Max .Discharge Height :850mm	Min. Turning Radius :2350mm
Max. Rotation Angle :±36°	Min. Ground Clearance :195mm
Rated Power :43kw	Max. Bucket Height:3600mm
Weight(include hydraulic oil):6.5T	Dimensions :580012501900
