Digital Ultrasonic Thickness Gauge TG3000 For Metals , Plastic , Ceramics

Digital Ultrasonic Thickness Gauge TG3000 For Metals , Plastic , Ceramics

Digital Ultrasonic Thickness Gauge TG3000 For Metals , Plastic , Ceramics
Digital Ultrasonic Thickness Gauge TG3000 For Metals , Plastic , Ceramics
Categories Non Destructive Testing Equipment
Place of Origin: China
Brand Name: HUATEC
Model Number: TG3000
MOQ: 1 set
Packaging Details: Carton
Delivery Time: 3-7 working days
Payment Terms: TT, L/C, Western Union
Certification: CE
Supply Ability: 600pcs per month
Display: 4.5 digits LCD with EL backlight
Measuring Range: 0.75～300mm
Sound Velocity Range: 1000~9999 m/s
Power: Two “AA” size, 1.5 Volt alkaline batteries
Outline dimensions: 150×74×32 mm
Weight: 245g
Contact Now
Company Info.
HUATEC GROUP CORPORATION
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

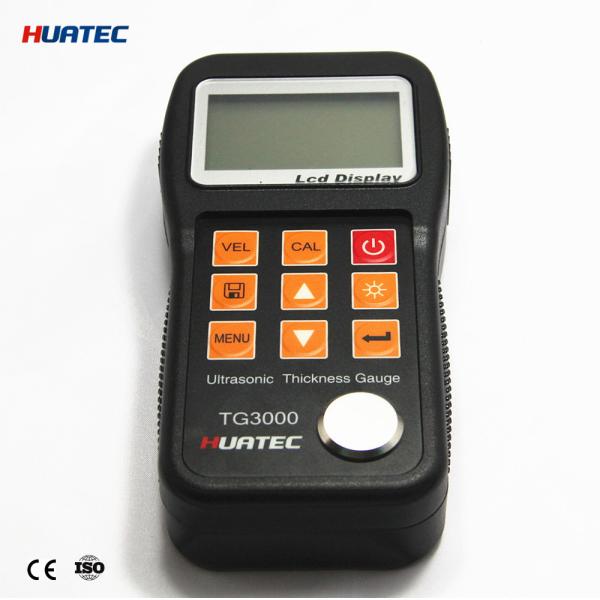

Digital Ultrasonic Thickness Gauge TG3000 For Metals , Plastic , Ceramics

Non Destructive Testing Equipment Ultrasonic Thickness Gauge TG3000 For Metals , Plastic , Ceramics
Features
1. Capable of performing measurements on a wide range of material, including metals, plastic, ceramics, composites, epoxies, glass and other ultrasonic wave well-conductive materials.
2. Transducer models are available for special application, including for coarse grain material and high temperature applications.
3. Two-Point Calibration function.
4. Two work modes: Single point mode and Scan mode.
5. Coupling status indicator showing the coupling status.
6. Auto sleep and auto power off function to conserve battery life.
Specifications
1. Display: 4.5 digits LCD with EL backlight.
2. Measuring Range:0.75～300mm (in Steel).
3. Sound Velocity Range: 1000~9999 m/s.
4. Resolution: 0.1mm.
5. Accuracy: ±(0.5%Thickness+0.04)mm, depends on materials and conditions
6. Units:Metric/Imperial unit selectable.
7. Four measurements readings per second for single point measurement, and ten per second for Scan Mode.
8. Memory for up to 20 files (up to 99 values for each file) of stored values.
9. Power Source:Two “AA” size, 1.5 Volt alkaline batteries. 100 hours typical operating time (EL backlight off).
10. Outline dimensions:150×74×32 mm. Weight:245g
Configuration
No.
Item
Quantity
Remarks
Standard Configuration
1
Main body
1
2

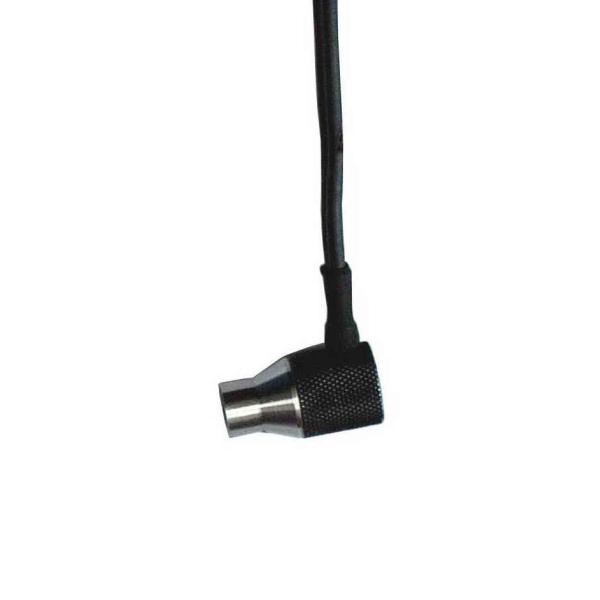

Transducer
1
Model: N05/90°
3
Couplant
1
4
Instrument Case
1
5
Operating Manual
1
6
Alkaline battery
2
AA size
Optional Configuration
7
Transducer: N02
8
Transducer: N07
9
Transducer: HT5
Probe optional
Model
Freq
MHZ
Diam
mm
Measuring Range
Lower limit
Description
N02
2
22
3.0mm～300.0mm(In Steel)
20
for thick, highly attenuating, or highly scattering materials
N05
5
10
1.2mm～230.0mm(In Steel)
Φ20mm×3.0mm
Normal Measurement
N05
/90°
5
10
1.2mm～230.0mm(In Steel)
Φ20mm×3.0mm
Normal Measurement
N07
7
6
0.75mm～80.0mm
(In Steel)
Φ15mm×2.0mm
For thin pipe wall or small curvature pipe wall measurement
HT5
5
14
3～200mm (In Steel)
30
For high temperature (lower than 300℃) measurement.
