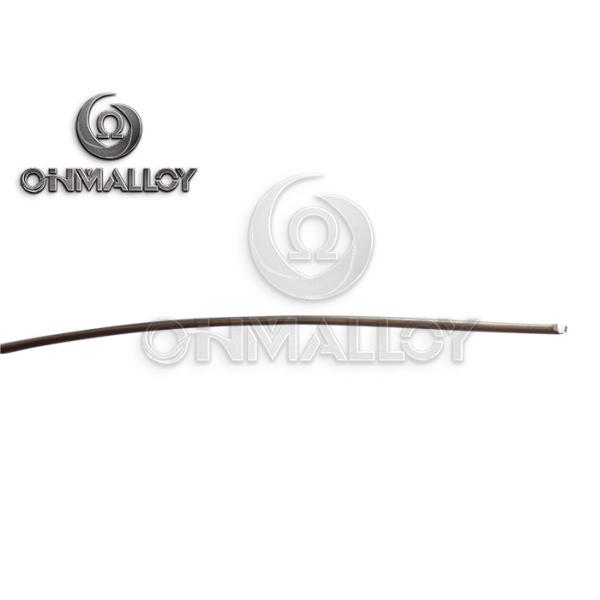

PTFE Insulated Resistance Wire NiCr80/20 0.5mm Dia For Heating Cable

PTFE Insulated Resistance Wire NiCr80/20 0.5mm Dia For Heating Cable

​

​Made Process of PTFE Resistance Wire:https://www.youtube.com/watch?v=C08s7cKJ8NU

RTD Extension wire Type PT100 4x24AWG-PFA/PFA

1, SUBJECT

This specification covers the requirements for PFA insulated, PFA sheathed thermocouple extension cable, 4x24AWG,strand wire.

2, TECHNICAL FEATURES

A. Conductors:

Nickel plated cooper, stranded wire

B. Insulation:

Extruded PFA ( 260ºC )

Nominal Insulation Thickness: 0.18mm ± 0.2

Color code: Red/Red/ White/White/ (2 cores red and 2 cores white)

C. Assembly:

Four conductors (cores) twisted construction.

D. Overall Jacket:

Extruded PFA ( 260ºC )

Nominal Sheath Thickness: 0.30mm ± 0.2

Color code: White

3, DIMENSIONS AND TOLERANCES

Ohmalloy Material Co.,Ltd is a high-tech enterprise which specialized in making all kinds of alloy such as high resistance alloy, low-resistance copper nickel alloy, precision alloy, FeCrAl alloy and thermocouple Alloy.

Ohmalloy Material Co.,Ltd have a full production line from melting, surface cleaning, rolling and slitting, full set of testing machine and can meet all kinds of technical requirement from customer. Our product is widely used in heating equipment, big steel mill, mineral, electrical equipment, food machinery, auto industry, aerospace industry. Our product not only is popular in domestic market, but also been exported to all over the world.

Our company aims to be the best-quality alloy producer in the world. We insist on developing the more advanced alloy strip technology, to serve all the customer, improve people’s living level, make a more green earth in the future
