| Categories | Taper Roller Bearing |
|---|---|
| Brand Name: | NSK / NTN / FAG / NACHI / KOYO / ASAHI / TIMKEN / UMT |
| Model Number: | 33114 |
| Certification: | ISO9001:2008 / SGS / CE |
| Place of Origin: | CHINA / JAPAN / USA / GERMANY |
| MOQ: | 10pcs |
| Price: | USD1.00-50.00 |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000000pcs/month |
| Delivery Time: | 2-7 work days |
| Packaging Details: | Packaging Details: Non -standard inch deep groove ball bearing 16011 /zv bearing packing items : 1.Industrial packaging: plastic bag + kraft paper + carton + plywood pallets; plastic tube + carton + plywood pallets; 2. Commercial packing: 1pc/plastic bag |
| outer diameter: | 130mm |
| structure: | Tapered roller |
| model number: | 33114 |
| seal type: | open |
| type: | roller |
| number of row: | single row |
| brand name: | NSK / NTN / FAG / NACHI / KOYO / ASAHI / TIMKEN / UMT |
| breadth: | 37mm |
| bore side: | 80mm |
| weight: | 0.64kg |
| service: | OEM or Costomized services |

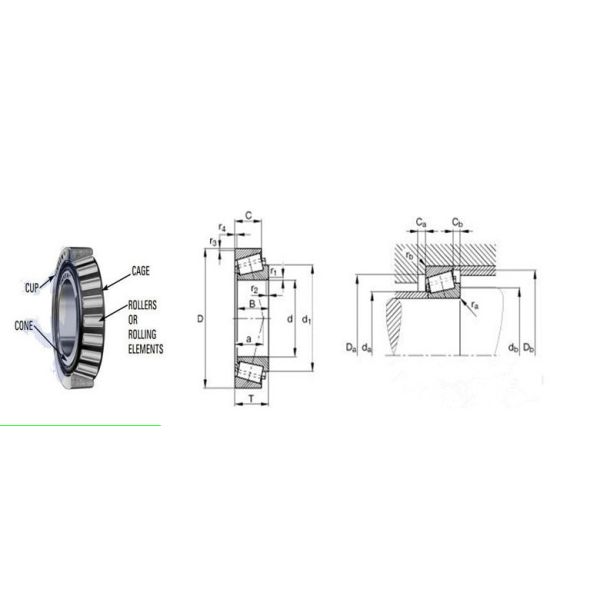

TAPER ROLLER BEARING DETAILS
Tapered roller bearing can be separated from the inner ring with roller cage components together and the outer ring can be installed separately. As amended by the roller and raceway contact at the contact line can reduce the stress concentration. The tapered roller bearing can withstand large radial and axial load. Tapered roller bearings can only pass one-way axial load, axial load in the opposite direction to pass on another with symmetrical installation of tapered roller bearing.
Tapered roller bearings are widely used in automotive, mill, mining, metallurgy, plastics machinery and other industries.
1. Taper roller bearings are the largest amount of single row circular cone roller bearings.
2. Single row circular cone roller bearings, which formed a circle and a group of tapered roller
3. Double row circular cone roller bearing outer ring (or in) is a whole.
Tapered Roller Bearing 33114
| Material | Gcr15 Material/Chrome Steel |
| Quality | P0,P6 |
| Structure | Taper roller |
| Cage | Pressed steel cage |
| Series | 30200series,30300series,32300series,31300series, 32000series,33000series,33200series,33100series,Inch series. |
| Certificate | ISO9001:2008,CE, SGS |
| Service | OEM&ODM |
| Market | Europe,South America,North America,Middle East,Southeast Asia |
| Application | used in many areas of large steel mills, aviation,aerospace,marine,railway,metallurgy,steel, mining,electricity,machinery manufacturing,printing, electronics,textiles,food,chemical,automotive etc. |
Non-standard Tapered Roller Series, Such as 30200 30300 32200 32300 31300 32000
| taper roller bearing 32200 series | taper roller bearing 31300 series | ||||||
| No. | d | D | T | No. | d | D | T |
| 32203 | 17 | 40 | 17.25 | ||||
| 32204 | 20 | 47 | 19.25 | 31304 | 20 | 52 | 16.25 |
| 32205 | 25 | 52 | 19.25 | 31305 | 25 | 62 | 18.25 |
| 32206 | 30 | 62 | 21.25 | 31306 | 30 | 72 | 20.75 |
| 32207 | 35 | 72 | 24.25 | 31307 | 35 | 80 | 22.75 |
| 32208 | 40 | 80 | 24.75 | 31308 | 40 | 90 | 25.25 |
| 32209 | 45 | 85 | 24.75 | 31309 | 45 | 100 | 27.25 |
| 32210 | 50 | 90 | 24.75 | 31310 | 50 | 110 | 29.25 |
| 32211 | 55 | 100 | 26.75 | 31311 | 55 | 120 | 31.5 |
| 32212 | 60 | 110 | 29.75 | 31312 | 60 | 130 | 33.5 |
| 32213 | 65 | 120 | 32.75 | 31313 | 65 | 140 | 36 |
| 32214 | 70 | 125 | 33.25 | 31314 | 70 | 150 | 38 |
| 32215 | 75 | 130 | 33.25 | 31315 | 75 | 160 | 40 |
| 32216 | 80 | 140 | 35.25 | 31316 | 80 | 170 | 42.5 |
| 32217 | 85 | 150 | 38.5 | 31317 | 85 | 180 | 44.5 |
| 32218 | 90 | 160 | 42.5 | 31318 | 90 | 190 | 46.5 |
| 32219 | 95 | 170 | 45.5 | 31319 | 95 | 200 | 49.5 |
| 32220 | 100 | 180 | 49 | 31320 | 100 | 215 | 56.5 |
| taper roller bearing 30200 series | taper roller bearing 3200 series | ||||||
| No. | d | D | T | No. | d | D | T |
| 30203 | 17 | 40 | 13.5 | 32004 | 20 | 42 | 15 |
| 30204 | 20 | 47 | 15.5 | 32005 | 25 | 47 | 15 |
| 30205 | 25 | 52 | 16.5 | 32006 | 30 | 55 | 17 |
| 30206 | 30 | 62 | 17.5 | 32007 | 35 | 62 | 18 |
| 30207 | 35 | 72 | 18.5 | 32008 | 40 | 68 | 19 |
| 30208 | 40 | 80 | 20 | 32009 | 45 | 75 | 20 |
| 30209 | 45 | 85 | 21 | 32010 | 50 | 80 | 20 |
| 30210 | 50 | 90 | 22 | 32011 | 55 | 90 | 23 |
| 30211 | 55 | 100 | 23 | 32012 | 60 | 95 | 23 |
| 30212 | 60 | 110 | 24 | 32013 | 65 | 100 | 23 |
| 30213 | 65 | 120 | 25 | 32014 | 70 | 110 | 25 |
| 30214 | 70 | 125 | 26.5 | 32015 | 75 | 115 | 25 |
| 30215 | 75 | 130 | 27.4 | 32016 | 80 | 125 | 29 |
| 30216 | 80 | 140 | 28.5 | 32017 | 85 | 130 | 29 |
| 30217 | 85 | 150 | 31 | 32018 | 90 | 140 | 32 |
| 30218 | 90 | 160 | 33 | 32019 | 95 | 145 | 32 |
| 30219 | 95 | 170 | 35 | 32020 | 100 | 150 | 32 |
| 30220 | 100 | 180 | 37.5 | 32021 | 90 | 140 | 32 |
Company Information
Shenzhen Youmeite Berings CO., ltd is branch company of shandong UMT bearingcorporation responsible for oversea marketing.
Our plant shandong UMT has been working in the filed of bearing design and
manufacturing for more than 10years now is taking a leading position in mainland china.
Our plant has more than 500 employees , including 30 bearing professional techincians;
more than 600 new bearing items can be completed each year.
we can produce many kinds of bearing as customer's requirement.
|
