| Categories | Glazed Tile Roll Forming Machine |
|---|---|
| Brand Name: | ZH |
| Model Number: | ZH1000 |
| Certification: | CE / SGS |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | $12500-18500/set |
| Payment Terms: | T / T or western Union, L/C |
| Supply Ability: | 120 sets per month |
| Delivery Time: | 35 working days after received your payment |
| Packaging Details: | Packed in plastic film cover |
| Tile type: | Colored steel |
| Usage: | Roof |
| Production Capacity: | 2 - 3 m / min |
| Warranty: | 1 Year |
| After-sale service provided: | Engineers Available |
| Welding: | three plus two international standard welding |
| Cylinda: | Double |

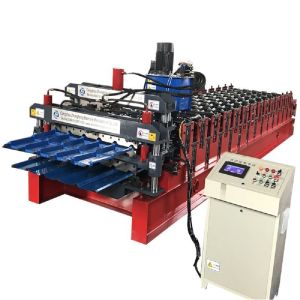

Full Automatic Double Glazed Tile Roll Forming Machine With Wave Pressing


Automatic Double Glazed Tile Roll Forming Machine
A good design makes machine performs outstanding.We have 15 year
experience R&D devoted to desing your machine.
Basic Information
Parameters of Automatic Double Glazed Tile Roll Forming Machine
| Item | Specification |
Raw Material | Pre-painted steel coil & galvanized coils |
| 0.3-0.8 | |
| 235-550 | |
| Roller material | 45# steel , coated with Chrome |
| Shaft for rollers | Solid shaft with 72mm,processed with cylindrical grinder |
| Forming speed(m/min) | About 20 |
| Output speed(m/min) | About 10 |
| Speed adjusting mode | Mitsubishi frequency transformer |
| Roller drive | Decelerating motor + Chain drive |
| Cutting mode | automatic hydraulic cut to length |
| Cutter material | Cr12 mould steel |
| Length measurement | Nemicon Encoder |
| Control mode | Mitsubishi PLC |
| Operating mode | Button + Mitsubishi Touch screen |
| Main motor power(kw) | 7.5KW |
| Total power(kw) | 9.9 KW |
| Decoiler (manual decoiler and hydraulic decoiler for option) | 1set |
| Feeding & guiding device | 1set |
| Main roll forming machine | 1set |
| Hydraulic cutting system | 1set |
| Controlling system | 1set |
| Run out table (auto. Stacker for option) | 1set |
We customize your machines! To customize machine, we would love to know:
1. Profile drawing
2. Raw material: the width(1250mm?), thickness(0.3-0.7mm?), and
yield strength of steel coil.
3. Voltage: designed per your requirement
4. Configuration requirement: Hydraulic or manual decoiler /
stacker?
