| Categories | Ball Thrust Bearing |
|---|---|
| Brand Name: | UMT, NTN, NSK, FAG, INA, TIMKEN or OEM |
| Model Number: | 51103 |
| Certification: | ISO9001:2008, ISO/TS16949, REACH, ROHS, MSDS, CQC |
| Place of Origin: | Germany, France, Italy, Japan, Sweden, China etc. |
| MOQ: | 10pieces |
| Price: | US$ 1 - 50 / piece |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal |
| Supply Ability: | 1,000,000 pieces per month |
| Delivery Time: | 2-7 days after receiving the payments or deposit |
| Packaging Details: | original package, Netural package, single package, Wooden package+pallet, Carton package+pallet, or as customerized. |
| Type: | Ball |
| Structure: | Thrust ball |
| Number of Row: | Single row |
| Seals Type: | Z, ZZ, RS, 2RZ, 2RS,OPEN |
| Precision Rating: | ABEC-1/ P0, ABEC-3/P6, ABEC-5/P5, ABEC-7/P4 |
| Material: | Chrome steel, Stainless steel |
| Cage: | Steel,Brass,Nylon |
| Clearance: | C2,C0,C3,C4,C5 etc. |
| Vibration: | V1,V2,V3 |
| Service: | OEM&ODM both available |
| Sample available: | Yes |
| Manufacturer: | Yes |
| ID: | 17 |
| OD: | 30 |
| Width: | 9 |

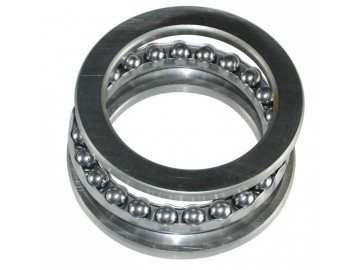

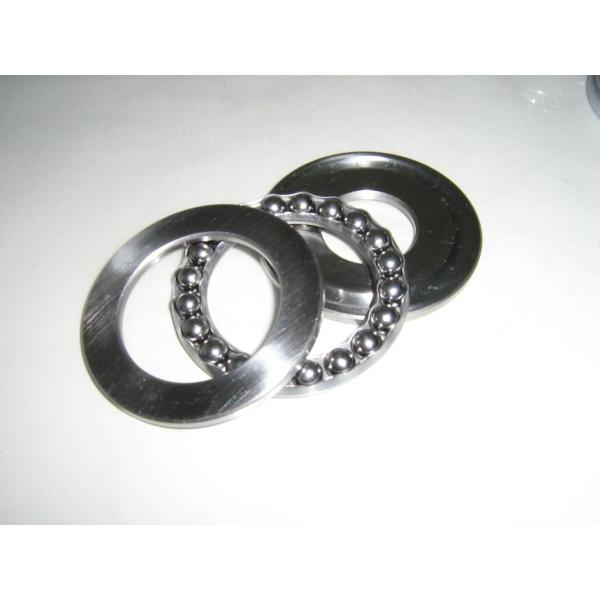

Brand thrust ball bearing 51103 all type of bearing can supply
Thrust ball bearing is a kind of separation type bearings, shaft circle, seat ring may and maintain shelf, steel ball component separated. Shaft with circle is Axis collar, seat combined with circle is combined bearing hole between the collar, and axis; a gap.
Speed is low, i.e.one-way thrust ball bearings can restrict axis
and the shell of a direction axial displacement, two-way bearing
can limit
Making the axial displacement of two directions.
| Brand thrust ball bearing 51103 all type of bearing can supply | |
| Model Number | 51103 Thrust ball bearing |
| Structure | Thrust ball |
| Type | Ball |
| Inside Diameter | 17mm |
| Outside Diameter | 30mm |
| Width | 9mm |
| Net weight | 0.028kg |
| Seals Type | Z, ZZ, RS, 2RZ, 2RS,OPEN |
| Number of Row | Single Row |
| Material | Chrome steel, Stainless steel |
| Cage | Brass, Steel, Nylon |
| Vibration Level | V1, V2, V3 |
| Clearance | C2, C0, C3, C4, C5 etc. |
| Precision Rating | P0, P6, P5, P4, P2 |
| Hardness | 59-63HRC |
| Service | OEM&ODM both available |
| Sample available | Yes |
| Manufacturer | Yes |
| Quality guaranteed | Yes |
| Certificate | ISO9001:2008, ISO/TS16949 |
| Application/Function | Automotive, truck, tractors, construction machinery, Electric Tools, Sports Apparatus, Office equipment, Medical devices, Defense, Nuclear, Electric Power Generation, Wind Energy, Robotics, Medical & Dental, Agriculture, Food Processing etc. |
| Other Service | Design service, Buyer label service |
| Packaging Details | Industrial Packing, Individual Boxed Packing, or OEM |
| Delivery Detail | 2-7 days after receiving the payments or deposit |
Series
| N0. | OLD NO. | mm | mm | mm | Dynamic | Static | Grease | Oil | Kg/pcs |
| Cr | Cor | r/min | r/min | ||||||
| 51100 | 8100 | 10 | 24 | 9 | 10 | 14 | 6500 | 10000 | 0.02 |
| 51101 | 8101 | 12 | 26 | 9 | 10.3 | 15.4 | 6500 | 10000 | 0.022 |
| 51102 | 8102 | 15 | 28 | 9 | 10.5 | 16.8 | 6100 | 9400 | 0.024 |
| 51103 | 8103 | 17 | 30 | 9 | 10.8 | 18.2 | 6100 | 9400 | 0.028 |
| 51104 | 8104 | 20 | 35 | 10 | 14.2 | 24.7 | 5100 | 7900 | 0.04 |
| 51105 | 8105 | 25 | 42 | 11 | 19.5 | 37.2 | 4400 | 6800 | 0.059 |
| 51106 | 8106 | 30 | 47 | 11 | 20.4 | 42.2 | 4300 | 6600 | 0.068 |
| 51107 | 8107 | 35 | 52 | 12 | 20.4 | 44.7 | 3900 | 6000 | 0.09 |
| 51108 | 8108 | 40 | 60 | 13 | 26.9 | 62.8 | 3400 | 5300 | 0.12 |
| 51109 | 8109 | 45 | 65 | 14 | 27.8 | 69.1 | 3200 | 5000 | 0.15 |
| 51110 | 8110 | 50 | 70 | 14 | 28.8 | 75.4 | 3100 | 4800 | 0.16 |
| 511111 | - | 55 | 78 | 16 | — | — | — | — | 0.24 |
| 51112 | 8112 | 60 | 85 | 17 | 41.4 | 113 | 2600 | 4000 | 0.29 |
| 51113 | 8113 | 65 | 90 | 17 | 41.7 | 117 | 2400 | 3700 | 0.34 |
| 51114 | 8114 | 70 | 95 | 18 | 43 | 127 | 2300 | 3600 | 0.36 |
| 51115 | 8115 | 75 | 100 | 19 | 42.3 | 127 | 2200 | 3400 | 0.42 |
| 51116 | 8116 | 80 | 105 | 19 | 44.6 | 141 | 2100 | 3300 | 0.43 |
| 51117 | 8117 | 85 | 110 | 19 | 45.9 | 150 | 2100 | 3200 | 0.46 |
| 51118 | 8118 | 90 | 120 | 22 | 59.7 | 190 | 1900 | 2900 | 0.68 |
| 51120 | 8120 | 100 | 135 | 25 | 85 | 268 | 1600 | 2500 | 0.99 |
| 51122 | 8122 | 110 | 145 | 25 | 87.1 | 288 | 1600 | 2400 | 1.08 |
| 51124 | 8124 | 120 | 155 | 25 | 89 | 308 | 1500 | 2300 | 1.16 |
| N0. | OLD NO. | mm | mm | mm | Dynamic | Static | Grease | Oil | Kg/pcs |
| Cr | Cor | r/min | r/min | ||||||
| 51209 | 8209 | 45 | 73 | 20 | 47.7 | 105 | 2600 | 4000 | 0.32 |
| 51210 | 8210 | 50 | 78 | 22 | 48.5 | 111 | 2300 | 3600 | 0.39 |
| 51211 | 8211 | 55 | 90 | 25 | 69.4 | 159 | 2100 | 3200 | 0.61 |
| 51212 | 8212 | 60 | 95 | 26 | 73.6 | 179 | 1900 | 3000 | 0.69 |
| 51213 | 8213 | 65 | 100 | 27 | 74.8 | 189 | 1900 | 2900 | 0.77 |
| 51214 | 8214 | 70 | 105 | 27 | 73.6 | 189 | 1800 | 2800 | 0.81 |
| 51215 | 8215 | 75 | 110 | 27 | 77.4 | 209 | 1800 | 2700 | 0.86 |
| 51216 | 8216 | 80 | 115 | 28 | 78.5 | 218 | 1700 | 2600 | 0.95 |
| 51217 | 8217 | 85 | 125 | 31 | 92.3 | 251 | 1500 | 2300 | 1.29 |
| 51218 | 8218 | 90 | 135 | 35 | 117 | 326 | 1400 | 2100 | 1.77 |
| 51219 | - | 95 | 140 | 40 | — | — | — | — | 2.2 |
| 51220 | 8220 | 100 | 150 | 38 | 147 | 410 | 1200 | 1900 | 2.36 |
| 51222 | 8222 | 110 | 160 | 38 | 148 | 431 | 1200 | 1800 | 2.57 |
| 51224 | 8224 | 120 | 170 | 39 | 154 | 472 | 1100 | 1700 | 2.86 |
| 51226 | 8226 | 130 | 190 | 45 | 203 | 622 | 970 | 1500 | 4.09 |
| 51228 | 8228 | 140 | 200 | 46 | 215 | 669 | 940 | 1450 | 4.46 |
| 51230 | 8230 | 150 | 215 | 50 | 244 | 768 | 840 | 1300 | 5.64 |
| 51232 | 8232 | 160 | 225 | 51 | 247 | 803 | 810 | 1250 | 6.53 |
| 51234 | 8234 | 170 | 240 | 55 | 269 | 874 | 750 | 1150 | 8.12 |
| 51236 | 806 | 180 | 250 | 56 | 294 | 986 | 710 | 1100 | 8.68 |
| 51238 | 8238 | 190 | 270 | 62 | 298 | 1010 | 650 | 1000 | 11.7 |
| 51240 | 8240 | 200 | 280 | 62 | 314 | 1110 | 620 | 950 | 12.2 |
Our other main products:
Deep groove ball bearing, Taper roller bearing, Ceramic ball
bearing, Cylindrical roller bearing, Spherical roller bearing,
Self-aligning bearing, Adapter sleeve, Angular contact ball
bearing, Thrust ball bearing, Thrust roller bearing, Needle roller
bearing, Spherical plain bearings, Linear bearing, Whell hub
bearing, Special bearing
Shenzhen Youmeite Berings CO., ltd is branch company of shandong UMT bearing corporation responsible
for oversea marketing. Our plant shandong UMT has been working in
the filed of bearing design and manufacturing for more than 10years now is taking a leading position in mainland china. Our plant has
more than 500 employees , including 30 bearing professional techincians; more than 600 new bearing items can be completed each year. we can produce all kinds of bearing as
customer's requirement.
