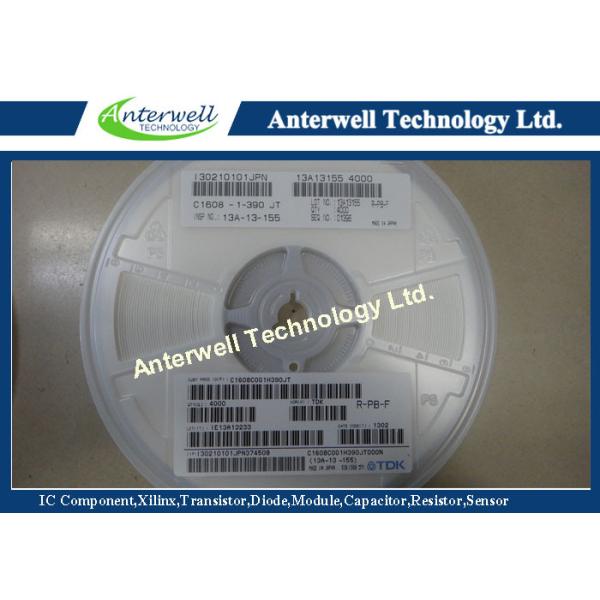

Home SMD Ceramic Capacitor Chip C1608COG1H390JT For General

Home SMD Ceramic Capacitor Chip C1608COG1H390JT For General

1) Series Name

C: General Purpose CKC: Array Capacitor

CKG: Stacked Capacitor (MEGACAP Type)

CLL: Ultra Low Inductance

2) Case Size Code JIS(EIA)

C: 0402(01005), 0510(0204), 0603(0201), 0816(0306), 1005(0402), 1220(0508), 1608(0603), 1632(0612), 2012(0805), 3216(1206), 3225(1210), 4520(1808), 4532(1812), 5750(2220), 7563(3025) CKC: M25(1327), L22(0805), L44(0805), A43(1206)

CKG: 32K, 45K,45N, 57K,57N

CLL: C1A(0603), E1A(0805)

3) Temperature Characteristics

CH: -25 to +85o C, 0±60ppm/ oC C0G: -55 to +125o C, 0±30ppm/ oC

JB: -25 to +85o C, ±10%

X5R: -55 to +85o C, ±15

X6S: -55 to +105o C, ±22%

X7R: -55 to +125o C, ±15%

X7S: -55 to +125o C, ±22%

X7T: -55 to +125o C, +22/-33%

X8R: -55 to +150o C, ±15%

4) Rated Voltage Code

0G:4V, 0J:6.3V, 1A:10V, 1C:16V,

1E:25V, 1V:35V, 1H:50V, 2A:100V, 2D:200V,

2E:250V, 2W:450V, 2H:500V,

2J:630V, 3A:1000V, 3D:2000V,

3F: 3000V

5) Nominal Capacitance

(pF) The capacitance is expressed in three digit codes and in units of pico Farads

(pF). The first and second digits identify the first and second significant figures of the capacitance.

The third digit identifies the multiplier. R designates a decimal point.

Ex. 105 = 1,000,000pF = 1,000nF = 1μF

PRODUCT IDENTIFICATION

C 1005 CH 1H 100 D □

(1) (2) (3) (4) (5) (6) (7)

Dimensions L×W

0603 0.6×0.3mm

1005 1.0×0.5mm

1608 1.6×0.8mm

2012 2.0×1.25mm

3216 3.2×1.6mm

Capacitance temperature characteristics

Temperature characteristics Capacitance change Temperature range

C0G 0±30ppm/°C –55 to +125°C

Temperature characteristics Capacitance change Temperature range

X7R ±15% –55 to +125°C

X5R ±15% –55 to +85°C

Y5V +22, –82% –30 to +85°C

Rated voltage Edc
