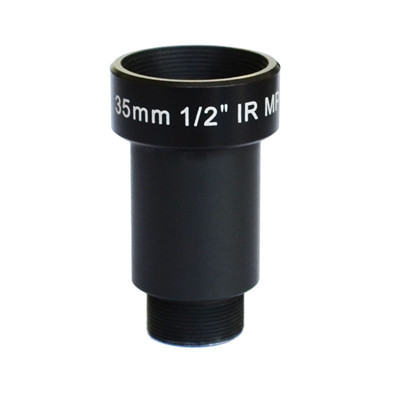

1/2" 35mm 5Megapixel F2.5 S Mount M12x0.5 mount Non-Distortion IR Board Lens, 35mm lens

Non distortion Lens

● High definition <0.5% low distortion lens
● High resolution compatible with 1.3-5 Mega-pixel cameras
● Broad band confocal design suitable for both Visible and NIR applications
● Compact design ideal for integration
● Cost-effective for recognition applications

1/2" 35mm 5Megapixel F2.5 M12*0.5 Mount S Mount High Quality Non-Distortion IR Board Lens

Model 123525MP
IMAGE FORMAT 1/2"
SENSOR CCD/CMOS
FOCAL LENGTH 35mm
RESOLUTION 5MP, 200lp/mm
F.O.V.(D*H*V) 13.1°*11°*7.8° (1/2”), 9.8°*7.8°*5.9° (1/3”)
APERTURE F2.5
EFFECTIVE APERTURE Φ12.8mm(front), Φ7.92mm(rear)
OPTICAL DISTORTION -0.045%
IRIS Fixed
M.O.D. 0.4m
MOUNT M12XP0.5 - 6g
B.F.L. 14.49mm
T.T.L. 40.7mm
LENS CONSTRUCTURE 5-4
DIMENSION Φ20*33.4mm

Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional

- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com

We are professional supplier of camera lenses and keeping providing innovative optical solutions and products to the market. We specialize in Megapixel Fisheye Lenses, Megapixel S-Mount(M12x0.5) Board Lenses, Megapixel M10/M9/M8/M7/M6/M5 Mount Lenses, CCTV Lenses/Medical Lenses, Pinhole Lenses, C Mount Lenses/ITS Lenses for Highway monitoring application, Vari-focal M12x0.5 Mount Lenses, Vari-Focal CS Mount Lenses, Megapixel Vari-Focal C/CS Mount Lenses, Fixed/Mono-Focal CS Mount Lenses, Megapixel Fixed/Mono-Focal CS Mount Lenses, etc.

We Keep providing new lens models for high-definition cameras in many applications, including Day& Night security, IP surveillance, Panoramic security, Video conferencing, Motion capture, Recognition, Sports, Machine Vision / FA, Automotive, Medical, etc.

We are committed to the R&D, design, manufacture and marketing of an extensive line of optical products. Any lens you need we could source, design and manufacture for you.

If you are interested in our optical products, please feel free to contact us. We are looking forward to our future cooperation and long-term partnership.
