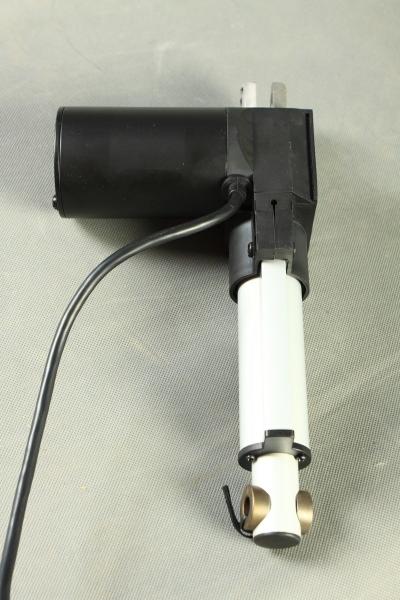

24v linear actuators with remote controller and handset, 300mm stroke, 4000N force, CE noise free linear actuator IP43

No Compromise On Quality

We are directed towards assisting our clients with most profitable & cost-effective solutions.
Our workforce is leading market research time to time so as to maintain movement with the modern market development, forthcoming technologies and growing demands of the buyers. We always check these on the grounds of well-defined parameters of quality, so that, these can guarantee excellent performance.

WARRANTY OF LINEAR ACTUATOR

We guarantee that all products (LINEAR ACTUATOR) you receive will be brand new, and have been thoroughly tested for defect and performance before being shipped to you. At our company we put our products to the test, stressing their performance in heat, cold, liquid, and under heavy loads and high duty cycles. The specifications listed on our products aren't just approximations; they're backed up by hours and days of testing. We're so confident in our actuators quality, performance, and endurance, that we proudly offer the industry leading 18 month warranty.
All linear actuators produced and sold by our company are covered by our comprehensive 18 month warranty against defect or flaw. If we sell you a product, and it stops working before 18 month pass, we will replace it free of charge. However, the product has to only have been used within its rated parameters and environment conditions.

Specification of Electric Linear Actuator:

• Voltage: 24VDC or 12VDC, Permanent Magnet Motor Drive
• Standard Stroke of Electric Linear Actuator: 100/150/200/250/300/350/400 mm,
• special stroke are available according to customer' requirement.
• Max. Thrust of HB-DJ801 Electric Linear Actuator: 1000N, 3000N, 6000N
• Free Load Speed of Electric Linear Actuator: 5mm/s～25mm/s
• Rated Load Speed of Electric Linear Actuator: 5mm/s
• Duty cycle of Electric Linear Actuator: 10%
• Ambient temperature -25°C (-13F) to +65°C (149F)
• Standard protection class of Electric Linear Actuator: IP 43
• Built-in integral limit switch, not adjustable after leaving factory
• Low noise design, dB<53(A);
• CE Certificated Electric Linear Actuator
•

Standard Stroke of Electric Linear Actuator and Min. Install Dimension

Technical Specification of Electric Linear Actuator

Drawing of linear actuator

Features Of Linear Actuator
Robust and reliable electric linear actuator, high-strength aluminum housing CNC machined to ensure high degree of accuracy.
ACME screw drive for a higher efficiency, halved energy consumption and 25% duty cycle.
90° design. Worm-wheel geared motor.
Dynamic push-pull load up to 6,000 N
Linear speed up to 25 mm/s
Linear actuator available with 12V, 24V, DC motors
Suitable for industrial automation and indoor mechanical applications
Check out other fields of application of ours linear actuators.
We need below info of linear actuator to complete the quotation.
1- voltage (v dc)
2- stroke (mm)
3- load (kg or n)
4- other special requirement
5- simple description of application
6- quantity
7- delivery address if freight prepaid

Dear Clients,
Linear actuators are customized and each model has his own temper.
Just leave your required parameters to us.
We will find a way to realize your design.
Good price and quality are always available.
Looking forward to your email.
