5-2301994-4 Industrial RJ45 Magjack With Integrated Magnetics

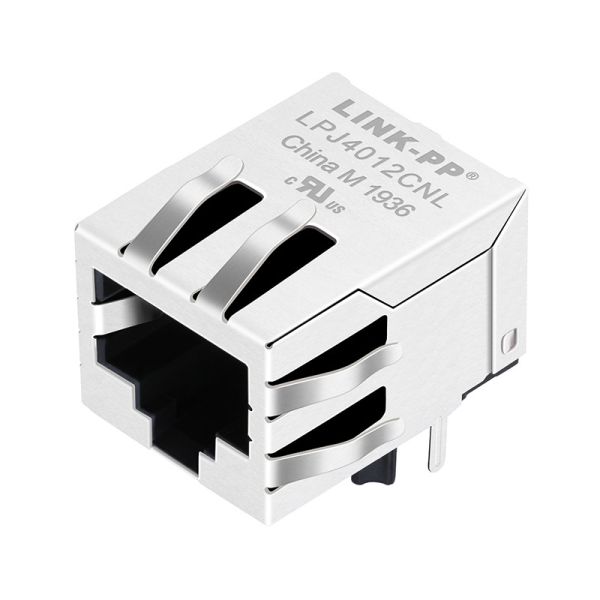

Product Overview

The TE Connectivity 5-2301994-4 is a single-port, shielded RJ45 connector with integrated magnetics designed for 10/100 Base-T Ethernet applications. It offers excellent EMI suppression, reliable signal integrity, and durability in industrial environments. With a right-angle through-hole design, LCP housing, and gold-plated contacts, this connector ensures stable performance across a wide -40 °C to +85 °C temperature range.

Key Highlights

• RJ45 with integrated magnetics (1 × 1, single port)
• 10/100 Base-T Ethernet performance, Cat 5 rated
• Shielded housing for enhanced EMI protection
• Right-angle, through-hole solder termination
• Industrial temperature range: -40 °C to +85 °C
• LCP housing, gold-plated copper alloy contacts
• UL 94 V-0 flammability rating

Features of 5-2301994-4 Single Port RJ45 Connector:

1. Product Type Features

• Modular Jack & Plug Interface Type: RJ45 with Integrated Magnetics
• Modular Connector Style: Jack
• Grounding Options: PCB and Panel Ground
• Connector & Contact Terminates To: Printed Circuit Board

2. Configuration Features

• Indicator Type: No LEDs
• Port Configuration : 1 x 1 Single Port
• Connector Contact Density: Standard
• Number of Positions: 8
• Number of Loaded Positions: 8
• PCB Mount Orientation: Right Angle
• Number of PCB Ground Tabs: 2
• Number of Panel Ground Tabs: 6
• Panel Ground Location: Top and Side

3. Body Features

• Shield Material: Brass
• Shield Plating Material: Nickel
• Modular Jack Latch Orientation: Standard - Latch Down
• Connector Profile: Standard
• PCB Ground Tab Location: 3.05 mm [ .12 in ]
• Shield Plating Finish: Matte
• Insulator Material: LCP
• PCB Retention Feature Material: LCP

4. Contact Features

• PCB Contact Termination Area Plating Material: Tin
• Contact Underplating Material: Nickel
• PCB Contact Termination Area Plating Material Finish: Matte
• Contact Mating Area Plating Material: Gold
• Contact Base Material: Copper Alloy
• Contact Mating Area Plating Material Thickness: .76 µm [ 30 µin ]

5. Termination Features

• Termination Method: Through Hole - Solder

6. Housing Features

• Mating Entry Location: Side
• Housing Color: Black
• Housing Material: LCP (Liquid Crystal Polymer)

​

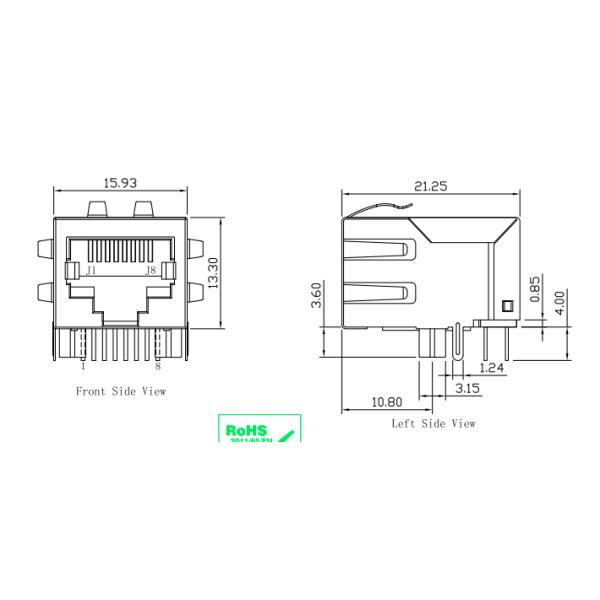

5-2301994-4 (LPJ4012CNL) Specifications and Datasheet:
