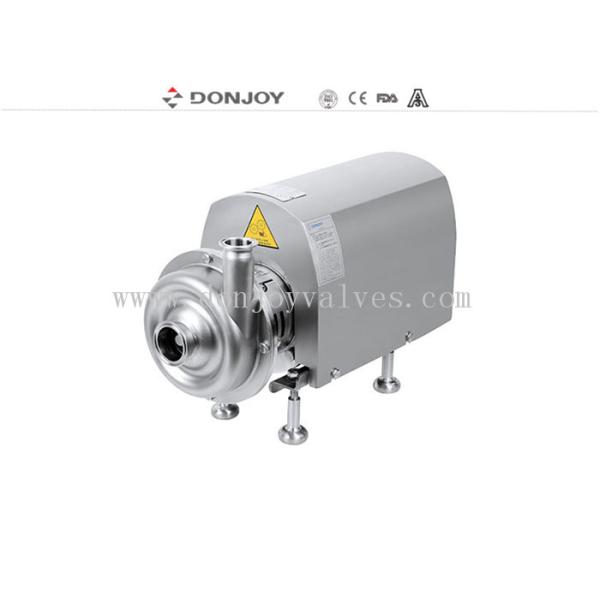

BS Close impeller stainless steel 316L Sanitary ocentrifugal pump for alcohol trasfer

BS Close impeller stainless steel 316L Sanitary ocentrifugal pump for alcohol trasfer

Quick Detail: Mechnical Seal Pump, Food pump, Milk Pump, Beer Pump, Beverage Pump, Water Pump

Description

Options

1. Mechanical seal: SIC / SICE/ EPDM, TC / TC/EPDM

2. Gasket: viton / NBR/EPDM

3. Connection: Thread, Clamp, Flange (DIN, SMS, RJT, IDF), Welding

4. Motor: 2900, 1450, 3600 Min / 1,50HZ, 60HZ

Specifications

What is Hygienic Centrifuge Pumps?

Donjoy hygienic centrifuge pumps are used in food, pharmaceutical and cosmetics industries. Clamp type connection is used. 316 L stainless steel is used for body material.

Special design of its fan and cover it reduces friction and eliminates non hygienic blind spots. Also with the special design velocity of the fluid reaches maximum levels and with easy montage and de-montage it gives user easy maintenance and cleaning option.
Technical features:
• Max flow rate: 150m3/h
• Max Head: 70m
• Max Temperature :120oC(30 minutes at CIP/SIP applications)
• Max rpm :3600 rpm
Materials:
• Body and Fan: AISI 316L
• Gasket: EPDM (suitable for food)
• Mechanical shaft seal

Applications

1. This pump is manufactured in stianless steel and with a shrouded motor.

2.Sanitary and cost-efficient design makes it perfect for the daries, beverages, foods-processing,pharmaceutical and fine chemical industries.

Competitive Advantage
“DONJOY is the only company that pass nine series of products by American 3A certification organization in Asian sanitary pumps and valves field.”

Model table

Drawing

DONJOY general-Catalog(1-20).pdf

DONJOY general-Catalogs(21-40 page).pdf

Please check the form below to choose which model is suitable for you.

Donjoy was founded in 1993, with registered capital RMB105.58 million(about 15million USD) We focus on developing high-precision PID valve positioner, Valve Control unit, Valve Position feedback device, intelligent automatic control valve, proportional valve, process control valve, high purity pump, homogeneous mixing pump, cleaning technology, pressure vessel, pipeline safety control technology, high clean pipe fitting&pipeline accessories and integrating r&d, production and sales as an integrated national high-tech enterprises. Donjoy’s products are widely used in bio-pharmaceutical, food and beverage, wine, fine chemicals and other industrial fields. Donjoy’s leading technology and innovation solutions meets growing demand in the industry of bio-pharmaceutical, food and beverage from the whole world, special emerging market.

Raw material, processing technology, welding technology, surface treatment and other technology from Donjoy have achieved advanced level in international market. It also complies with a series of international standards and specifications such as ASME BPE, EHEDG, FDA and 3A , It has passed the EU Pressure Equipment Directive (PED-97/23/EC) and (MD-06/42/EC) issued by the German TÜV organization; the 3-A health standard certification issued by the 3A organization; China Safety Valve Special Manufacturing Equipment (TS) License , China Quality Certification Center (CQC) and Quality Management System Certification (ISO9001:2015) and many other international authoritative certifications.

With advanced technology, excellent quality and perfect after-sales service system, Donjoy was awarded as National High-tech Enterprise, Provincial Famous Trademark, Science and Technology Enterprise, Innovative Enterprise, Patent Demonstration Enterprise, R & D Center Enterprise, AAA Credit Enterprise and many other honorary
