Great quality AC servo motor 90ST-M02430 0.75KW 3000RPM 2.4Nm
Specification:
Motor model | 90ST-M02430 | 90ST-M03520 | 90ST-M04025 | ||||||||||||||||||||||
Rated power(KW) | 0.75 | 0.75 | 1.0 | ||||||||||||||||||||||
Rated voltage(V) | 220 | 220 | 220 | ||||||||||||||||||||||
Rated current(A) | 3 | 3 | 4 | ||||||||||||||||||||||
Rated speed(rpm) | 3000 | 2000 | 2500 | ||||||||||||||||||||||
Holding torque(N.m) | 2.4 | 3.5 | 4 | ||||||||||||||||||||||
Peak torque(N.m) | 7.1 | 10.5 | 12 | ||||||||||||||||||||||
Peak current(A) | 9 | 9 | 12 | ||||||||||||||||||||||
Voltage constant(V/1000r/min) | 51 | 67 | 60 | ||||||||||||||||||||||
Torque coefficient(N.m/A) | 0.8 | 1.2 | 1.0 | ||||||||||||||||||||||
Rotor inertia(Kg.m2) | 2.45x10-4 | 3.4x10-4 | 3.7x10-4 | ||||||||||||||||||||||
Line-Line Resistance(Ω) | 3.2 | 4.06 | 2.69 | ||||||||||||||||||||||
Line-Line Inductance(mH) | 7.0 | 9.7 | 6.21 | ||||||||||||||||||||||
Mechanical time-constant(Ms) | 2.2 | 2.39 | 2.3 | ||||||||||||||||||||||
Weight(Kg) | 3.1 | 3.9 | 4.2 | ||||||||||||||||||||||
Motor length L(mm) | 150 | 172 | 182 | ||||||||||||||||||||||
Encoder line number(PPR) | 2500 | ||||||||||||||||||||||||
Insulation class | Class F | ||||||||||||||||||||||||
Safety class | IP65 | ||||||||||||||||||||||||
The operating of Environmental Conditions | Temperature: -20°C ~ +40°C Humidity: Below 90%RH No dewing | ||||||||||||||||||||||||
Motor winding plug | Winding lead wire | U(red) | V(yellow) | W(blue) | PE(yellow,green/black) | ||||||||||||||||||||
Plug serial number | 1 | 2 | 3 | 4 | |||||||||||||||||||||
Photoelectric encoder socket (15 pin) | Signal lead wire | 5V | 0V | B+ | Z- | U+ | Z+ | U- | A+ | V+ | W+ | V- | A- | B- | W- | PE | |||||||||
Plug serial number | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 1 | ||||||||||
Absolute encoder socket (7 pin) | Signal lead wire | E- | E+ | SD- | 0V | SD+ | +5V | PE | |||||||||||||||||
Plug serial number | 2 | 3 | 4 | 5 | 6 | 7 | 1 | ||||||||||||||||||
Please contact the Jingbo technical department if you have other
special requirements
Installation precaution:
1. Installation/disassembly components coupled to the motor shaft
end, do not hit shaft hard to prevent the other side of motor shaft
encoder was knocked out bad.
2. Striving to make the best of its shaft to prevent vibration and
bearing damage.

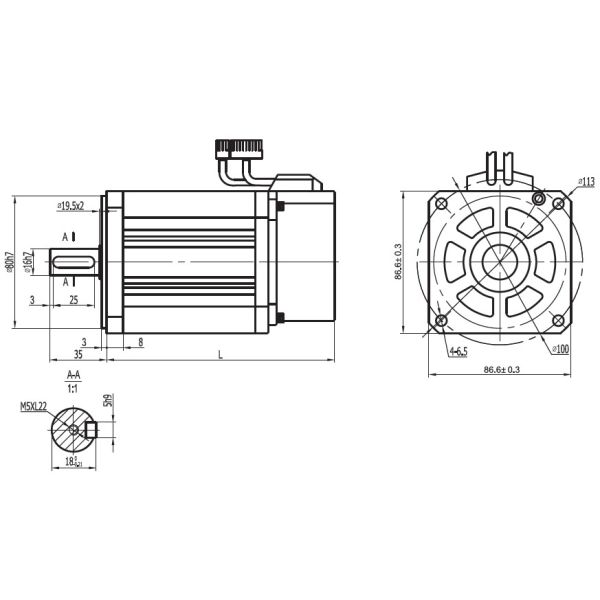

Installation dimension: unit=mm
|
