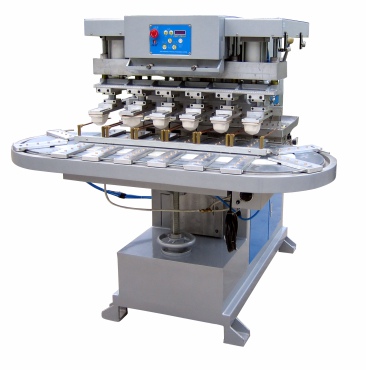

Tampografia with Carousal

Tampografia with Carousal
Print 6 colors one time, excellet decorating results widely used in the field of toys, gifts .With conveyer worktable to supply high printing efficiency and Put 18 pcs objects to print. Coin Aluminium structure ensure more stabilization and long life.Opend inkwell and ink roller to supply ink for operation simply.
Price Terms:FOB GuangZhou
Payment Terms:T/T LC
Packing:Wooden case
Lead Time:Within 5 days
Standards Certificate:ISO9001-2000
Power Supply:110/220v 60/50Hz 1 phase
Colour Painted:Sliver and Blue
Specifications:
1.Max. printing size:80x240mm　
2.Max steel plate Size:100*300mm
3.Speed (Pieces/minute): 16
4.Machine size(L x W x H):165*138*152　　
5.Net Weight: 450 kg　　
6.Air Pressure(bar) :5　
7.Power: 220V/50Hz　60w
Advantages:
1. Microprocessor control for each function ;
2.4-Digit auto counter built-in;
3.Coin aluminium structure frame ensures sturdiness;
4.Ink roller used for ink applying is easy to remove and clean;
5.Independent stroke and speed adjustment for pad up/down;
6.Auto balanced doctor blade ensures that ink can be scraped cleanly and completely;
7.Adjustable printing speed meets different printing requirements;
8.Ink roller keeps working while pad doesn't lower down .
Machine Fittings:
1. One steel plate,
2. One pad
3. Two blades
4. A tool box.
Ship Date︰ By sea:
within 30 days after receive T/T .
Description:

This mode of pad printer is wide used in the field of plastics, toys, gifts, lamps. it can print one colour on your products per time ,also it can print muti-colour by using many sets pad printer. Opend inkwell to supply ink for operation simple; coin aluminium structure frame ensure strongly and light;
