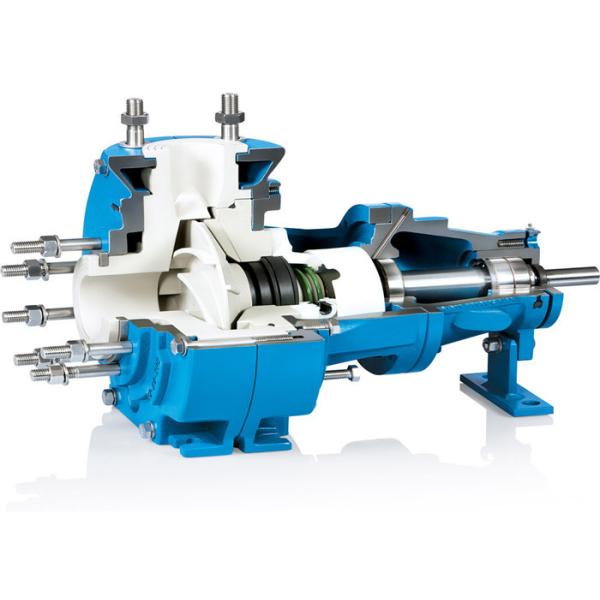

Chemical Process Stainless Steel Overhung Centrifugal Pump With Different Shaft

Overhung Duplex Stainless Steel Chemical Process Pump With Different Shaft

Description:

Chemical pump is single-stage end-suction (axial suction) cantilever type centrifugal pump, which is used to transport corrosive liquid with viscosity similar to water and without solid particles. The marked and rated performances and dimensions adopt international standard.

The pump has such characteristics as wide range of performance, high efficiency, high mechanical, chemical and physical level and convenient maintenance etc. It is energy saving type product recommended by the nation with its efficiency being 5% greater than that of other similar model pump.
The temperature of transported media of chemical pump which is -20 to 105 C deg .Through adopting cooling method, it can transport media with higher temperature if necessary, and is applied to transport various corrosive media or media in which pollution is forbidden similar to water in such industries as chemical industry, petroleum, metallurgy, electric power, papermaking, food, pharmacy and synthetic fiber etc

Feature:

Pump body: adopting foot supporting structure;

Impeller: closed, semi-open and full-open types; the CZ series pump’s axial force is mainly balanced by the back blade or balance hole while the residual axial force is born by the bearing.

Pump cover: it works with the sealing gland to form a sealing cavity and the standard cavity dimensions can be provided with various seal types.

Shaft seal: according to different working conditions, such seal types can be adopted as packing seal, single end face mechanical seal, double end face mechanical seal, and mechanical seal in series.

Bearings:it adopts the thin oil lubrication mode and the oil level is controlled by a constant level oil cup, that fully ensuring the bearings working in a good lubrication state.

Shaft: It’s protected by a bushing to prevent the medium from contacting the shaft directly to improve the shaft’s service life.

Application:

Hot and cold water distribution and circuits
Water supply for houses, high buildings and hotels
For all industries where chemically neutral, on-explosive clear liquids without abrasive particles

Paragon Industrial Corporation is established in 2007, which is located in Hangzhou, Zhejiang China. It is an enterprise consist of paragon industrial Corp., Hangzhou JoHo Imp &Exp Co.Ltd ,Hangzhou Zhenxing pumps factory and Hangzhou Sixin pumps manufactory. The company is mainly engaged in developing and producing non clog centrifugal pump, paper and pulp pumps, refiner, agitator, vacuum pump, chemical pump and so on.

Our pumps are the revised model of Anderitz, So they are good at efficiency, energy-saving, low noise and environmental protection, They are exported to Southeast Asia, like Indonesia and Singapore for more than 8 years.

Our target markets are paper and pulp making industry and chemical processing industrial . Paragon has experienced engineers who can provide the users optimal solutions based on the practical situation.

We also provide Clients with many services, such as complete equipments , installing, maintenance and mountings. We guarantee the Clients with competitive products, timely delivery and satisfied service.
