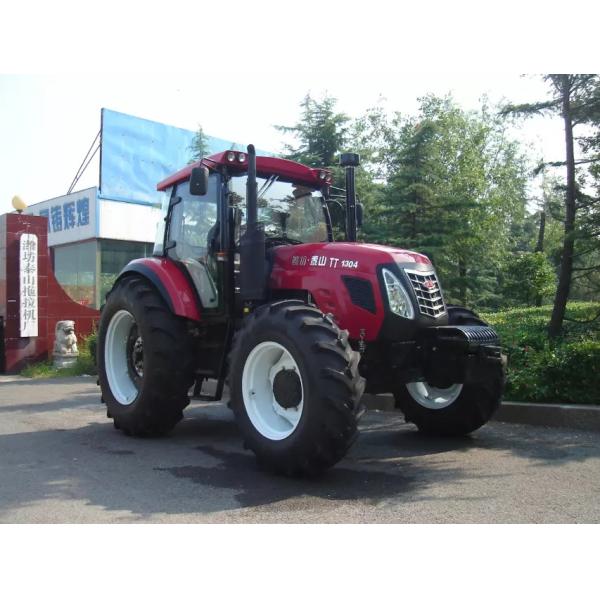

Name: 130HP farm tractor TT1304 44 4wheel drive Agricultural farm equipment
Brand: KATOP
Price: 1 USD

Home > Farm Machinery >

130HP farm tractor TT1304 4*4 4wheel drive Agricultural farm equipment

Categories	Agricultural tractors & Equipment
Brand Name:	KATOP
Model Number:	TT1304
Certification:	CE
Place of Origin:	Shandong
MOQ:	8 units
Payment Terms:	L/C, T/T
Supply Ability:	300 UNITS per month
Delivery Time:	15 days
Packaging Details:	Iron frame in 20GP container
Engine:	YUCHAI 4105 TURBO
Power:	95.6KW(130HP)
Driving Type:	4*4
Hydraulic Valve::	2-Way Valve
Dimension:	4593x2050x2810mm
Clutch:	Dry-type, Double-acting
Gear box:	16F+8R
Size of Tire:	Front:11.2-24 Rear: 16.9-34
Wheel base:	2195mm
Min.Ground Clearance:	379mm

Contact Now

Add to Cart

Company Info.

Shandong Katop Machinery Co.,Ltd.

View Contact Details

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

MODEL	TT1304
DRIVE TYPE	4x4
ENGINE
ENGINE	YUCHAI 4105 TURBO
OIL TANK(L)	240
Rated speed (r/min)	2300
ENGINE RATED POWER(kw)	95.6
MIN OIL CONSUPTION(g/kw·h)	≤242
Minimum fuel consumption at full load( L/h)	20.08
TRANSMASSION
CLUTCH	DRY , DOUBLE CLUTCH
PTO SPPED(rpm)	540/1000 or 760/1000(optional)
SHAFT	16F+8R
HYDRUALIC SYSTEM
HYDRUALIC VALVE	2-Way
Three point linkage
lifting force at 610mm KN	＞16

Technical parameters
Dimension LxWxH mm	4593x2050x2810
WHEEL BASE(mm)	2195
FRONT TREAD(mm)	1610
REAR TREAD(mm)	1620-2020 (usual 1620)
MIN GROUND CLEARENCE(mm)	379
FRONT TYRE	12.4-24
REAR TYRE	16.9-34
EXW	$19450
