| Categories | Deep Groove Ball Bearings |
|---|---|
| Brand Name: | KOYO, NSK, THK, Trieternal or OEM |
| Model Number: | 606 Z ZZ RS 2RS |
| Place of Origin: | CHINA |
| MOQ: | 5 pcs |
| Price: | 0.1-10 usd /pc |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000000pcs/month |
| Delivery Time: | 2-6 days after receiving the deposit |
| Packaging Details: | Original package, single package, Wooden package+pallet, Carton package+pallet, or as customerized. |
| Material: | chrome steel , carbon ,ceramic and so on |
| Structure: | Deep Groove |
| Number of Row: | Single Row |
| Seals Type: | Z ZZ RS 2RS OPEN |
| Precision Rating: | P0,P5,P6 |
| bearing606 Z ZZ RS 2RS: | 6×17×6mm |
| Use the feature: | High speed , high precision , loss noisy |
| Certification: | ISO |
| Sample: | Available |
| weight: | 0.0057 KG |
Product Description

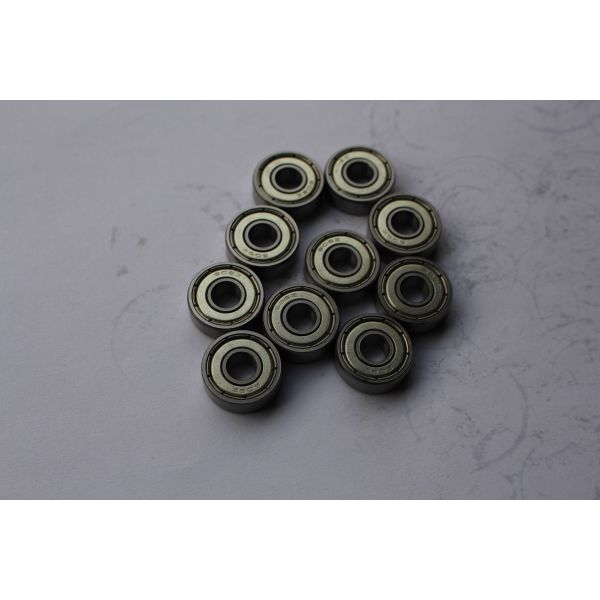

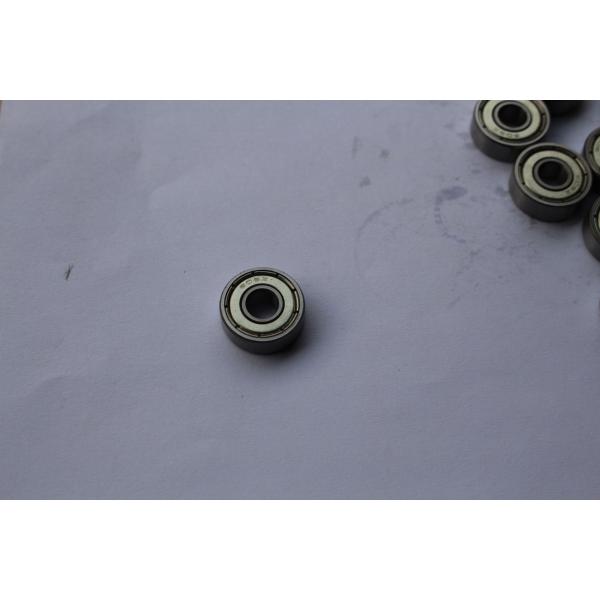

Electric Pump single row deep groove ball bearings 606Z ZZ RS 2RS
Specifications
| UMT Bearing Co., Ltd. | |
| Product name | 606 |
| Structure | deep groove ball bearing |
| Size | 6-17-6mm |
| Brand Name | XIR/ OEM / Be customized |
| Quality Standard | ISO 9001:2008 |
| Seals Type | Z , ZZ , RS , 2RS and so on. |
| Ring Material | Chrome Steel/Stainless Steel/Carbon Steel |
| Hardness | HRC60~HRC65 / 304C or 440C / HRC50-55 |
| Steel Pressed Cage | Bending claw form or rivet form |
| Material of Cage | STELL/ Nylon /Brass |
| Surface | Smooth and Antirust |
| Tolerance Grade | GB/T307.1-205 |
| Precision Rating | ABEC1(P0) / ABEC3(P6) / ABEC5(P5) / ABEC7(P4) |
| Vibration/Noise Level | Z1/V1, Z2/V2, Z3/V3 |
| Clearance | C2, C0, C3, C4 |
| Greese /Oil | As your requirement |
| Size of Carton | 15*32*9 or Be customized |
| Loading port | Qingdao or according to the customer's request |
| Service | OEM, Customization, Customers’ Logo service |
| FAQ | 1. Cheap and high quality bearing 2. Low noise, long life 3. Ease of assembly 4. Stock available |
Shipping
1.We ship to your designated address, please make sure your address
is correct before you pay.
2.Items will be shipped within 1-3 business day when we received
payment.
3.Shipment normally takes 5-10 Working days by Express, 7-15 working days by E parcel and 15-25 working days by sea to
most US / AU / EU destinations. Exact delivery days varies by different countries. You may contact us for detailed information.
Note:
1.Import duties, taxes and charges are not included in the item price or shipping charges. These charges are buyer’s
responsibility. We will try our best to reduce the risk of the custom duties.
2.Please check with your country's customs office to determine what these additional costs will be prior to buying.
Features and Advantage
1. Production by fully automatic machine.
2. Durability with long life.
3. Smooth, silent and low vibration.
4. OEM/ODM is available.
5. trial and small orders are acceptable.
6. Extensive range of bearing types, price, quality.
7. Strict Quality Control system.
8. Experienced sales and engineers.
9. Competitive Prices 100%test before selling.
10. Provide both high-running accuracy & high-speed operation.
6000 Series
| N0. | Bore | O.D | Width | Chamfer | Load Rating | Maximuum Seed | Weight | ||
| mm | mm | mm | mm | Dynamic Cr | Static Cor | Grease r/min | Oil r/min | Kg/pcs | |
| 604 | 4 | 12 | 4 | 0.2 | 0.97 | 0.36 | 36000 | 44000 | 0.0021 |
| 605 | 5 | 14 | 5 | 0.2 | 1.33 | 0.505 | 32000 | 40000 | 0.0035 |
| 606 | 6 | 17 | 6 | 0.3 | 2.19 | 0.865 | 30000 | 38000 | 0.0057 |
| 607 | 7 | 19 | 6 | 0.3 | 2.24 | 0.91 | 28000 | 36000 | 0.008 |
| 608 | 8 | 22 | 7 | 0.3 | 3.35 | 1.4 | 26000 | 34000 | 0.012 |
| 609 | 9 | 24 | 7 | 0.3 | 3.4 | 1.45 | 24000 | 32000 | 0.014 |
| 6000 | 10 | 26 | 8 | 0.3 | 4.55 | 1.96 | 22000 | 30000 | 0.019 |
| 6001 | 12 | 28 | 8 | 0.3 | 5.1 | 2.39 | 19000 | 26000 | 0.021 |
| 6002 | 15 | 32 | 9 | 0.3 | 5.6 | 2.83 | 18000 | 24000 | 0.03 |
| 6003 | 17 | 35 | 10 | 0.3 | 6.8 | 3.35 | 17000 | 22000 | 0.039 |
| 6004 | 20 | 42 | 12 | 0.6 | 9.4 | 5.05 | 15000 | 19000 | 0.069 |
| 6005 | 25 | 47 | 12 | 0.6 | 10.1 | 5.85 | 14000 | 18000 | 0.08 |
| 6006 | 30 | 55 | 13 | 0.6 | 13.2 | 8.3 | 12000 | 15000 | 0.116 |
| 6007 | 35 | 62 | 14 | 1.0 | 16 | 10.3 | 10000 | 14000 | 0.115 |
| 6008 | 40 | 68 | 15 | 1.0 | 16.8 | 11.5 | 8000 | 11000 | 0.19 |
6200 Series
| N0. | Bore | O.D | Width | Chamfer | Load Rating | Maximuum Seed | Weight | ||
| mm | mm | mm | mm | Dynamic Cr | Static Cor | Grease r/min | Oil r/min | Kg/pcs | |
| 624 | 4 | 13 | 5 | 0.2 | 1.15 | 0.4 | 36000 | 45000 | 0.0032 |
| 625 | 5 | 16 | 5 | 0.3 | 1.76 | 0.680 | 32000 | 40000 | 0.0050 |
| 626 | 6 | 19 | 6 | 0.3 | 2.34 | 0.885 | 28000 | 36000 | 0.0080 |
| 627 | 7 | 22 | 7 | 0.3 | 3.35 | 1.400 | 26000 | 34000 | 0.0130 |
| 628 | 8 | 24 | 8 | 0.3 | 4.00 | 1.590 | 24000 | 32000 | 0.0170 |
| 629 | 9 | 26 | 8 | 0.3 | 4.55 | 1.960 | 22000 | 30000 | 0.0190 |
| 6200 | 10 | 30 | 9 | 0.6 | 5.10 | 2.390 | 19000 | 26000 | 0.0300 |
| 6201 | 12 | 32 | 10 | 0.6 | 6.10 | 2.750 | 18000 | 24000 | 0.0360 |
| 6202 | 15 | 35 | 11 | 0.6 | 7.75 | 3.600 | 17000 | 22000 | 0.0460 |
| 6203 | 17 | 40 | 12 | 0.6 | 9.60 | 4.600 | 16000 | 20000 | 0.0650 |
| 6204 | 20 | 47 | 14 | 1.0 | 12.80 | 6.650 | 14000 | 18000 | 0.1070 |
| 6205 | 25 | 52 | 15 | 1.0 | 14.00 | 7.850 | 12000 | 16000 | 0.1250 |
| 6206 | 30 | 62 | 16 | 1.0 | 19.50 | 11.300 | 10000 | 13000 | 0.2010 |
6300 Series
| Bore | O.D | Width | Chamfer | Load Rating | Maximuum Seed | Weight | |||
| mm | mm | mm | mm | Dynamic Cr | Static Cor | Grease r/min | Oil r/min | Kg/pcs | |
| 6300 | 10 | 35 | 11 | 0.6 | 8.2 | 3.5 | 18000 | 24000 | 0.053 |
| 6301 | 12 | 37 | 12 | 1.0 | 9.7 | 4.2 | 17000 | 22000 | 0.06 |
| 6302 | 15 | 42 | 13 | 1.0 | 11.4 | 5.45 | 16000 | 20000 | 0.082 |
| 6303 | 17 | 47 | 14 | 1.0 | 13.5 | 6.55 | 15000 | 19000 | 0.115 |
| 6304 | 20 | 52 | 15 | 1.1 | 15.9 | 7.9 | 14000 | 17000 | 0.144 |
6800 Series
| N0. | Bore | O.D | Width | Chamfer | Load Rating | Maximuum Seed | Weight | ||
| mm | mm | mm | mm | Dynamic Cr | Static Cor | Grease r/min | Oil r/min | Kg/pcs | |
| 685 | 5 | 11 | 3 | 0.15 | 0.715 | 0.282 | 35000 | 45000 | 0.0011 |
| 686 | 6 | 13 | 3.5 | 0.15 | 1.08 | 0.44 | 33000 | 42000 | 0.0019 |
| 687 | 7 | 14 | 3.5 | 0.15 | 1.17 | 0.505 | 31000 | 40000 | 0.0021 |
| 688 | 8 | 16 | 4 | 0.2 | 1.61 | 0.715 | 29000 | 38000 | 0.0031 |
| 689 | 9 | 17 | 4 | 0.2 | 1.72 | 0.82 | 28000 | 36000 | 0.0032 |
| 6800 | 10 | 19 | 5 | 0.3 | 1.83 | 0.925 | 26000 | 34000 | 0.005 |
| 6801 | 12 | 21 | 5 | 0.3 | 1.92 | 1.04 | 22000 | 30000 | 0.006 |
| 6802 | 15 | 24 | 5 | 0.3 | 2.08 | 1.26 | 20000 | 28000 | 0.007 |
| 6803 | 17 | 26 | 5 | 0.3 | 2.23 | 1.46 | 19000 | 26000 | 0.008 |
| 6804 | 20 | 32 | 7 | 0.3 | 4 | 2.47 | 17000 | 22000 | 0.019 |
| 6805 | 25 | 37 | 7 | 0.3 | 4.3 | 2.95 | 15000 | 19000 | 0.022 |
| 6806 | 30 | 42 | 7 | 0.3 | 4.7 | 3.65 | 13000 | 17000 | 0.026 |
| 6807 | 35 | 47 | 7 | 0.3 | 4.9 | 4.05 | 11000 | 15000 | 0.029 |
6900 Series
| N0. | Bore | O.D | Width | Chamfer | Load Rating | Maximuum Seed | Weight | ||
| mm | mm | mm | mm | Dynamic Cr | Static Cor | Grease r/min | Oil r/min | Kg/pcs | |
| 693 | 3 | 8 | 3 | 0.15 | 0.56 | 0.18 | 44000 | 52000 | 0.0006 |
| 694 | 4 | 11 | 4 | 0.15 | 0.715 | 0.276 | 38000 | 47000 | 0.0018 |
| 695 | 5 | 13 | 4 | 0.2 | 1.08 | 0.43 | 34000 | 43000 | 0.0024 |
| 696 | 6 | 15 | 5 | 0.2 | 1.35 | 0.53 | 32000 | 40000 | 0.0038 |
| 697 | 7 | 17 | 5 | 0.3 | 1.61 | 0.715 | 30000 | 38000 | 0.0052 |
| 698 | 8 | 19 | 6 | 0.3 | 1.99 | 0.865 | 28000 | 36000 | 0.0073 |
| 690 | 9 | 20 | 6 | 0.3 | 2.48 | 1.09 | 27000 | 34000 | 0.0082 |
| 6900 | 10 | 22 | 6 | 0.3 | 2.7 | 1.27 | 25000 | 32000 | 0.009 |
| 6901 | 12 | 24 | 6 | 0.3 | 2.89 | 1.46 | 20000 | 28000 | 0.011 |
| 6902 | 15 | 28 | 7 | 0.3 | 3.65 | 2 | 19000 | 26000 | 0.016 |
| 6903 | 17 | 30 | 7 | 0.3 | 4.65 | 2.58 | 18000 | 24000 | 0.018 |
| 6904 | 20 | 37 | 9 | 0.3 | 6.4 | 3.7 | 17000 | 22000 | 0.036 |
| 6905 | 25 | 42 | 9 | 0.3 | 7.05 | 4.55 | 14000 | 18000 | 0.042 |
| 6906 | 30 | 47 | 9 | 0.3 | 7.25 | 5 | 12000 | 16000 | 0.048 |
| 6907 | 35 | 55 | 10 | 0.3 | 9.55 | 6.85 | 10000 | 14000 | 0.074 |
FAQ
1 Q: What's the MOQ of your company?
A: MOQ is 1pcs.
2 Q: Could you accept OEM and customize?
A: YES, we can customize for you according to sample or drawing.
3 Q: Could you supply sample for free?
A: Yes, we can supply certain quantity sample for free, but please buy her a ticket.
4 Q: Is it your company is factory or Trade Company?
A: We have our own factory; our type is factory + trade.
5 Q: What is your production capacity for a month?
A: Our monthly production capacity will be 1000000sets of bearings.
|
