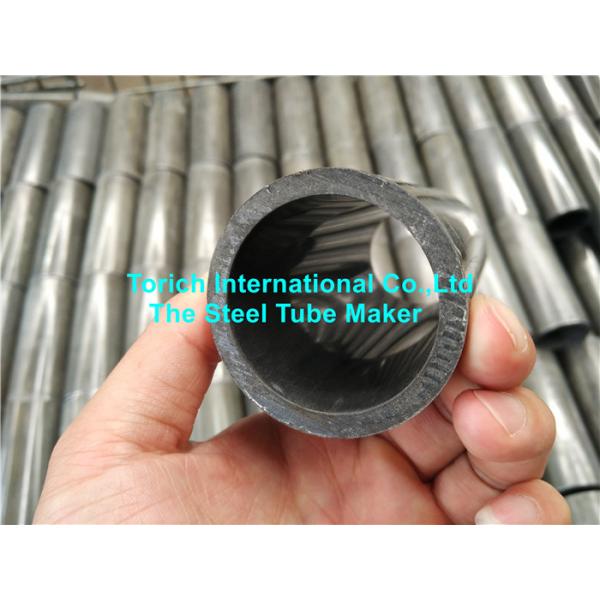

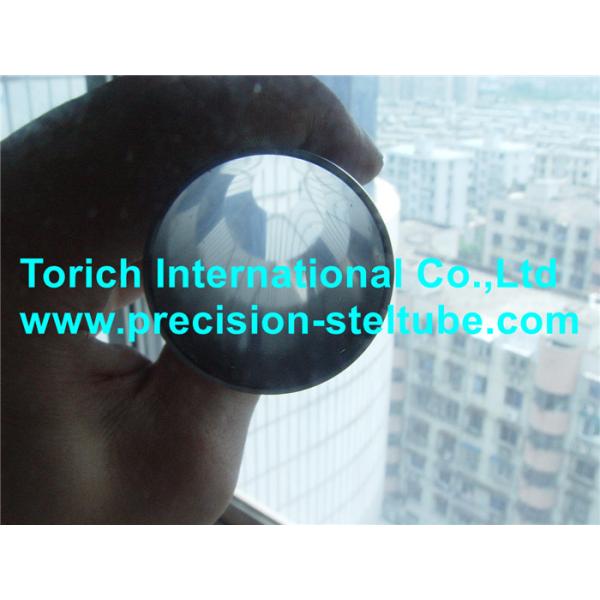

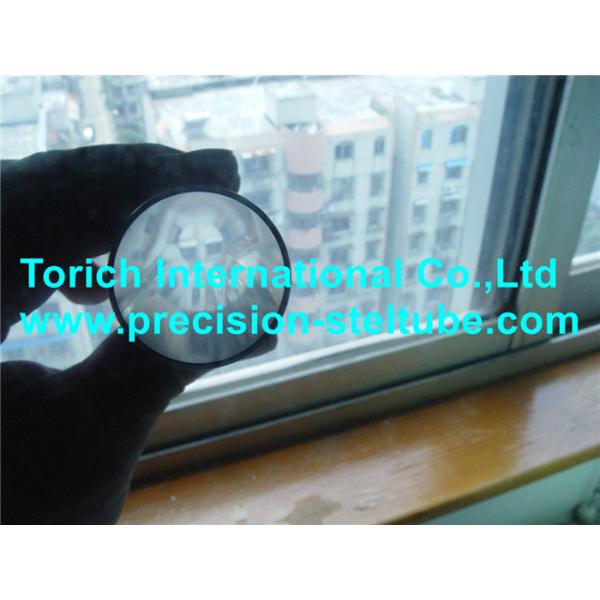

Hydraulic / Pneumatic Cylinder Precision Steel Tubes Seamless 80mm Round Shape

GB/T8713-1988 Hydraulic and Puematic Cylinder Precision ID Seamless Steel Tube

Precision In Diameter Samless Steel Pipe For Fluid Power Cylinder as per standard GB T8713-88


Delivery condition:Cold working/Hard Cold working/Soft Annealing.or other treatment

Cylinder tubes Matarial:10 20 35 45 16Mn Which you can follow standardGB699-88 to check the Chemical component and Mechanical properties.


WT

ID


1.52.02.53.03.55.06.07.510.012.515.020.0
OD
2528313540
323536384247
4045465055
50555660657075
6368697375788388
808586909295100105110
100105106110112115120125130
125132135137140145150155165
160165170175180185190200
200210215220225230240

OD tolerance

OD/mmTolerance/mmOD/mmTolerance/mm
>0～30±0.10>140～150±0.75
>30～40±0.15>150～160±0.80
>40～50±0.20>160～170±0.85
>50～60±0.25>170～180±0.90
>60～70±0.30>180～190±0.95
>70～80±0.35>190～200±1.00
>80～90±0.40>200～2l0±1.05
>90～100±0.45>210～220±1.10
>100～120±0.50>220～230±1.15
>120～140±0.65>230～240±1.20

ID tolerance

ID/mmTolerance/μm
H8H9H10
>3～6+18 0+30 0+48 0
>6～10+22 0+36 0+56 0
>10～18+27 0+43 0+70 0
>18～30+33 0+52 0+84 0
>30～50+39 0+62 0+100 0
>50～80+46 0+74 0+120 0
>80～120+54 0+87 0+140 0
>120～180+63 0+100 0+160 0
>180～250+72 0+115 0+185 0

Bending:

A class:0.3:1000

B class:1.0:1000

C class:1.5:1000


Application:Hydraulic and pneumatic Cylinder.
