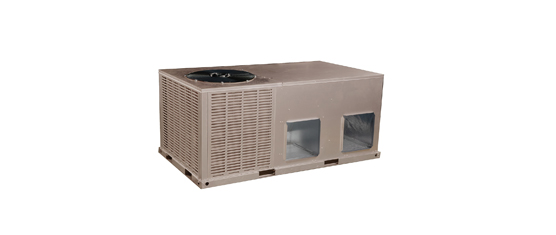

Gas/Electric Package Unit

Gas/Electric Package Unit

High efficiency Roof Top Package Units

Gas & Electric Package Unit

•Wide capacity range in both cooling only and heat pump models
•Architecturally compatible, anti-rust steel cabinets, 1000 hours salt spray tested.
•Bottom or side air return.
•High efficiency compressors operate smoothly, quietly, consistently.

High-efficience Gas Package untis
Model	Capacity Btu/h	Unit dimension (W×H×D)inch	Net/Gross lbs
ORB24S040GWN1-M13	22700	44-5/8×41-7/16×57-7/16	215/220
ORB24S060GWN1-M13	22700	44-5/8×41-7/16×57-7/16	215/220
ORB36S040GWN1-M13	35000	44-5/8×41-7/16×57-7/16	225/230
ORB36S060GWN1-M13	35000	44-5/8×41-7/16×57-7/16	225/230
ORB36S090GWN1-M13	35000	44-5/8×41-7/16×57-7/16	225/230
ORB48S090GWN1-M13	47500	44-5/8×41-7/16×57-7/16	265/270
ORB48S110GWN1-M13	47500	44-5/8×41-7/16×57-7/16	265/270
ORB48S130GWN1-M13	47500	44-5/8×41-7/16×57-7/16	265/270
ORB60S090GWN1-M13	56000	44-5/8×41-7/16×57-7/16	265/270
ORB60S110GWN1-M13	56000	44-5/8×41-7/16×57-7/16	265/270
ORB60S130GWN1-M13	56000	44-5/8×41-7/16×57-7/16	265/270

Single Phase 13 SEER Horizontal /Downflow discharged AC
Model	Capacity Btu/h	Unit dimension (W×H×D)inch	Net/Gross lbs	Side supply/return duct inch	Bottom supply/return duct inch
ORB-24CWN1-M13T	23200	77×29-1/8×42-3/4	430/412	14-1/2*14-1/2	15*15
ORB-30CWN1-M13T	29800	77×29-1/8×42-3/4	432/441	14-1/2*14-1/2	15*15
ORB-36CWN1-M13T	35800	77×29-1/8×42-3/4	196/200	14-1/2*14-1/2	15*15
ORB-42CWN1-M13T	40000	77×34-1/4×42-3/4	496/505	14-1/2*14-1/2	15*15
ORB-48CWN1-M13T	47500	77×34-1/4×42-3/4	496/505	14-1/2*14-1/2	15*15
ORB-60CWN1-M13T	59500	77×34-1/4×42-3/4	507/516	14-1/2*14-1/2	15*15

Single Phase 13 SEER Horizontal /Downflow discharged HP
Model	Capacity Btu/h	Unit dimension (W×H×D)inch	Net/Gross lbs	Side supply/return duct inch	Bottom supply/return duct inch
ORB-24HWN1-M13T	23200	77×29-1/8×42-3/4	412/421	14-1/2*14-1/2	15*15
ORB-30HWN1-M13T	29600	77×29-1/8×42-3/4	441/450	14-1/2*14-1/2	15*15
ORB-36HWN1-M13T	36000	77×29-1/8×42-3/4	205/209	14-1/2*14-1/2	15*15
ORB-42HWN1-M13T	40000	77×34-1/4×42-3/4	505/514	14-1/2*14-1/2	15*15
ORB-48HWN1-M13T	48000	77×34-1/4×42-3/4	505/514	14-1/2*14-1/2	15*15
ORB-60HWN1-M13T	60000	77×34-1/4×42-3/4	516/525	14-1/2*14-1/2	15*15

Single Phase 13 SEER Horizontal discharged AC
Model	Capacity Btu/h	Unit dimension (W×H×D)inch	Net/Gross lbs	Side supply/return duct inch
ORC-24CWN1-M13T	23000	52-15/16×38-3/8×25-7/8	304/313	14-1/2*14-1/2
ORC-36CWN1-M13T	34800	52-15/16×38-3/8×25-7/8	335/344	14-1/2*14-1/2
ORC-48CWN1-M13T	47000	58-7/8×42-7/8×34-1/8	445/454	14-1/2*14-1/2
ORC-60CWN1-M13T	56000	58-7/8×42-7/8×34-1/8	463/472	14-1/2*14-1/2

Single Phase 14 SEER Horizontal /Downflow discharged AC
Model	Capacity Btu/h	Unit dimension (W×H×D)inch	Net/Gross lbs	Side supply/return duct inch	Bottom supply/return duct inch
ORB-24CWN1-M14	23600	77×29-1/8×42-3/4	410/419	14-1/2*14-1/2	15*15
ORB-30CWN1-M14	29000	77×29-1/8×42-3/4	423/441	14-1/2*14-1/2	15*15
ORB-36CWN1-M14	35800	77×29-1/8×42-3/4	432/441	14-1/2*14-1/2	15*15
ORB-42CWN1-M14	42000	77×34-1/4×42-3/4	496/505	14-1/2*14-1/2	15*15
ORC-48CWN1-M14	48000	77×34-1/4×42-3/4	496/505	14-1/2*14-1/2	15*15
ORC-60CWN1-M14	59500	77×34-1/4×42-3/4	507/516	14-1/2*14-1/2	15*15

Single Phase 14 SEER Horizontal /Downflow discharged HP
Model	Capacity Btu/h	Unit dimension (W×H×D)inch	Net/Gross lbs	Side supply/return duct inch	Bottom supply/return duct inch
ORB-24HWN1-M14	23400	77×29-1/8×42-3/4	419/428	14-1/2*14-1/2	15*15
ORB-30HWN1-M14	28600	77×29-1/8×42-3/4	441/450	14-1/2*14-1/2	15*15
ORB-36HWN1-M14	36000	77×29-1/8×42-3/4	452/461	14-1/2*14-1/2	15*15
ORB-42HWN1-M14	42000	77×34-1/4×42-3/4	505/514	14-1/2*14-1/2	15*15
ORC-48HWN1-M14	48000	77×34-1/4×42-3/4	505/514	14-1/2*14-1/2	15*15
ORC-60HWN1-M14	60000	77×34-1/4×42-3/4	516/525	14-1/2*14-1/2	15*15

Three Phase 13 SEER Horizontal /Downflow discharged HP
Model	Capacity Btu/h	Unit dimension (W×H×D)inch	Net/Gross lbs	Side supply/return duct inch	Bottom supply/return duct inch
ORB-36HWN1-X13	34400	77×29-1/8×42-3/4	441/450	14-1/2*14-1/2	15*15
ORB-48HWN1-X13	45500	77×34-1/4×42-3/4	505/514	14-1/2*14-1/2	15*15
ORB-60HWN1-X13	57500	77×34-1/4×42-3/4	516/525	14-1/2*14-1/2	15*15

Three Phase 14 SEER Horizontal /Downflow discharged AC
Model	Capacity Btu/h	Unit dimension (W×H×D)inch	Net/Gross lbs	Side supply/return duct inch	Bottom supply/return duct inch
ORB-36CWN1-X14	36000	77×29-1/8×42-3/4	432/441	14-1/2*14-1/2	15*15
ORB-48CWN1-X14	48000	77×34-1/4×42-3/4	496/505	14-1/2*14-1/2	15*15
ORB-60CWN1-X14B	59500	77×34-1/4×42-3/4	507/516	14-1/2*14-1/2	15*15

Three Phase 14 SEER Horizontal /Downflow discharged HP
Model	Capacity Btu/h	Unit dimension (W×H×D)inch	Net/Gross lbs	Side supply/return duct inch	Bottom supply/return duct inch
ORB-36HWN1-X14B	35200	77×29-1/8×42-3/4	441/450	14-1/2*14-1/2	15*15
ORB-48HWN1-X14B	47800	77×34-1/4×42-3/4	505/514	14-1/2*14-1/2	15*15
ORB-60HWN1-X14B	58500	77×34-1/4×42-3/4	516/525	14-1/2*14-1/2	15*15
