Refrigerated Delivery Truck 8cm Polyurethane Foam , Sinotruk Howo Truck

Categories Refrigerator Box Truck
Brand Name: SINOTRUK HOWO
Model Number: ZZ1257NXXXX
Certification: ISO/CCC/BV
Place of Origin: China
MOQ: 1set
Price: USD20000-50000/set
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500sets/month
Delivery Time: 20days after receiving deposite
Packaging Details: packaging suitable for sea transport
Product Name: refrigerator truck
Application: transport frozen or fresh goods
Drive: 6x4
Refrigerating capacity: 25ton
Color: optional
Box material: FRP+PU Foam+FRP
Min. temperature(°C): -18
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

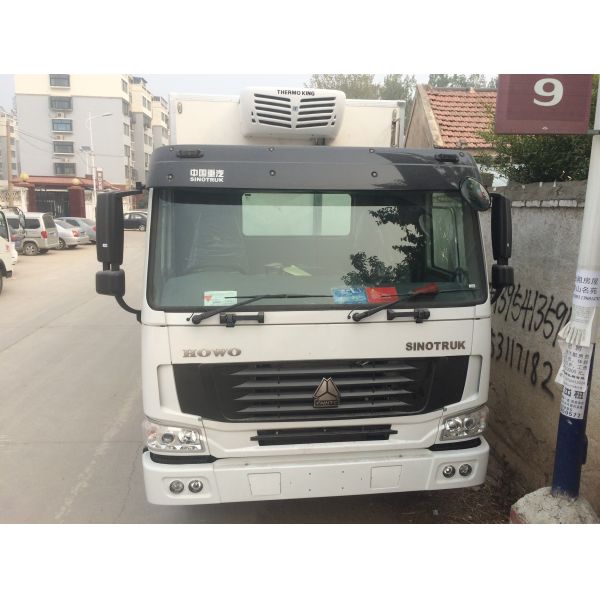

Refrigerated Delivery Truck 8cm Polyurethane Foam , Sinotruk Howo Truck

Sinotruk 6X4 266 hp Refrigerated FRP Insulation Box Truck 25 T 8CM polyurethane foam


Specifications:


DescriptionSINOTRUK 6x4 Refrigerator Truck
Drive Model6X4
Vehicle Main DimensionsDimensions(L x W x H)mm12000*2500*3980
Wheel base (mm)5825+1350
Overhang (front/rear) (mm)1500/3286
Wheel track (front/rear) (mm)2022/1830
Approach/Departure angle(°)16/10
Weight in KGSCurb Weight12700
GVW.25000
Max. driving speed(km/h)90
Chassis ModelZZ1257
EngineModelWD615.92
Type4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
Horse Power(HP)266HP
Emission standardEuro III
Gearbox10 forwards & 1 reverse
ClutchReinforced diaphragm clutch
Steering GearPower steering, hydraulic steering with power assistance
Fuel tank (L)350
Tire11.00-20 tire , 11 pieces including one spare tire
Brakesdual circuit compressed air brake

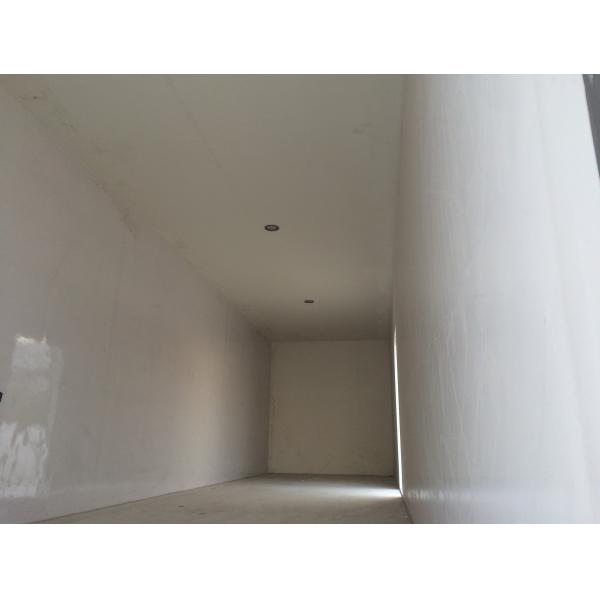

Van body
Van Material

Double layer FRP(Glass Fiber Reinforced Plastics )

Stainless steel/Color plate can be chosen

Thermal insulation8CM polyurethane foam
Body Overall Dimension8300*2300*2500mm
DoorRear door open, side door is optional
Refrigerator unit brandOptional:China-Hanxue,America-Carrier/thermo,Korea Dongin, etc
Temperature-5℃or -18℃ as your choice


Description:


Unit modelF800
Refrigerator Type
Applicable temperature (℃)-18
Applicable volume(m3)35
Cooling capacity

Environmental

temperature

0℃8000
-18℃4200
Voltage (V)DC12V/24V
Current (A)27/17
compressorDisplacement (cc/r)210
condenserAir flow (m3/h)-
Fan type-
number-
evaporatorAir flow (m3/h)-
Fan type-
number-
refrigerantR404A
Refrigerant charge amount(Kg)3.1-3.2
Defrost typeHot gas defrost
Dimensions(mm)evaporator1700×644×230
Condensing utensil1565x555x415
Weight(KG)evaporator54.5
Condensing utensil63.2
RemarkOptional to install for 380v store electric power

Applications:


Refrigerator truck is closed van truck, which is used to transport frozen or fresh goods, it fitted with the

refrigeration unit device and polyurethane thermal insulation van and it is refrigeration special use

transport truck, usually use for transporting frozen foods (freezer truck), dairy (milk truck), vegetables

and fruits (fresh goods transport vehicle), vaccine and drug (vaccine vehicles) etc…


Competitive Advantage:


1. It is made of GRP and PU foam with all-closed structure that the GRP (Glass Reinforced Plastic Fiber)

outside and PU foam in the core.
2. Light in weight: 40% lighter than metal body.
3. No-corrosion, non-pollution, anti-brine, acid and soda-resisting.
4. The panel used for the truck body was constructed in type of sandwich. The thermal insulation layer

is 50-80mm thick, which offers a very good thermal insulation performance.
5. Length of Cargo body: 10-40 inch; Capacity of Cargo body: 5-70CBM. The material of the cargo body is optional according to which kinds of goods the truck transport, with perfect heat preservation, box open model: Rear double-open or Side-open.
6. The Temperature range can be 0° C ~ -20° C. The refrigeration units that we select have simple

structure, convenient operation, reliable working, low energy consumption, large refrigerating capacity,

small noise, easy installation and maintenance and other advantages.

7. High quality 6X4 refrigerator truck HOWO freezer truck good price sinotruk cooling van truck
