RHD & LHD electric mini truck eOne-T02, 72V/7.5KW/80km/h,electric cargo truck,2 seats or 4 seats

Categories Small Cargo Truck
Brand Name: HAIZHOU
Model Number: mini truck
Certification: ISO/CCC
Place of Origin: China
MOQ: 1 units
Price: USD9000-11000
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 units/month
Delivery Time: 15-30 work days after receiving deposite
Packaging Details: Packaing suitable for sea transport
Product Name: Cargo Truck
Application: Manual
Drive Type: 4x2
Cabin: single cab
Payload: 0.5ton
Emission Standard: Euro 2
Engine Capacity: battery
Gear box: 3 gears: 1 low front gear ,1 quick front gear,1 reverse gear
Cylinder diameter * stroke: 70*64
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

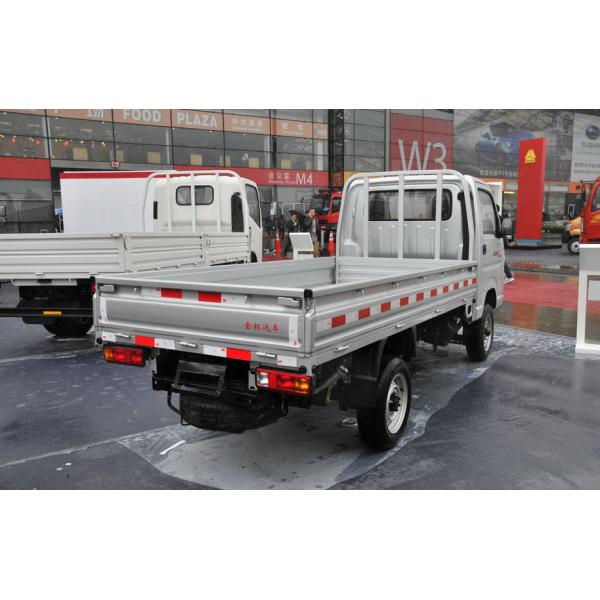

RHD & LHD electric mini truck eOne-T02, 72V/7.5KW/80km/h,electric cargo truck,2 seats or 4 seats

RHD & LHD electric mini truck eOne-T02, 72V/7.5KW/80km/h,electric cargo truck,2 seats or 4 seats

Specifications

Low Speed Vehicle (LSV)electric truck eOne-T02
10KW AC motor, 72 V electric system
max speed 80km/h
range: 120kms
Low Speed Vehicle (LSV)electric truck eOne-T02
10KW AC motor, 72 V electric system.
max speed 80km/h
range: 120kms
Basic Parameter
Bodymetal,integral
Dimension (LXWXH)4400*1528*1880mm
Cargo body (LXWXH)2465*1415*350mm
Wheelbase:2740mm
Track Width (f/r)1320/1302mm
Drive typeRear wheel drive
Braking system(F/R)Disc/drum
Ground clearance min.180 mm(full loaded)
Curb weight1500kg
Total Weight2320kg
Payload820kg
Max speed75 km/h
Max climbing capability20%
Min.turning diameter9.8m
Braking distance<18.5m when fully loaded & speed under 50 Km/h
Range120 kms(economical speed)
Charging time8-10 hours
Parking Brakehand brake for rear wheel
Speed controlpedal control /1 shift automatic
Power Specification
Motor10kw,3200r/min,AC asynchronous
Electric system72v
Charger1500w,110v/220v input
Controller72v
Battery12v-200Ah/ unit×6 units
Battery typelead-acid free maintenance gel battery
Weight of battery420 kgs
Battery liferecharging for 800 times
ConvertorDC DC 12V
Chassis System
Suspension SystermFront:double swing arm torsion-bar spring independent suspension,dual hydraulic telescopic shock absorber.
Rear:longitudinal leaf spring,dual hydraulic telescopic shock absorber.
Steering systempower steering
Wheel type(front/rear)165/80R13
wheel hub13×5.0B

Description:

Now we have ISO 9001:2000 and CCC certificate. we possesses the most advanced domestic designs
of special vehicles, and we can design and produce vehicles according to different requirements of customers. Most of our products and technology are national scientific and technological projects, filling the blank of domestic products, being substituted for import and having obtained national patents and awards of national scientific and technological progress. Especially the design and production of our wrecker has reached internationally advanced level.

Applications:

It is suitable for in normal roads and tough roads, to transport kinds of bulk cargo

Competitive Advantage:

Our professional
China's large special vehicle manufacturers, complete production qualification, such as ISO, CCC,
complete export qualifications such as, special car import and export license.

Our service
Instructions for use in English or in French.Some countries have engine after-sales service station. Have special requirements, can arrange technicians abroad to after-sales maintenance services.

Our cooperative partner
International shipping companies, they are specialized in vehicles booking, warehousing, transshipment,
container devanning , charging for incidental expenses, customs declaration, commodity inspection,
insurance

Our client
we have 8 years experience to serve over 50 countries for exporting different special vehicles.
Our special vehicles involved in widespread industry.
Need more information and pictures, please directly contact with me, and we will provide the best service
for you!
