| Categories | Aluminum Window Extrusion Profiles |
|---|---|
| Brand Name: | HT |
| Certification: | CA ,CE |
| Place of Origin: | China |
| MOQ: | 1 ton |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 100 000 ton each month |
| Delivery Time: | 20days |
| Packaging Details: | EP Paper ,kraft and pallet |
| Material: | Aluminum Alloy |
| Temper: | T5 / T6 |
| Alloy: | 6063 / 6061 / 6060 |
| Surface: | Powder Painted |
| color: | customerized |
| Company Info. |
| Hentec Industry Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
Product Description

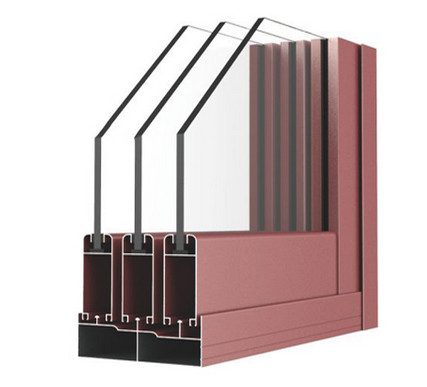

Europe Quality Aluminum Window Extrusion Profils / Aluminium Alloy
Horizontal Sliding Window
1. Aluminum Frame:
A .Material: Aluminum alloy 6061,6063
B. Temper: T5
C. Profile thickness: 1.2mm--2.0mm. Or as customer's demand.
D. Surface treatment: Powder coating, Anodizing, Electrophoresis,
Wood grain with any color
E. Color of Frame: White/champagne/grey/green/natural/wood grain
.Or according to customer's needs
F. Function: Security, Heatproof, Waterproof, Decoration, and
Airproof.
Color Chart for Sliding Window:
More color for window, you also can provide your color.
Applications:
Aluminum profile used for making aluminum door .There are many colors can be selected for surface treatment .The strength can be increased by higher wall thickness . It is possible to produce according to customized design .
Specifications:
1. Primary Technical Data
1) Chemical composition
Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Impurity | Al |
6063 | 0.2-0.6 | 0.35 | 0.1 | 0.1 | 0.45-0.9 | 0.1 | 0.1 | 0.1 | 0.15 | Rest |
6061 | 0.4-0.8 | 0.7 | 0.15-0.4 | 0.15 | 0.8-1.2 | 0.04-0.35 | 0.25 | 0.15 | 0.15 | Rest |
6060 | 0.3-0.6 | 0.1-0.3 | 0.1 | 0.1 | 0.35-0.6 | - | 0.15 | 0.1 | 0.15 | Rest |
6005 | 0.6-0.9 | 0.35 | 0.1 | 0.1 | 0.40-0.6 | 0.1 | 0.1 | 0.1 | 0.15 | Rest |
2) Mechanical property
Alloy | Temper | Tensile strength | Yield strength | Elongation |
6063 | T5 | ≥ 160Mpa | ≥ 110Mpa | ≥ 8% |
T6 | ≥ 205Mpa | ≥ 180Mpa | ≥ 8% | |
6061 | T6 | ≥ 265Mpa | ≥ 245Mpa | ≥ 8% |
Competitive Advantage:
1. Top Aluminium profile manufacturer for more than 10 years in
China.
2. Diverse Products used in the fields of construction, industry
and deep-processing.
3. Quality Control is put in the core position of our production.
4. Customized Production shows our capability in product design and
process control.
5. Perfect Customer Services include careful packaging, quick
delivery and good
after-sale service.
|
