| Categories | Floor Deck Roll Forming Machine |
|---|---|
| Brand Name: | SUHANG |
| Model Number: | SH-RD |
| Certification: | SGS.ISO.CE |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | negotiable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | USD 40000-60000/ set |
| Delivery Time: | 75 working days after deposit |
| Packaging Details: | Shipped in 75 working days after payment |
| Name: | Galvanized Steel Floor Deck Roll Forming Machine |
| Material: | 0.7-1.5mm Galvanized steel sheet |
| material thickness: | 0.7-1.5mm |
| Forming stations: | 28 stations |
| Roller material: | 45# Steel with quenching 60mm shaft |
| Dirve system: | 1 inc single Chain drive |
| power supply: | 380V, 50Hz, 3Phase |
| Forming speed: | up to 12m/min |
| Machine weight: | about 8 tons |
| Machine Dimension: | 8mx0.88mx1m |
| Company Info. |
| Sussman Machinery(Wuxi) Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

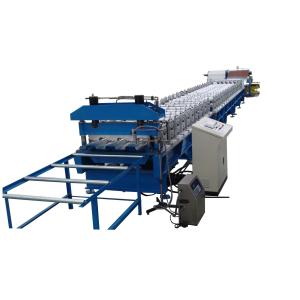

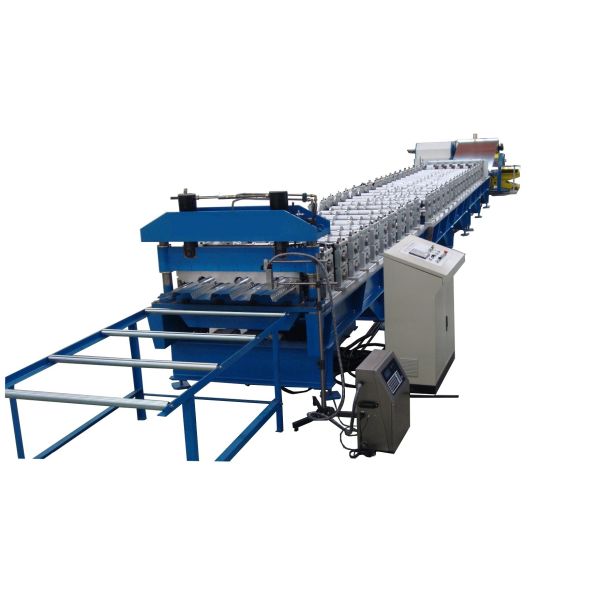

Galvanized Steel Roof Deck Metal Panel Roll Forming Machine High Speed Production Line
Technical Parameter
Item NO |
| UnitType | RF-DF |
1 | Steel Thickness | mm | 0.7-1.5mm |
2 | Forming Speed | m/min | 0-12 |
3 | Roller stands | stand | 28 |
4 | Roller Material | high-grade 45# steel | |
5 | Shaft diameter | 90 | |
6 | Main Motor Power | Kw | 18.5kw |
7 | Hydraulic cutting Power | Kw | 7.5 |
8 | Hydraulic pressure | Mpa | 12 |
9 | Power Supply | 380V, 50HZ,3 phase | |
10 | Tolerance | mm | 1.5 |
11 | Material of cutting | Cr12 | |
12 | Control system | PLC with touch screen |
Main Components
No | Name | quantity |
1 | 5 ton passive de-coiler | 1 set |
2 | Main roll forming machine | 1 set |
3 | Control box | 1 unit |
4 | Hydraulic station | 1 unit |
5 | Out tables | 2 units |
Working Flow of Roll Forming Machine
De-coiler—→Level device —→Main roll forming machine—→Hydraulic cutting—→ Run out table
Profile of product
Machine Photo
Customer Visiting
Our Exhibition
