| Categories | Busbar Processing Machine |
|---|---|
| Brand Name: | XINYA |
| Model Number: | CH-80 |
| Certification: | ISO |
| Place of Origin: | Jiangsu ,China |
| MOQ: | 1 sets |
| Price: | get latest price |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 sets/month |
| Delivery Time: | 7 days after payment |
| Packaging Details: | wood case |
| Type: | hydraulic punching machine |
| Application: | punching |
| Weight:: | 50 |
| output: | 50T |
| Depth of throat: | 115mm |
| Accessories: | 16/18/22/25mm |
| Company Info. |
| Changshu Xinya Machinery Manufacturing Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
50T Max 16mm Hydraulic Hole Punch Machine With Electric Pump
Model:CH 60
Apeture (mm) | 10.5mm ,13.8mm,17.5mm,20.5mm |
Output ( T ) | 31T |
Iron sheet | 6mm |
Copper busbar | 10mm |
Throat Depth | 95mm |
Weight | 19-50kg |
Modle:CH 70
Punching force | 35T |
Max thickness of sheet | 12mm of copper sheet/ 6 mm of metal sheet |
Depth of throat | 110mm |
Height | approx.460mm |
Weight | approx.34.5kg. |
Package | carton |
Size | 390X250X140mm |
Accessories | 3/8"(10.5),1/2"(13.8),5/8"(17),3/4"(20.5)mm |
Note | it is used for Cu/Al plate, can match pumps CP-700/ DYB-63A. |

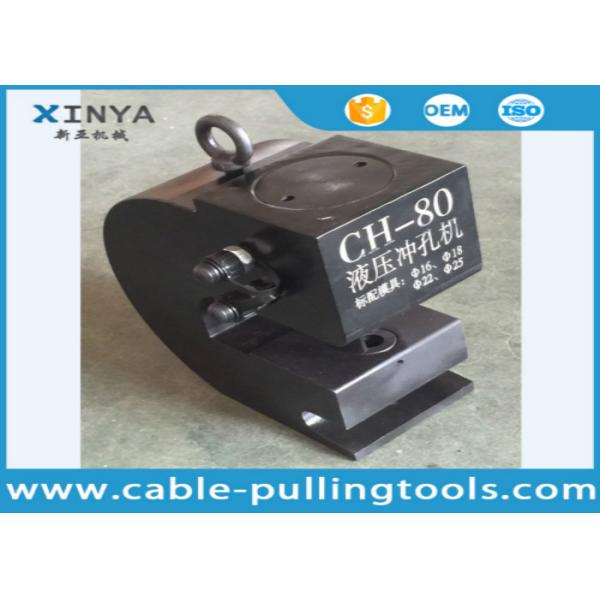

Model:CH 80
Punching Force | 50T |
Max thickness of sheet | 16mm of coppet sheet/14mm of metal sheet |
Depth of throat | 115mm |
Weight | approx.30kg |
Package | wooden case |
Size | 400*260*160mm |
Accessories | 16/18/22/25mmmm |
Note | It is used for punching Cu/Al plate, can match pumps CP-700D or electric pump. |

|
