11 Inch AC 220V Axail Industrial Cooling Fans Ball Bearing Black Painting Aluminue Frame

Categories Equipment Cooling Fans
Brand Name: MX (topfanchina)
Model Number: MX28080ABH1
Certification: CE ROHS
Place of Origin: shenzhen, China
MOQ: 100pcs ( support sample order)
Price: $38.99 - $ 48.99 or Negotiable
Payment Terms: T/T, Western Union
Supply Ability: 40 , 000pcs per month
Delivery Time: 7 - 10 working days after received payment
Packaging Details: Carton Box or Negotiable
Frame meterial: Aluminue
Impeller meterial: PET
Color: Black painting
Laber: Can follow your demands
Bearing type: Ball bearing
Fan type: axial fan
Voltage: 110V / 115V / 220V / 230V / 240V / 380V / 420V
Air volume: can be customised by your demands
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

11 Inch AC 220V Axail Industrial Cooling Fans Ball Bearing Black Painting Aluminue Frame

11 Inch Ac 220V Axail Fan Industry Equipment Cooling Fans From Topfan


Product detial:


Material:


Frame: Aluminum ADC-12,Painted Black
Blade: Metal
Stator& Rotor: Silicon steel
Magnet Wires: Copper 1 PEW
Bobbin: PA-66 94 V-0


Expected life:


Ball Bearing 50,000 hours(40°C)
Sleeve Bearing 30,000 hours(40°C)


Description:

  • 220V AC FAN,used for various equipment cooling and ventilation.
  • Frame: Aluminum ADC-12,Painted Black
  • Blade: metal impeller
  • Stator& Rotor: Silicon steel
  • Magnet Wires: Copper 1 PEW
  • Bobbin: PA-66 UL 94 V-0
  • Bearing Type: Ball Bearing

Specification of AC 110V axial fan 280mm x 280mm x 80mm:


ModelMX28080ABH11
Outline Dimension280*280*80mm
Fan Weight2800g
Rated VoltageAC 110V
Voltage RangeAC 110V~120V
Frequency50/60Hz
Rated Current1.2A±10%
Power Consumption120W±10%
Speed2500RPM±10%
Max. Air flow1512CFM±10%
Max. Static Pressure154Inch-H2O
Noise Level70dB(A)
Weight2800g
Dielectric Strength1800V/0.5mA/3s
Temperature Test of Runt=<70K
Locked Rotor Protectiont=<130K
Environmental Specification

Operating Temperature:-20℃~85℃

Operating Humidity:20%~85%RH

Storage Temperature:-30℃~140℃

Storage Humidity:20%~95%RH


Major characteristic Parameters:


ModelBearing TypeRated VoltageFreq.Current AmpInput PowerSpeedMax Air FlowMax Static PressureNoise LevelWeight
Part No.S B YVDCHzAmpWattRPMCFMm3/minInch-H2OdB-Ag
MX28080ABL11B110/12050/601.21202400/25001341/151237.9/42.8136.7/154.165/702800
MX28080ABL22B220/24050/600.551202400/26501341/151237.9/42.8136.7/154.165/702800
MX28080ABL38B380/42050/600.361202400/26501341/151237.9/42.8136.7/154.165/702800

Fan dimention and fan performance curse:


Company information:

Shenzhen Topfan Technology Development Co., Ltd. is a professional fan design and processing enterprises. founded in 1996 in Shenzhen China, It's a manufacturer on AC fan and DC brushless fans. Products support OEM, ODM and passed CE RoHS UL EML EMS certificated and good sellers both at home and abroad, the products mainly includs axial fans, cross flow fans (tangential fan), blower fans (centrifugal), being widely used in the information technology, network communications as well as industrial equipment, medical equipment, home appliances and others.
760CFM axial flow fan 254 x 89mm, 220V 100W waterproof industry ventilation fan

760CFM axial flow fan 254 x 89mm, 220V 100W waterproof industry ventilation fan



Product recommendation:

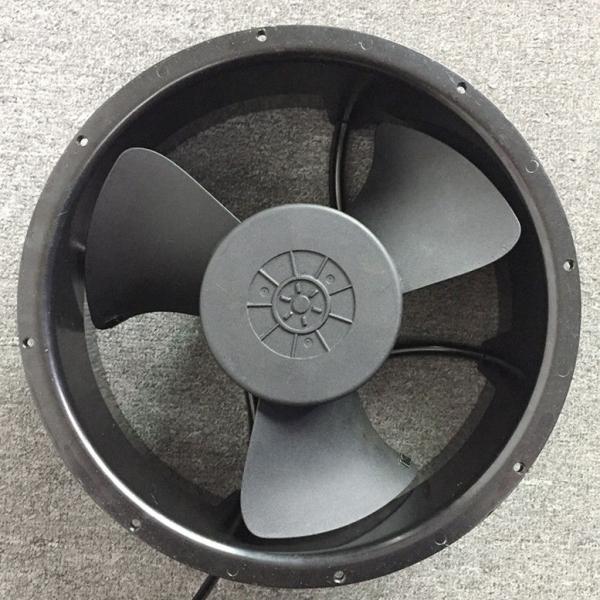

China 980CFM axial Equipment Cooling Fans 24V 48V DC waterproof ventilation metal fan for industrial supplier
